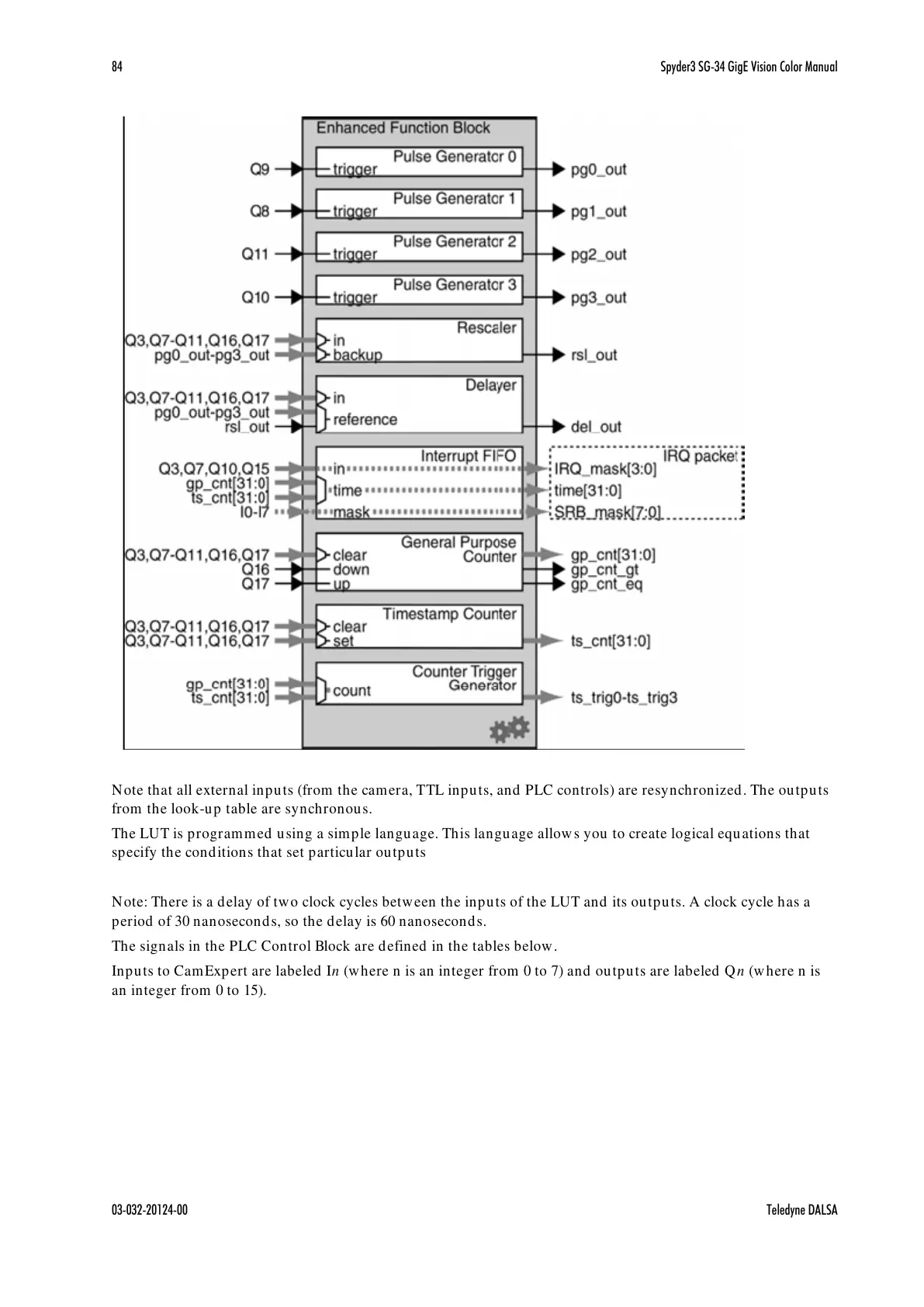

Note that all external inputs (from the camera, TTL inputs, and PLC controls) are resynchronized. The outputs
from the look-up table are synchronous.
The LUT is programmed using a simple language. This language allows you to create logical equations that
specify the conditions that set particular outputs
Note: There is a delay of two clock cycles between the inputs of the LUT and its outputs. A clock cycle has a
period of 30 nanoseconds, so the delay is 60 nanoseconds.
The signals in the PLC Control Block are defined in the tables below.
Inputs to CamExpert are labeled In (where n is an integer from 0 to 7) and outputs are labeled Qn (where n is
an integer from 0 to 15).
