28 Spyder3 SG-34 GigE Vision Color Manual
03-032-20124-00 Teledyne DALSA

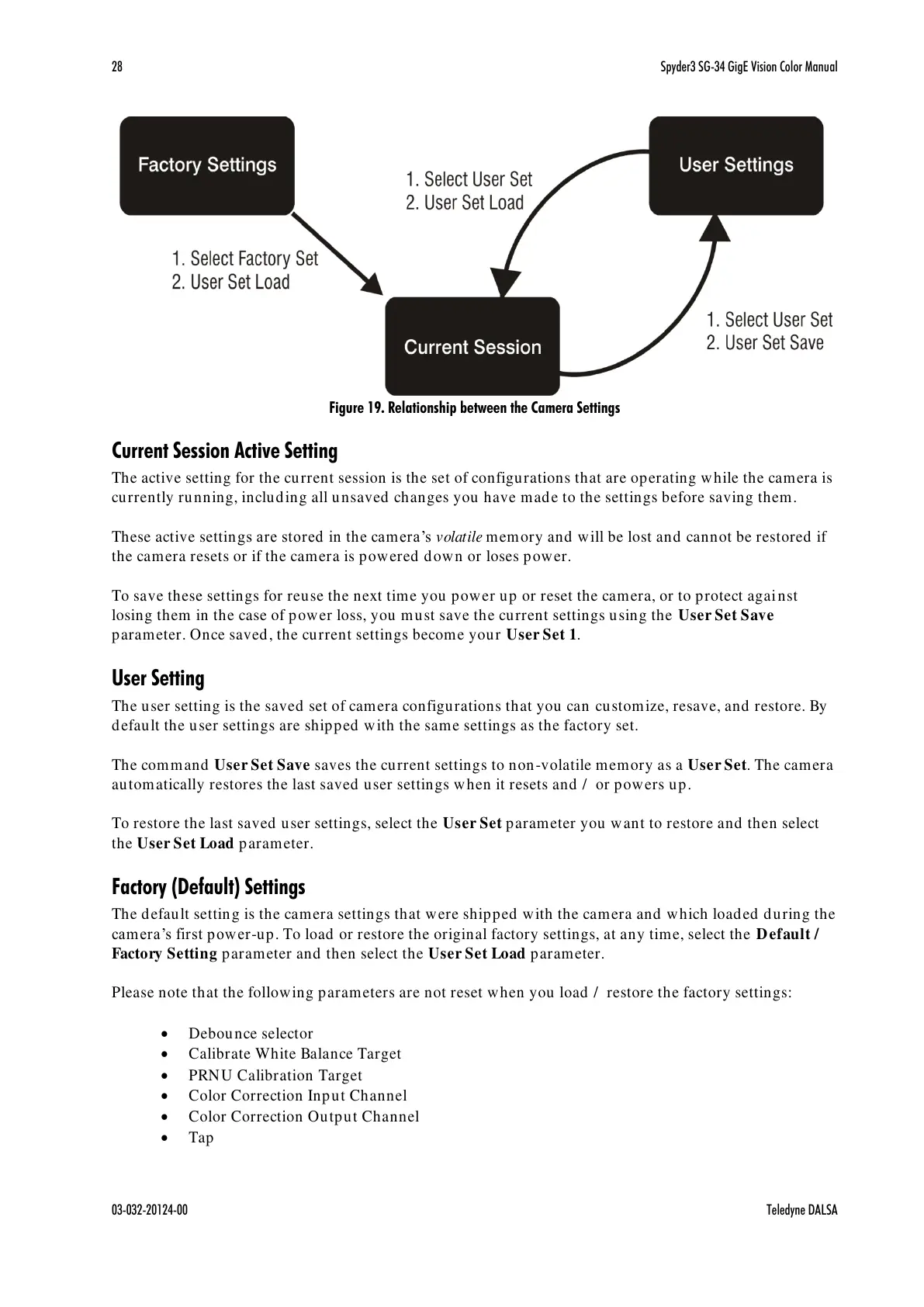

Figure 19. Relationship between the Camera Settings
Current Session Active Setting
The active setting for the current session is the set of configurations that are operating while the camera is
currently running, including all unsaved changes you have made to the settings before saving them.
These active settings are stored in the camera’s volatile memory and will be lost and cannot be restored if
the camera resets or if the camera is powered down or loses power.
To save these settings for reuse the next time you power up or reset the camera, or to protect against
losing them in the case of power loss, you must save the current settings using the User Set Save
parameter. Once saved, the current settings become your User Set 1.
User Setting
The user setting is the saved set of camera configurations that you can customize, resave, and restore. By
default the user settings are shipped with the same settings as the factory set.
The command User Set Save saves the current settings to non-volatile memory as a User Set. The camera
automatically restores the last saved user settings when it resets and / or powers up.
To restore the last saved user settings, select the User Set parameter you want to restore and then select
the User Set Load parameter.
Factory (Default) Settings
The default setting is the camera settings that were shipped with the camera and which loaded during the
cam era’s first p ow er-up. To load or restore the original factory settings, at any time, select the Default /
Factory Setting parameter and then select the User Set Load parameter.
Please note that the following parameters are not reset when you load / restore the factory settings:
Debounce selector
Calibrate White Balance Target
PRNU Calibration Target
Color Correction Input Channel
Color Correction Output Channel
Tap
