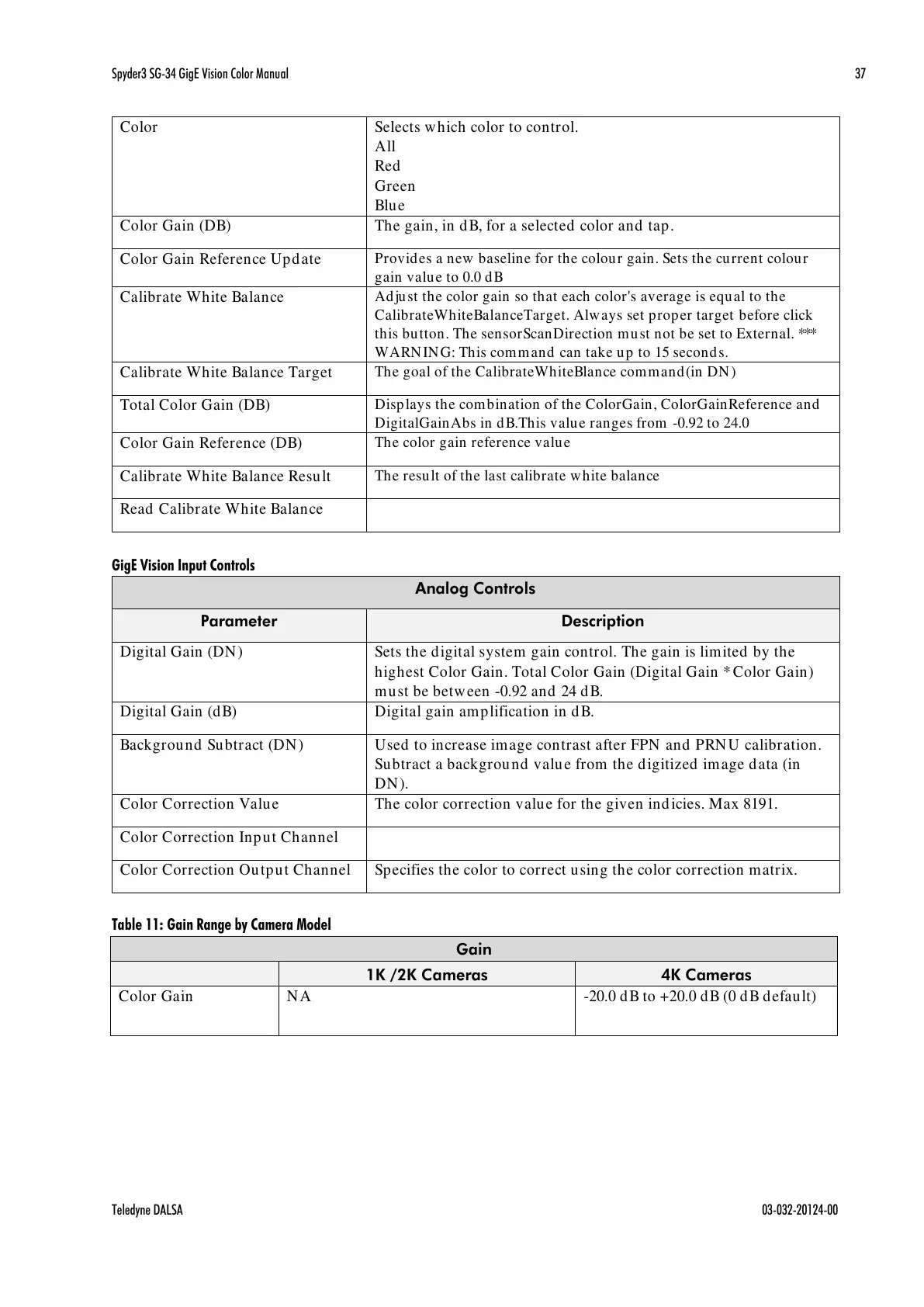

Dalsa Spyder3 SG-34 Series User Manual

Spyder3 SG-34 GigE Vision Color Manual 37
Teledyne DALSA 03-032-20124-00
Color
Selects which color to control.
All
Red
Green
Blue
Color Gain (DB)
The gain, in dB, for a selected color and tap.
Color Gain Reference Update
Provides a new baseline for the colour gain. Sets the current colour
gain value to 0.0 dB
Calibrate White Balance
Adjust the color gain so that each color's average is equal to the
CalibrateWhiteBalanceTarget. Always set proper target before click
this button. The sensorScanDirection must not be set to External. ***
WARNING: This command can take up to 15 seconds.
Calibrate White Balance Target
The goal of the CalibrateWhiteBlance command(in DN)
Total Color Gain (DB)
Displays the combination of the ColorGain, ColorGainReference and
DigitalGainAbs in dB.This value ranges from -0.92 to 24.0
Color Gain Reference (DB)
The color gain reference value
Calibrate White Balance Result
The result of the last calibrate white balance
Read Calibrate White Balance
GigE Vision Input Controls
Analog Controls
Parameter
Description
Digital Gain (DN)
Sets the digital system gain control. The gain is limited by the
highest Color Gain. Total Color Gain (Digital Gain * Color Gain)
must be between -0.92 and 24 dB.
Digital Gain (dB)
Digital gain amplification in dB.
Background Subtract (DN)
Used to increase image contrast after FPN and PRNU calibration.
Subtract a background value from the digitized image data (in
DN).
Color Correction Value
The color correction value for the given indicies. Max 8191.
Color Correction Input Channel
Color Correction Output Channel
Specifies the color to correct using the color correction matrix.
Table 11: Gain Range by Camera Model
Gain
1K /2K Cameras
4K Cameras
Color Gain
NA
-20.0 dB to +20.0 dB (0 dB default)
