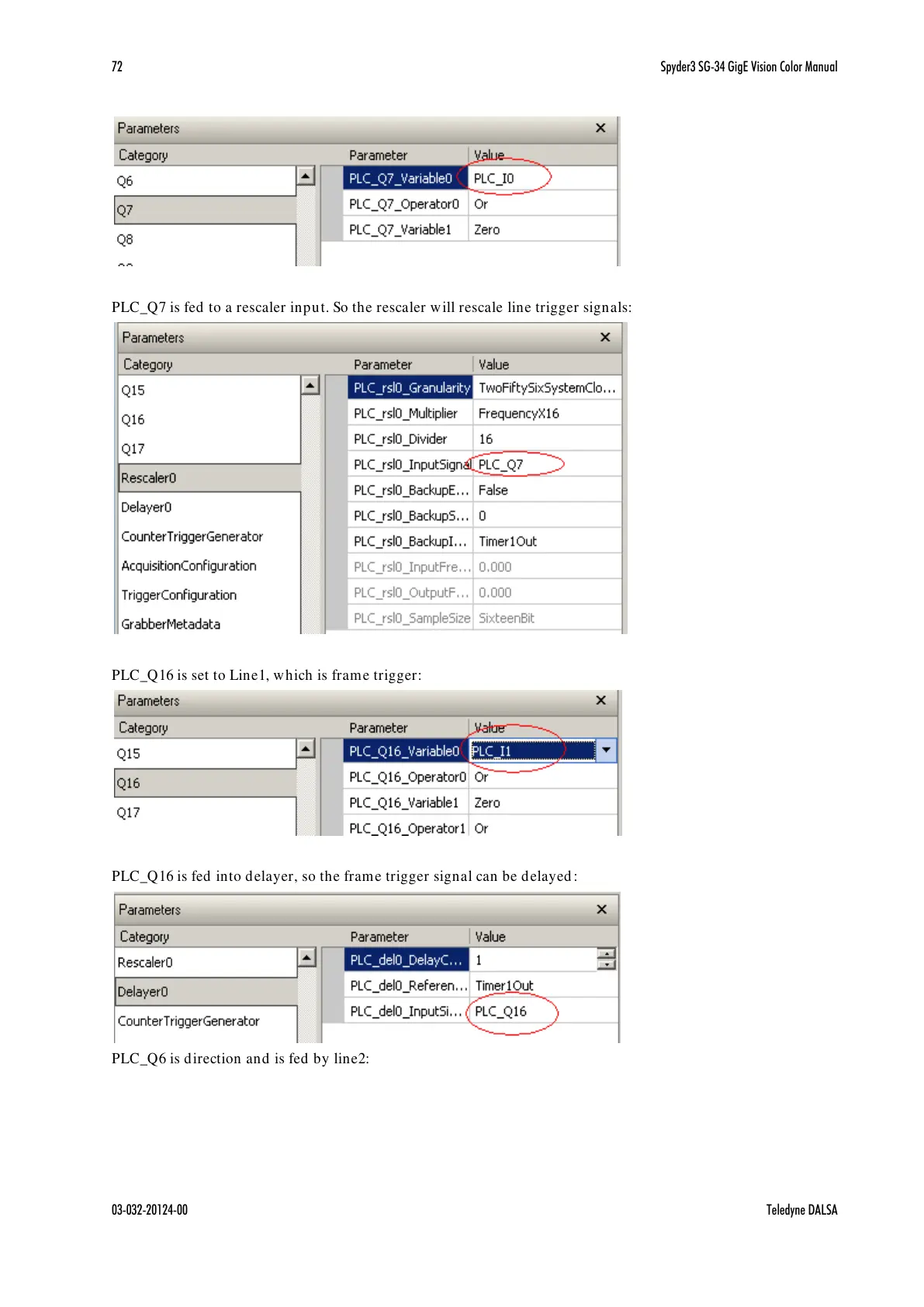

PLC_Q7 is fed to a rescaler input. So the rescaler will rescale line trigger signals:
PLC_Q16 is set to Line1, which is frame trigger:
PLC_Q16 is fed into delayer, so the frame trigger signal can be delayed:
PLC_Q6 is direction and is fed by line2:
