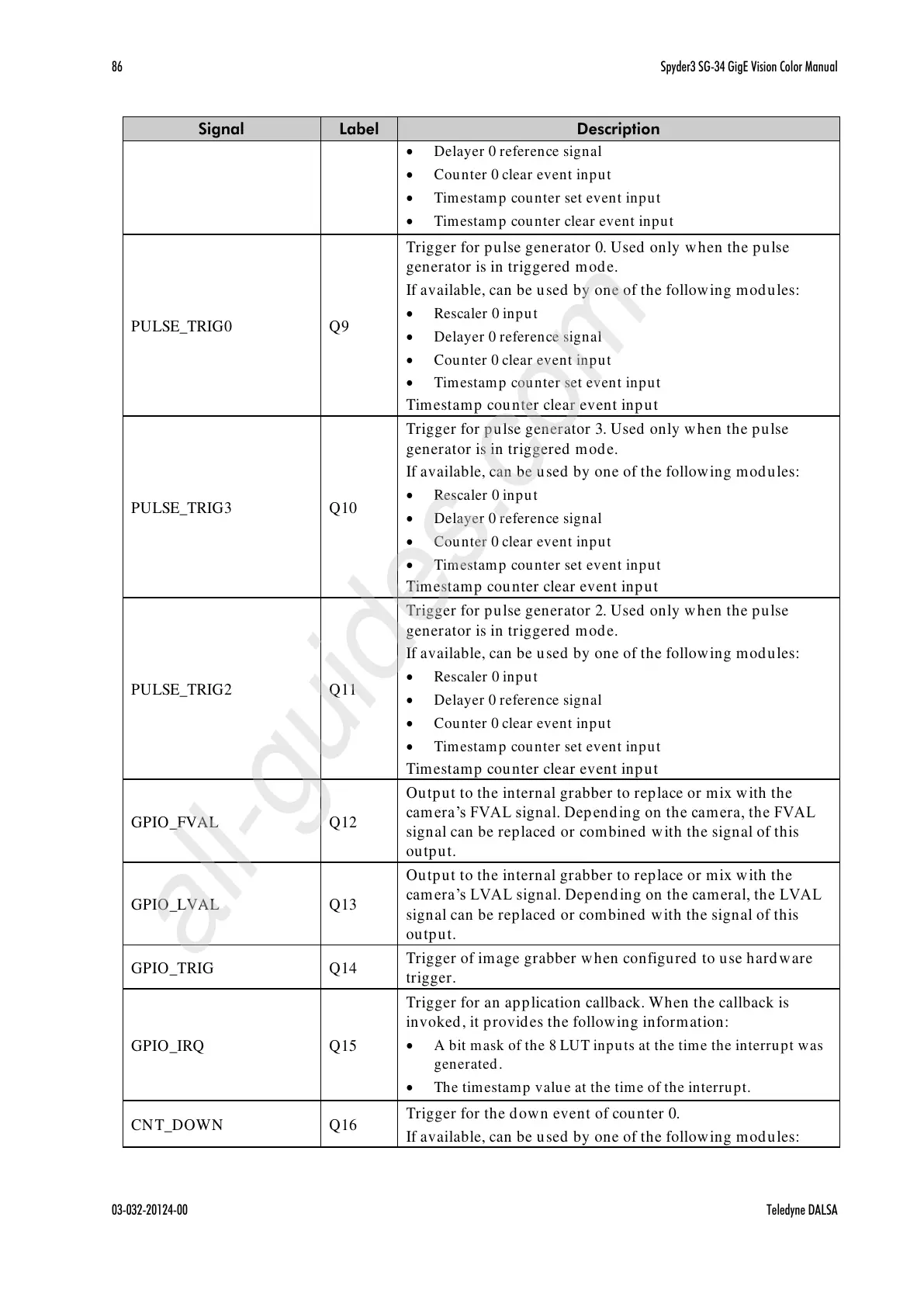

86 Spyder3 SG-34 GigE Vision Color Manual
03-032-20124-00 Teledyne DALSA
Delayer 0 reference signal
Counter 0 clear event input
Timestamp counter set event input
Timestamp counter clear event input
Trigger for pulse generator 0. Used only when the pulse
generator is in triggered mode.
If available, can be used by one of the following modules:
Rescaler 0 input
Delayer 0 reference signal
Counter 0 clear event input
Timestamp counter set event input
Timestamp counter clear event input
Trigger for pulse generator 3. Used only when the pulse
generator is in triggered mode.
If available, can be used by one of the following modules:
Rescaler 0 input
Delayer 0 reference signal
Counter 0 clear event input
Timestamp counter set event input
Timestamp counter clear event input
Trigger for pulse generator 2. Used only when the pulse
generator is in triggered mode.
If available, can be used by one of the following modules:
Rescaler 0 input
Delayer 0 reference signal
Counter 0 clear event input
Timestamp counter set event input
Timestamp counter clear event input
Output to the internal grabber to replace or mix with the
cam era’s FVAL signal. Depending on the cam era, the FVAL
signal can be replaced or combined with the signal of this
output.
Output to the internal grabber to replace or mix with the
cam era’s LVAL signal. Dep end ing on the cameral, the LVAL
signal can be replaced or combined with the signal of this
output.
Trigger of image grabber when configured to use hardware
trigger.
Trigger for an application callback. When the callback is
invoked, it provides the following information:
A bit mask of the 8 LUT inputs at the time the interrupt was
generated.
The timestamp value at the time of the interrupt.
Trigger for the down event of counter 0.
If available, can be used by one of the following modules:
