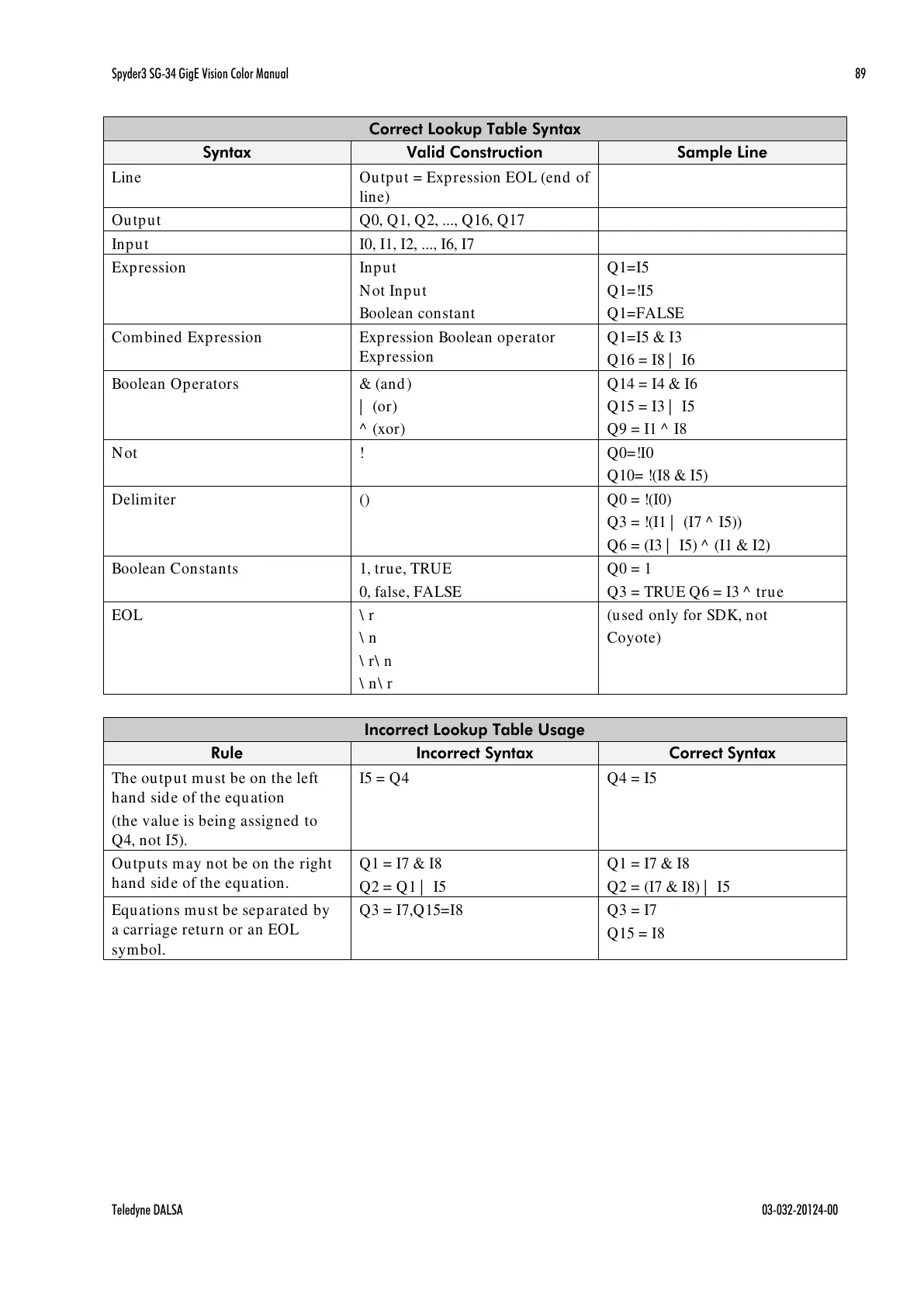

Spyder3 SG-34 GigE Vision Color Manual 89
Teledyne DALSA 03-032-20124-00
Correct Lookup Table Syntax
Syntax
Valid Construction
Sample Line
Line
Output = Expression EOL (end of
line)
Output
Q0, Q1, Q2, ..., Q16, Q17
Input
I0, I1, I2, ..., I6, I7
Expression
Input
Not Input
Boolean constant
Q1=I5
Q1=!I5
Q1=FALSE
Combined Expression
Expression Boolean operator
Expression
Q1=I5 & I3
Q16 = I8 | I6
Boolean Operators
& (and)
| (or)
^ (xor)
Q14 = I4 & I6
Q15 = I3 | I5
Q9 = I1 ^ I8
Not
!
Q0=!I0
Q10= !(I8 & I5)
Delimiter
()
Q0 = !(I0)
Q3 = !(I1 | (I7 ^ I5))
Q6 = (I3 | I5) ^ (I1 & I2)
Boolean Constants
1, true, TRUE
0, false, FALSE
Q0 = 1
Q3 = TRUE Q6 = I3 ^ true
EOL
\ r
\ n
\ r\ n
\ n\ r
(used only for SDK, not
Coyote)
Incorrect Lookup Table Usage
Rule
Incorrect Syntax
Correct Syntax
The output must be on the left
hand side of the equation
(the value is being assigned to
Q4, not I5).
I5 = Q4
Q4 = I5
Outputs may not be on the right
hand side of the equation.
Q1 = I7 & I8
Q2 = Q1 | I5
Q1 = I7 & I8
Q2 = (I7 & I8) | I5
Equations must be separated by
a carriage return or an EOL
symbol.
Q3 = I7,Q15=I8
Q3 = I7
Q15 = I8
