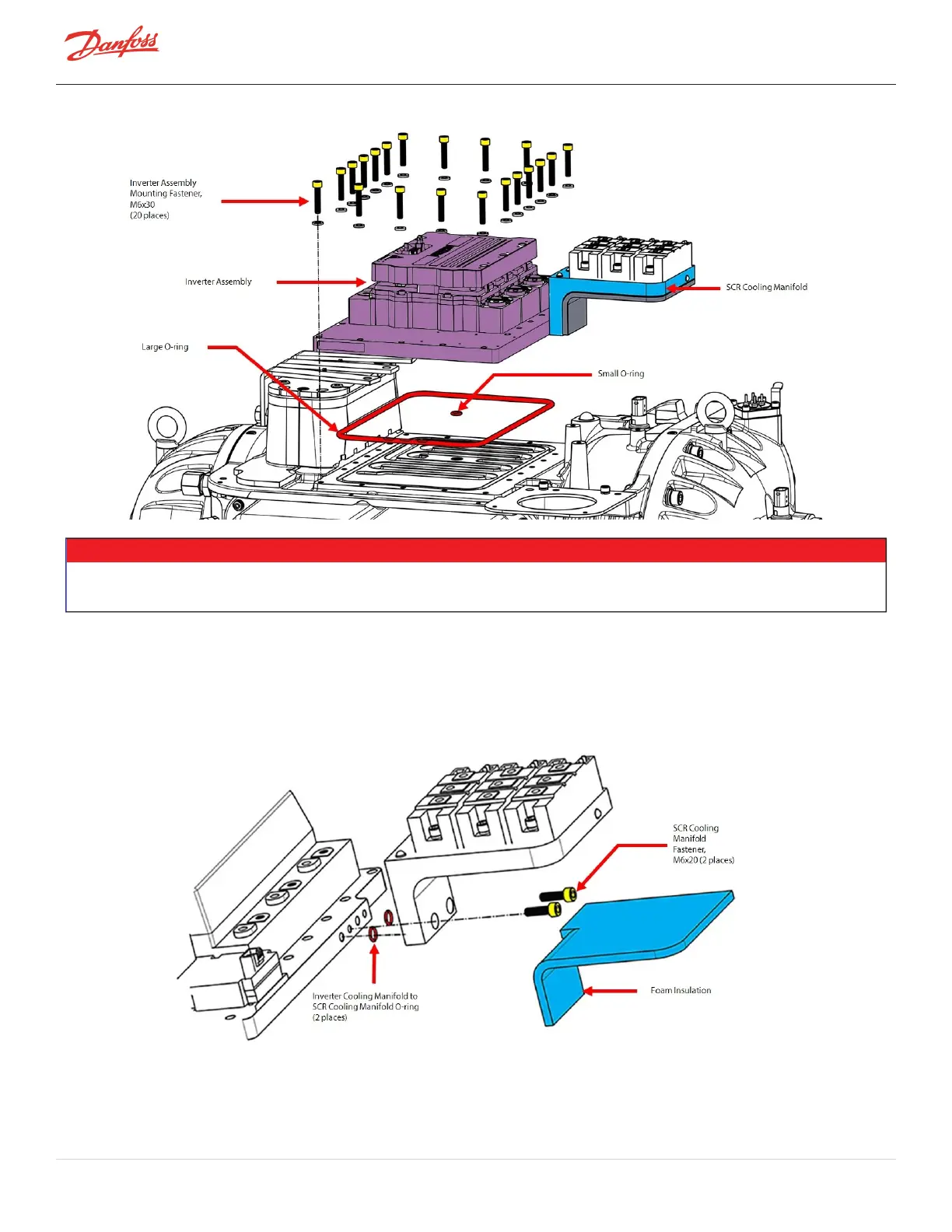

Figure 4-169 Inverter Assembly Removal - TTS300/TGS230
NOTE
Figure4-169InverterAssemblyRemoval-TTS300/TGS230showstheSCRsstillmountedonthecoolingplate.Itisrecommendedthatthey
areremovedpriortotheremovaloftheSCRCoolingManifold.

7. Carefullypeelbackthefoamtogainaccesstothetwo(2)M6x20fasteners.Removethetwo(2)SCR
CoolingManifoldfastenersandremovetheassembly.RefertoFigure4-170SCRCoolingManifold
Removal-TTS300/TGS230forthisandthefollowingstep.
8. Removeanddiscardthetwo(2)O-rings.
Figure 4-170 SCR Cooling Manifold Removal - TTS300/TGS230


Page 158 of 294 - M-SV-001-EN Rev. H 1/23/2023
