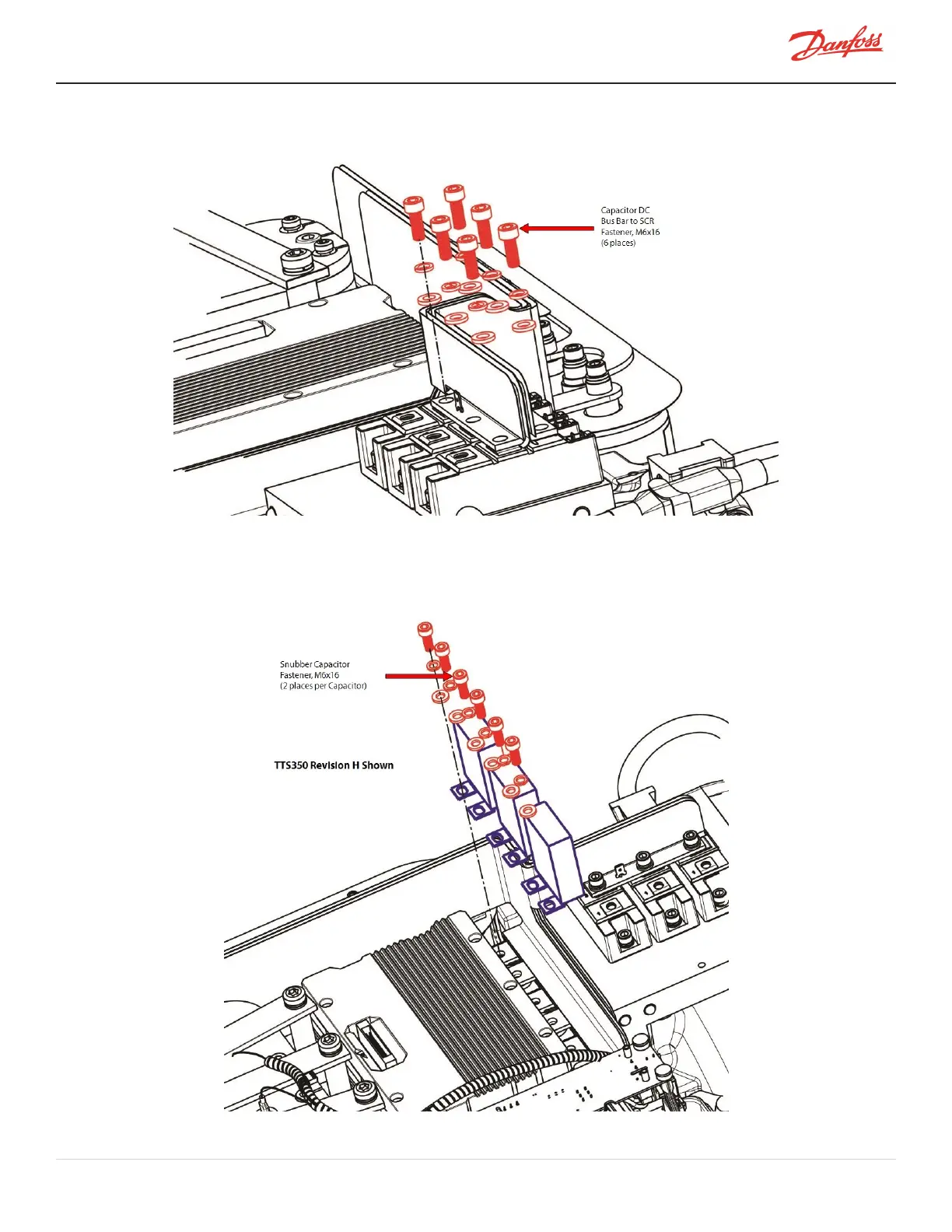

Figure 4-184 SCR Bus Bar Removal - TTS/TGS/TTH/TGH Rev. H (Except TTS300/TGS230)
3. DisconnectthesnubbercapacitorsfromtheInverternotingthelegorientationofonelegislonger
thantheother.RefertoFigure4-185SnubberCapacitorRemoval-TTS/TGS/TTH/TGH(Except
TTS300/TGS230).
Figure 4-185 Snubber Capacitor Removal - TTS/TGS/TTH/TGH (Except TTS300/TGS230)
M-SV-001-EN Rev. H-1/23/2023 Page 171 of 294
