Danfoss TTS300

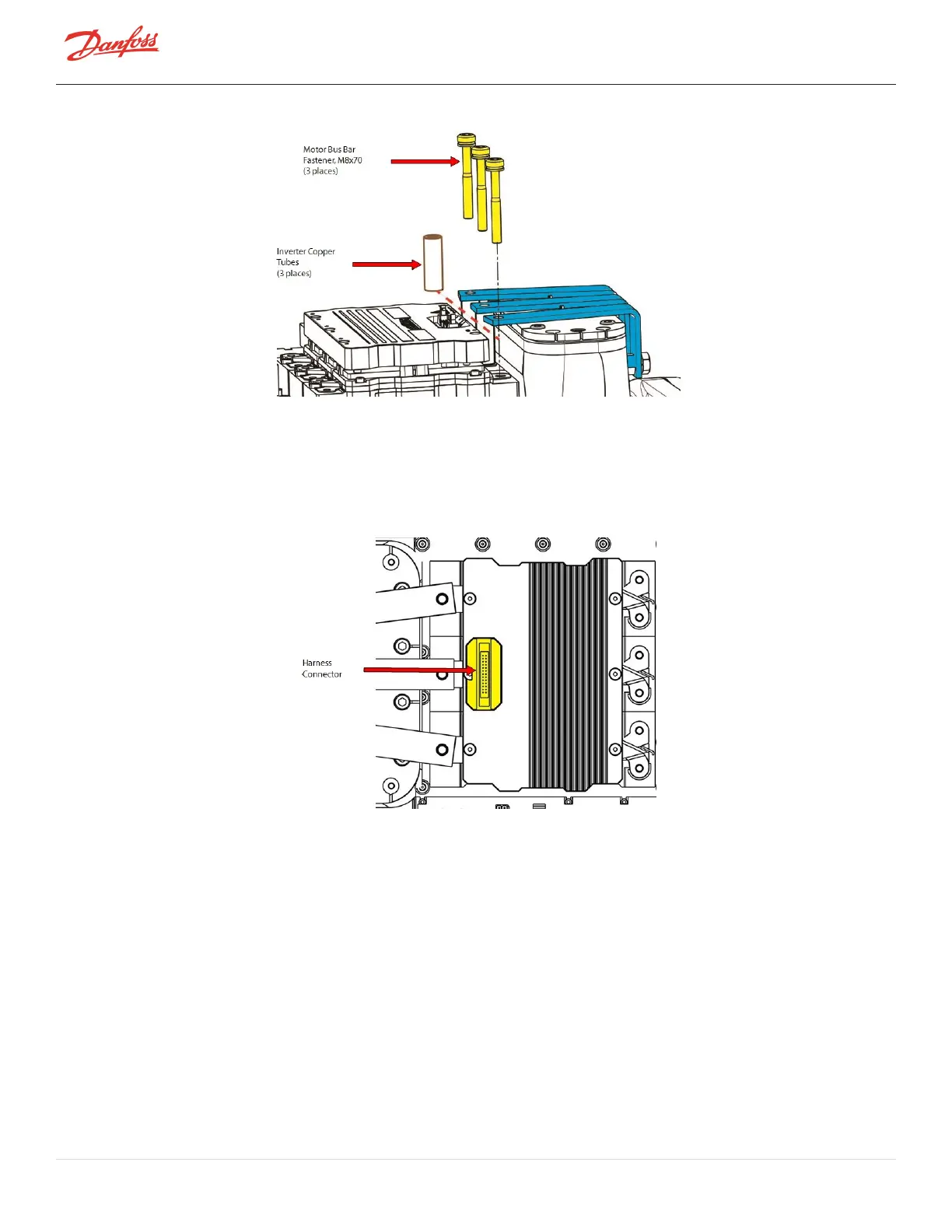

Figure 4-195 Inverter Copper Tube Removal
6. RemovetheInvertercableharnessfromthetopoftheInverter.RefertoFigure4-196InverterCable
HarnessRemoval-TTS300/TGS230.

Figure 4-196 Inverter Cable Harness Removal - TTS300/TGS230


7. RemovetheDC-DCfromtheInverterHeatSinkPlate.RefertoSection4.24.3DC-DCRemovaland
Installationonpage206.
8. DisconnectthewiresfromtheMotorWindingSensor.RefertoFigure4-197MotorWindingSensor
ConnectorRemovalonpage181.

