4. RemovetheMotorBusBars.RefertoSection4.23.5MotorComponentsRemovalandInstallationon
page196.
5. RemovetheCoverPlate.RefertoSection4.23.5.5MotorCoverPlateRemovalonpage198.
6. ForthePPSfeedthrough,continuetoStep7.Forthestainless-steelstyle,continuetoStep8.
7. Removethethree(3)M10x16fastenersandringterminalconnectionsfromthefeedthroughinorderto
beabletoreleasefeedthroughassembly.RefertoFigure4-225High-PowerFeedthroughRemoval
(PPS).

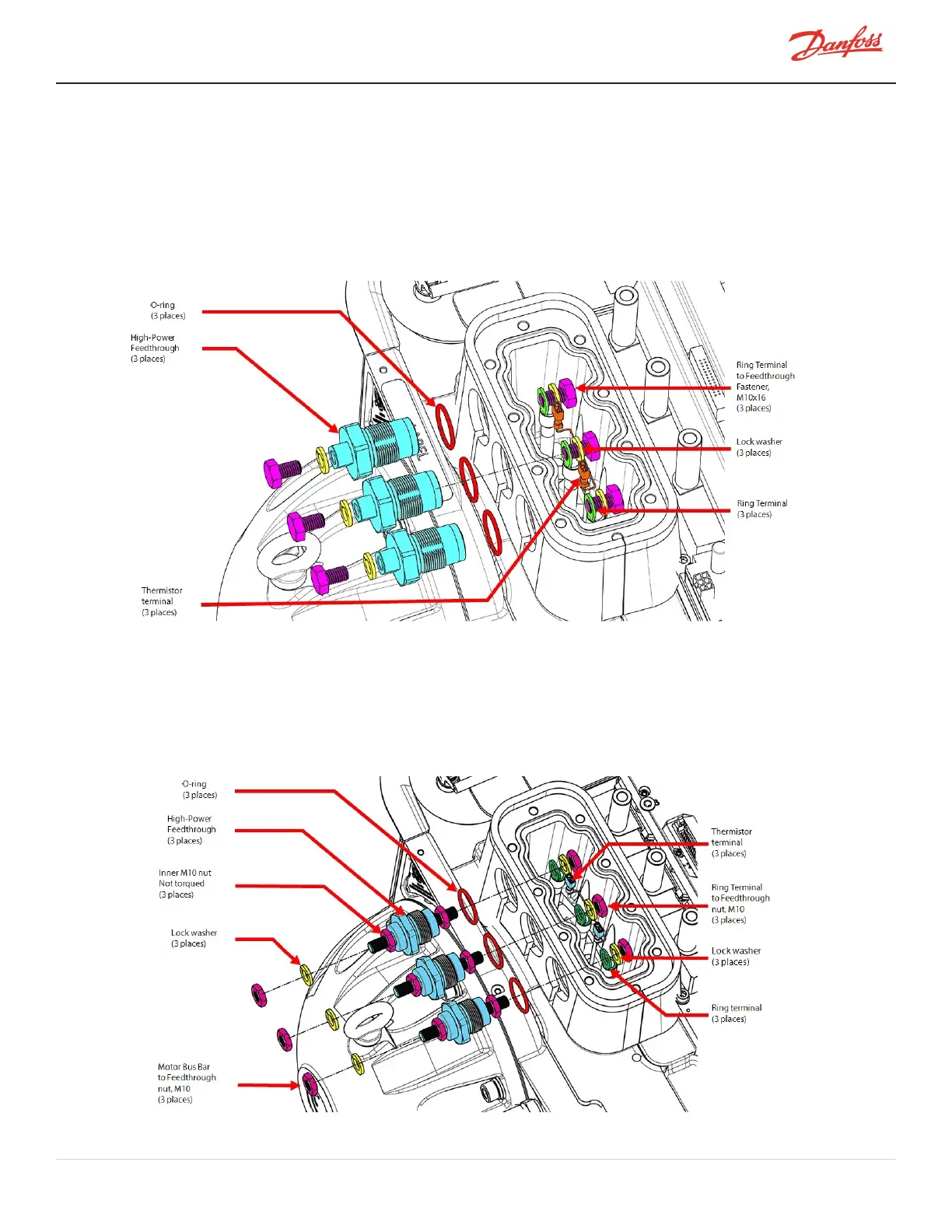

Figure 4-225 High-Power Feedthrough Removal (PPS)

8. Removethethree(3)M10nuts,lockwashers,andringterminalconnectionsfromthefeedthroughin
ordertobeabletoreleasefeedthroughassembly.RefertoFigure4-226High-PowerFeedthrough
Removal(stainlesssteel).
Figure 4-226 High-Power Feedthrough Removal (stainless steel)
