Danfoss TTS300

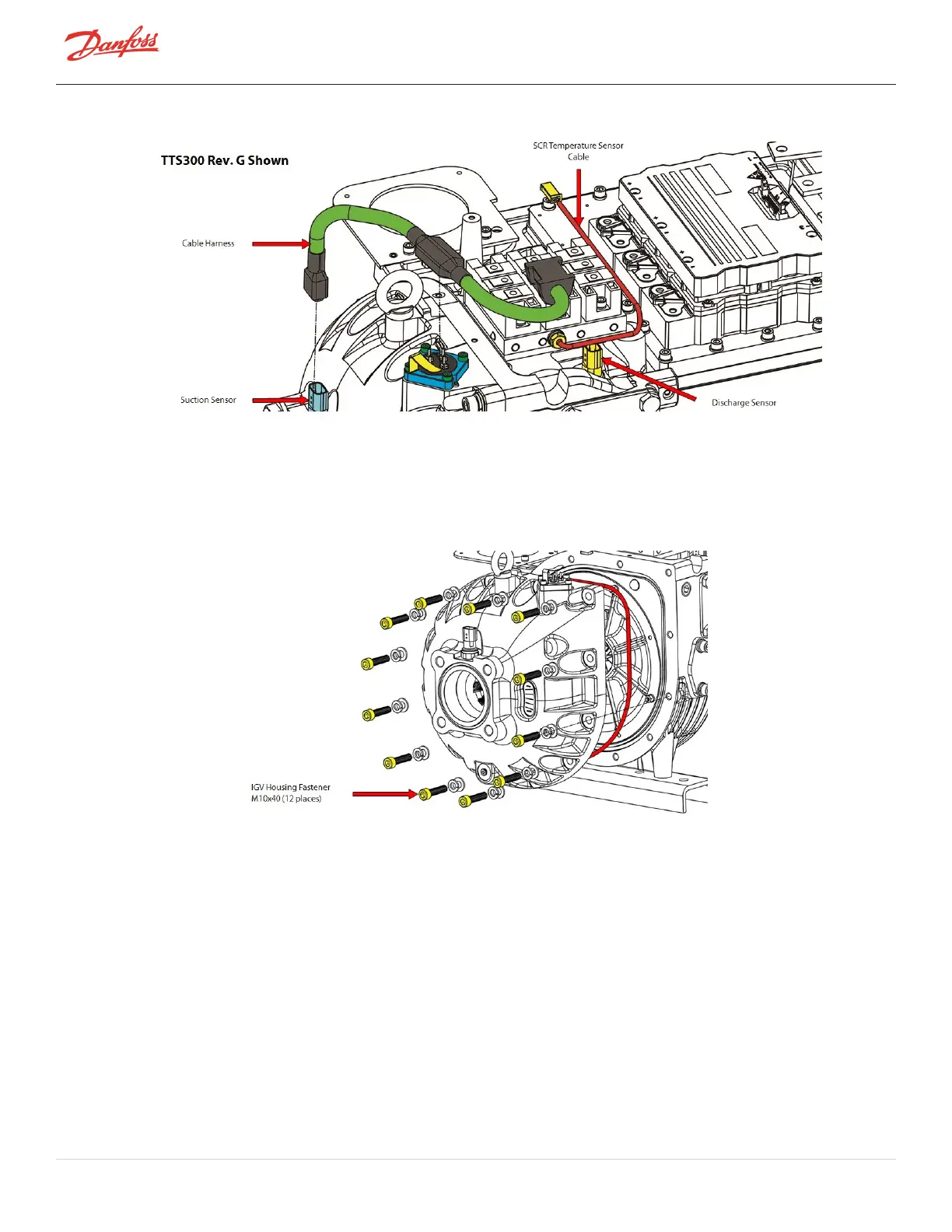

Figure 4-52 IGV Harness Removal
4. Isolatethecompressorandrecovertherefrigerantaccordingtoindustrystandards.RefertoSection3.1
RefrigerantContainmentonpage41.
5. Removethe12M10x40fastenersthatsecuretheIGVHousingAssemblytothecompressorhousingand
pullthehousingawayfromthecompressor.RefertoFigure4-53IGVHousingRemoval.
Figure 4-53 IGV Housing Removal

