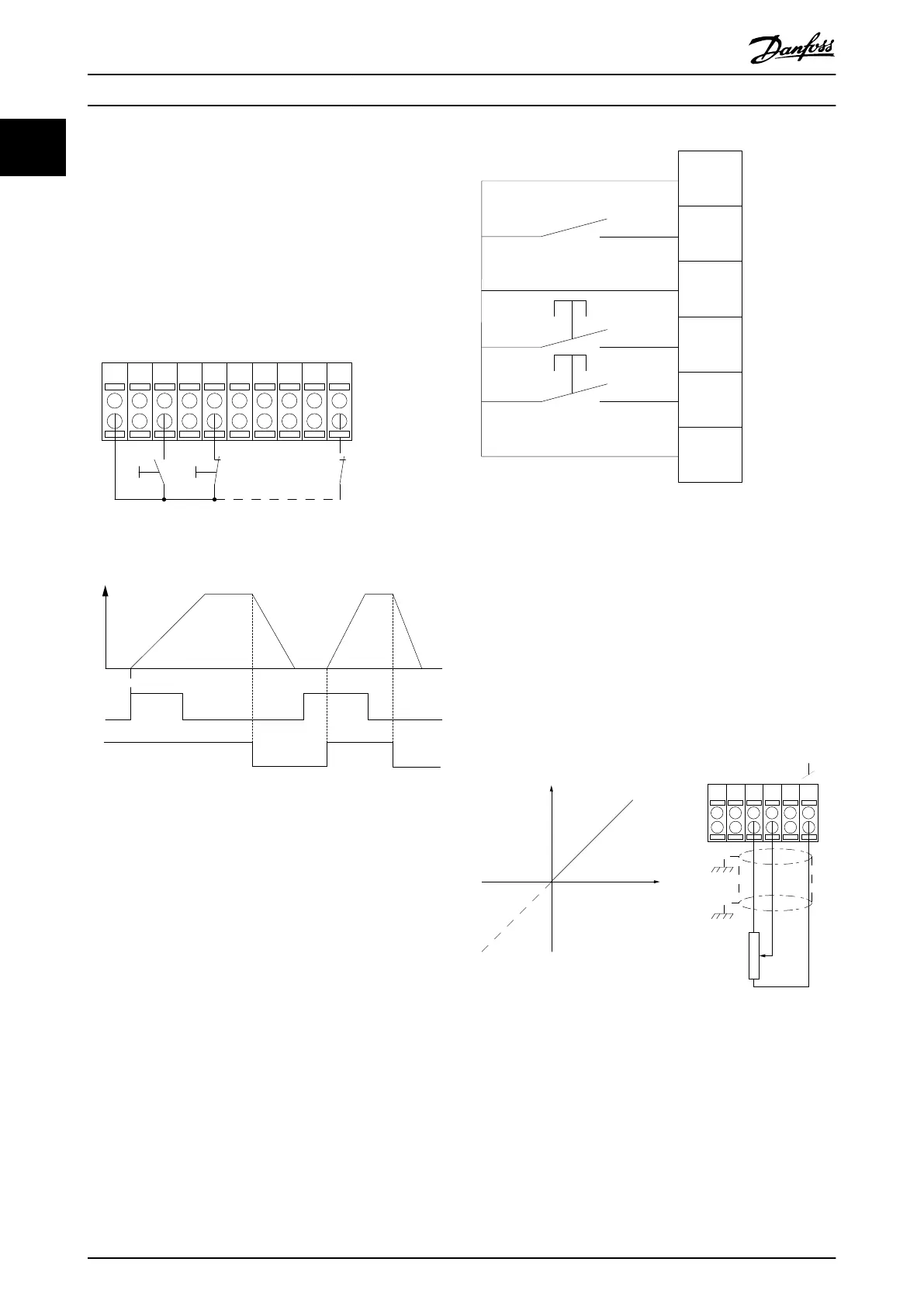

1.9.3 Pulse Start/Stop
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9]
Latched start.
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [6]
Stop inverse.
Terminal 37 = Safe Torque O (where available).
12 13 18 37
130BA156.12
322719 29 33 20
P 5 - 12 [6]
P 5 - 10[9]
+24V
Speed
Start Stop inverse Safe Stop
Start (18)
Start (27)
Illustration 1.7 Pulse Start/Stop
1.9.4 Speed Up/Down
Terminals 29/32 = Speed up/down
Terminal 18 = Parameter 5-10 Terminal 18 Digital Input [9]
Start (default).
Terminal 27 = Parameter 5-12 Terminal 27 Digital Input [19]
Freeze reference.
Terminal 29 = Parameter 5-13 Terminal 29 Digital Input [21]
Speed up.
Terminal 32 = Parameter 5-14 Terminal 32 Digital Input [22]
Speed down.
12
18
27
29
32
37
+24V
Par. 5-10
Par. 5-12
Par. 5-13
Par. 5-14
130BA021.12
Illustration 1.8 Speed Up/Down
1.9.5 Potentiometer Reference
Voltage reference via a potentiometer
Reference source 1 = [1] Analog input 53 (default).
Terminal 53, Low Voltage = 0 V.
Terminal 53, High Voltage = 10 V.
Terminal 53, Low Ref./Feedback = 0 RPM.
Terminal 53, High Ref./Feedback = 1500 RPM.
Switch S201 = OFF (U).
130BA154.11
555039 42 53 54
Speed RPM
P 6-15
1 kΩ
+10V/30mA
Ref. voltage
P 6-11 10V
Illustration 1.9 Potentiometer Reference
