Manual Datafox Evo 4.3 Page 97 Date: 27.12.2017 V 04.03.09.XX

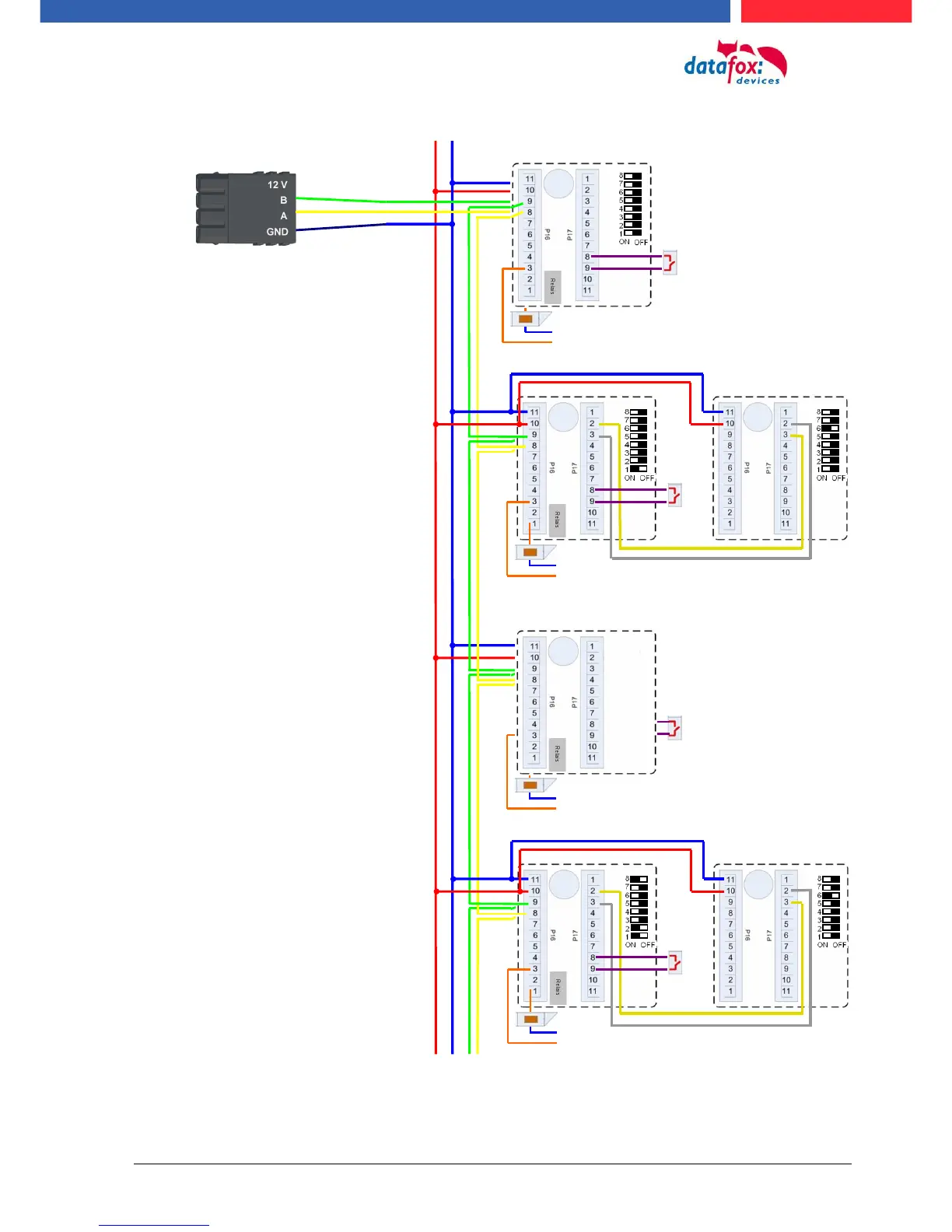

Wiring plan:
More modules are possible.
Connector on the
MasterIV device
Reader module (L)
Art-Nr.:106020
Reader module (L)
Art-Nr.:106020
12V + -
ext. max 30V 2A
Door opener
Tür
Kontakt
Combination module (LTM)
Art-Nr.: 106030
ext. max 30V 2A
Door opener
Tür
Kontakt
ext. max 30V 2A
Door opener
Tür
Kontakt
ext. max 30V 2A
Door opener
Tür
Kontakt
Combination module (LTM)
Art-Nr.: 106030
