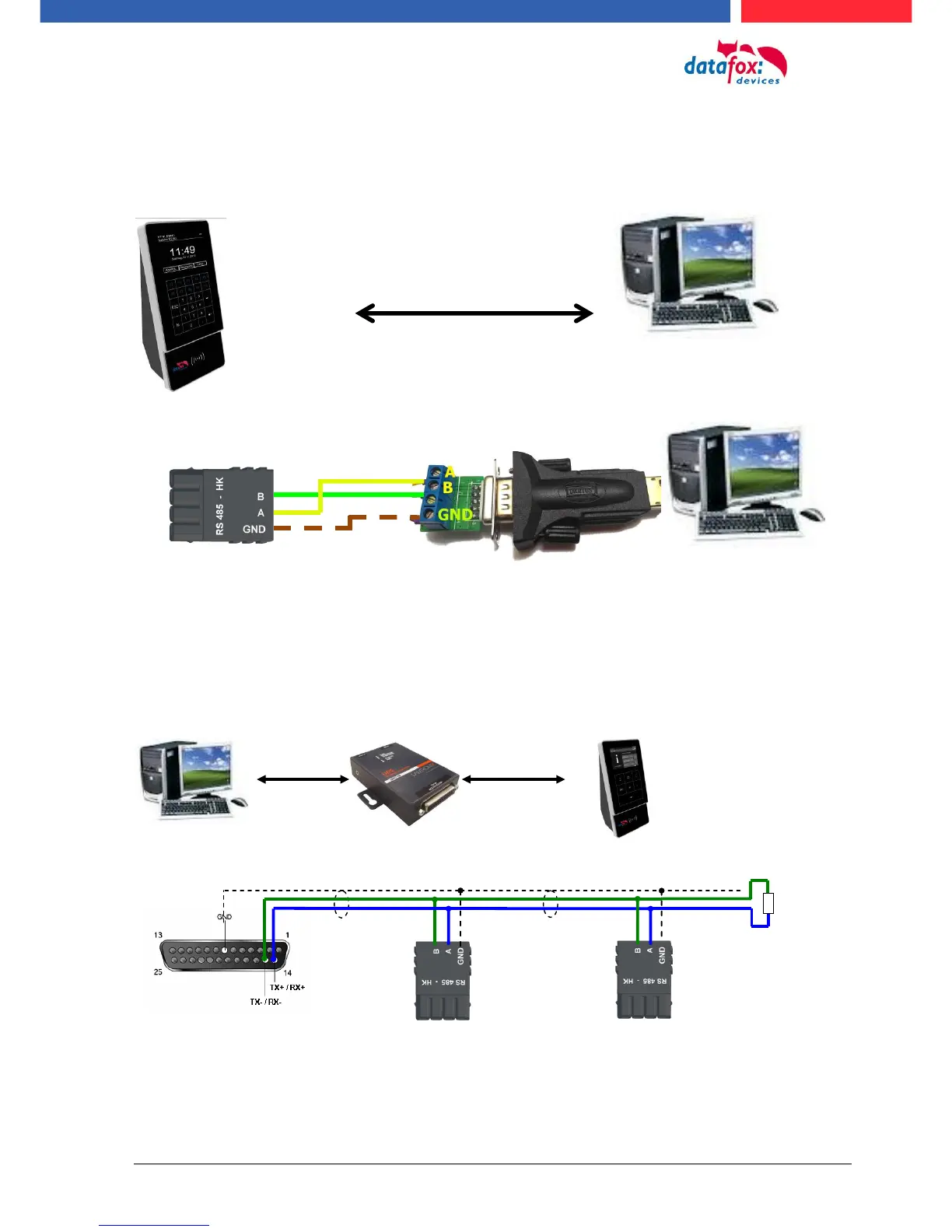

5.6.8. Communication via RS485
5.6.8.1. Connecting the termina via RS485 to PC
5.6.8.2. Connecting the Terminal via RS485 with a Comserver Lantronix
RS 485 to PC
up to 1000m
120 Ohm
plugr 4 Pol.
BUS A
BUS B
Pin 1 - GND
plug 4 Pol.
BUS A
BUS B
Pin 1 - GND
plug
Pin 15 - BUS B
Pin 14 - BUS A
Pin 7 - GND
TCP/IP
RS485
RS 485 Anschluss
am Terminal
USB - RS485
Adapter am PC
