5.5.3. Modules for devices of hardware V4
5.5.3.1. Description of the various extension modules
The Datafox devices of the generation V4 are particularly distinguished by the variable configuration
of individual modules.
Depending on the device, a certain number of module locations are available.
These can be individually equipped with the individual available modules.
Depending on the size of the module, the individual modules occupy one or two module locations.
Thus, e.g. the GPRS module (mobile radio) requires 2 module slots and one relay module only
needs one module slot.

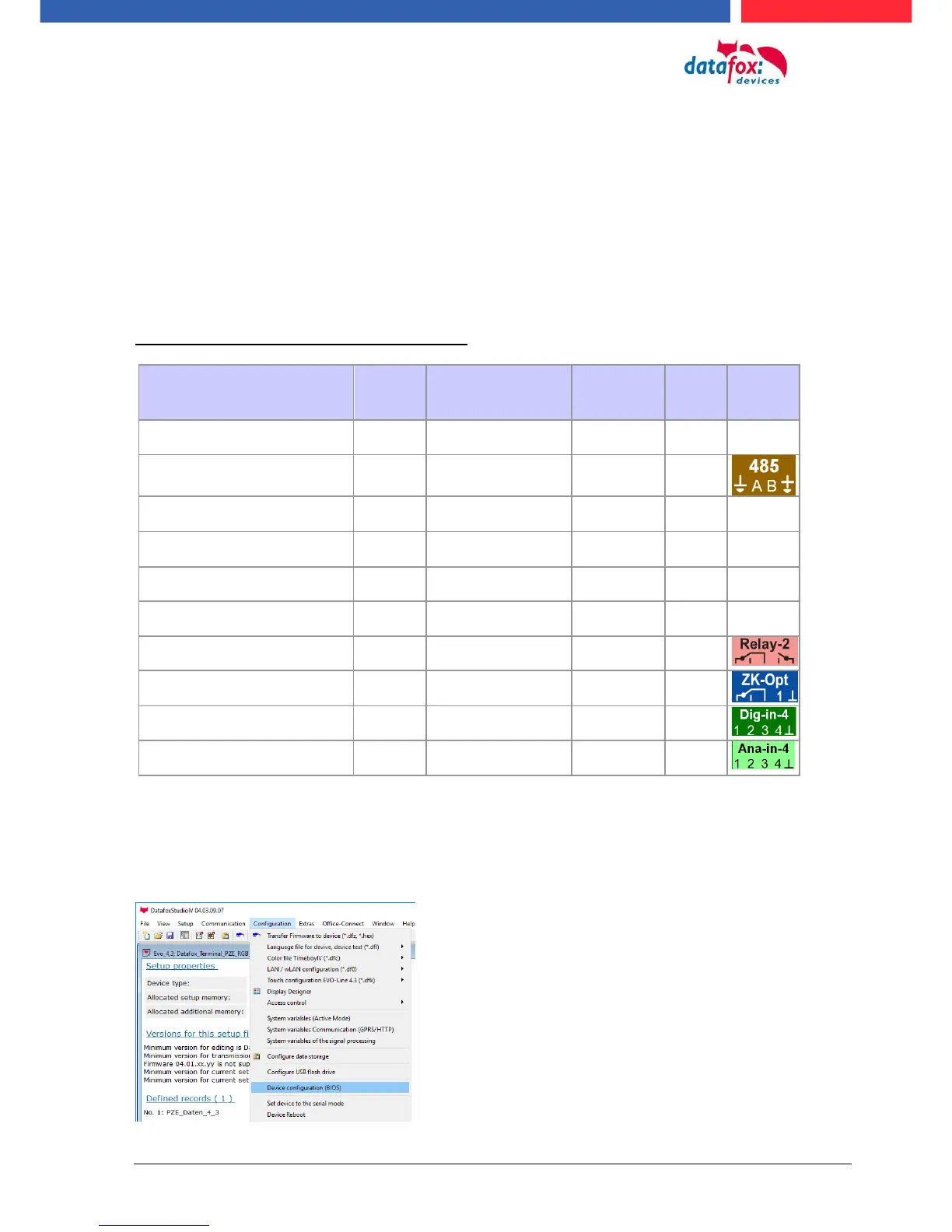

Overview of the different optional modules:
modul description
Required
module
slots
Description in the
BIOS-Menu and
Module mumber.:
Max. possible
number of
module
items
No. for
the
plug
overprint
&
Colour
RS 232 - mini DIN Barcode
1
032 Serial port mini DIN
1
RS 485 access
1
014 RS485 + 12V Supply
3
A310000
4-01
RS 485 for main communicati-
on
1
035 RS 485 Com Port
1
GPRS Mobile (Cell phone)
network
2
Mobile MC 55i
1
TCP/ IP
1
011 Ethernet Port
1
WLAN (WiFi)
1
001 WLAN Red Pine
1
2x digital Out
1
005 Relais Output
8
A310000
5-01
1x digital In +
1x digital Out
1
012 Digital In-/Output
8
4x digital In
1
006 Digital Input
8
A310000
5-02
4x anlog In
1
008 Analog Input
8
A310000
5-03
How manny modulplaces are usable you see device in the device manual in the chapter “Connec-
tion of device”.
5.5.3.2. Read the optional placement of the device
Click on:
„Configuration -> Device configuration (Bios)“
Then click on „Read“.
