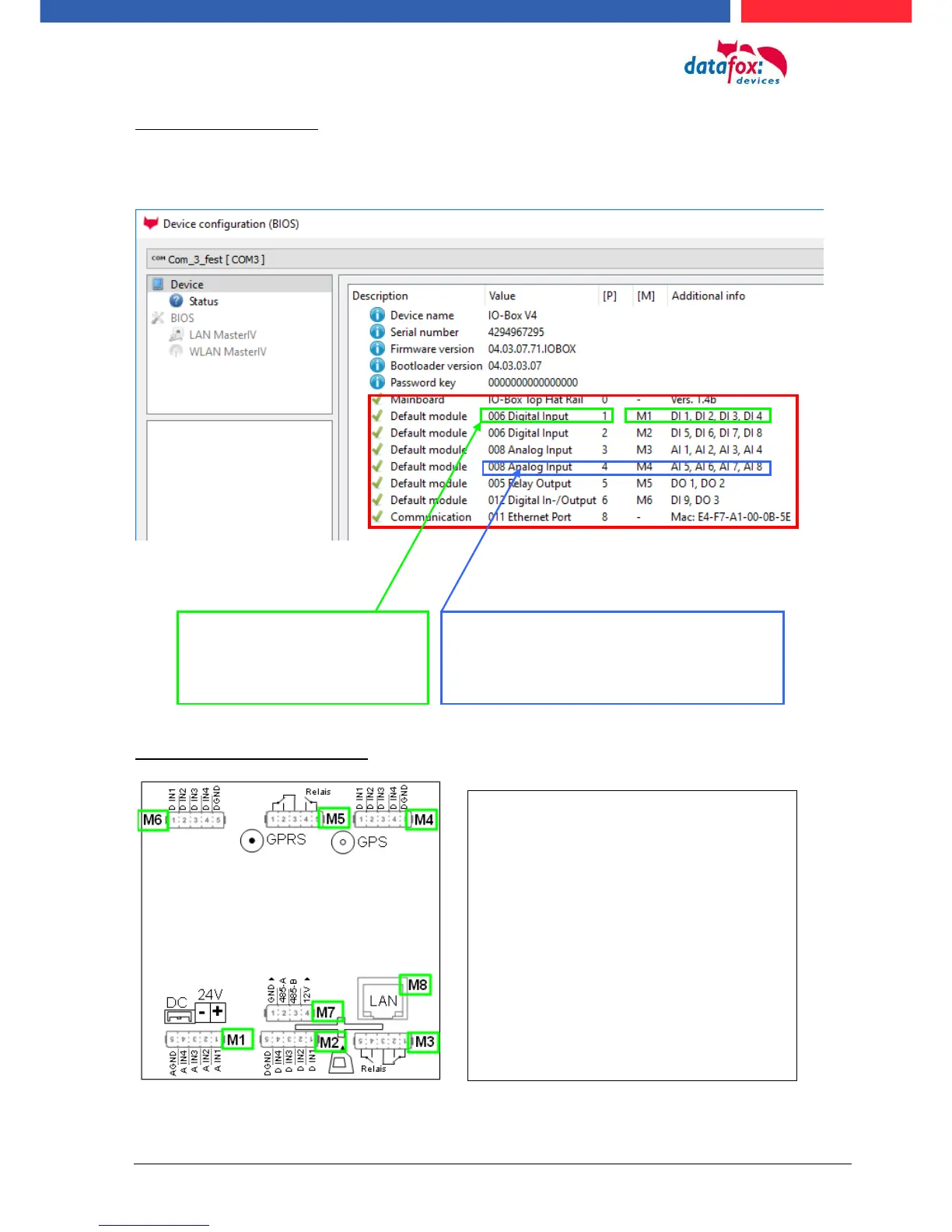

Display in the Bios-Menu:
Here show all moduls they are fited in the device:
You see which module on which place is. You get extendet information how MAC adress, the num-
ber and order of the inputs and outputs.
E.g. Type lable of a IO-Box V4:
Example 1:
- Modulplace = M1
- Digital Input 1 to 4
- Module Number: = 006
Example 2:
- module slot = M4
- Analog Input 5 to 8
- Module Number: = 008 analog Input
You see here, in the IO-Box are
8 Modulplaces usable. This can be indi-
vidually fitted.
Exceptions:
- Modulplace 8, only here TCP is possible.
- RS 485 for access control - maximum 4
Modules can be fitted.
