Datafox Evo 4.3 - Connection of the Individual Modules; Analogeingänge, 4 Mal Analog in - Analog Inputs, 4 Times Analog in

Manual Datafox Evo 4.3 Page 44 Date: 27.12.2017 V 04.03.09.XX
5.5.3.4. Connection of the individual modules
The connector / socket for the module always has the following assignment:
5.5.3.5. Analogeingänge, 4 mal analog IN - Analog inputs, 4 times analog IN

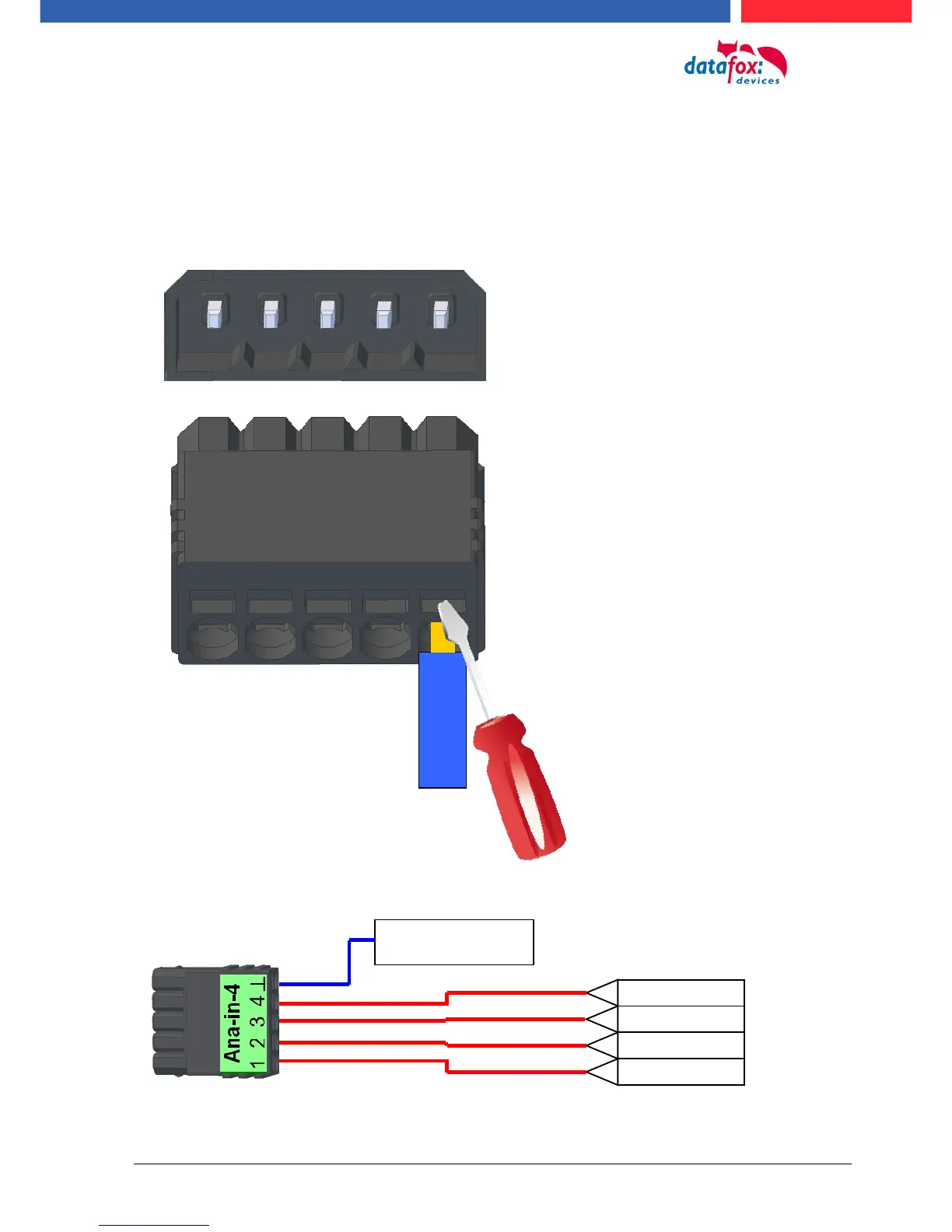

Socket on the device:
1
2
3
4
5
The plug can be inserted only in one direc-
tion and is therefore protected against re-
verse polarity.
plug
1
2
3
4
5
To loosen the cable, use a small screw-
driver. Solid wires can be loosened by
twisting back and forth on the wire and
plug.
+ 0-10 V Signal 4
+ 0-10 V Signal 3
+ 0-10 V Signal 2
+ 0-10 V Signal 1
common ground;
GND / Ground
