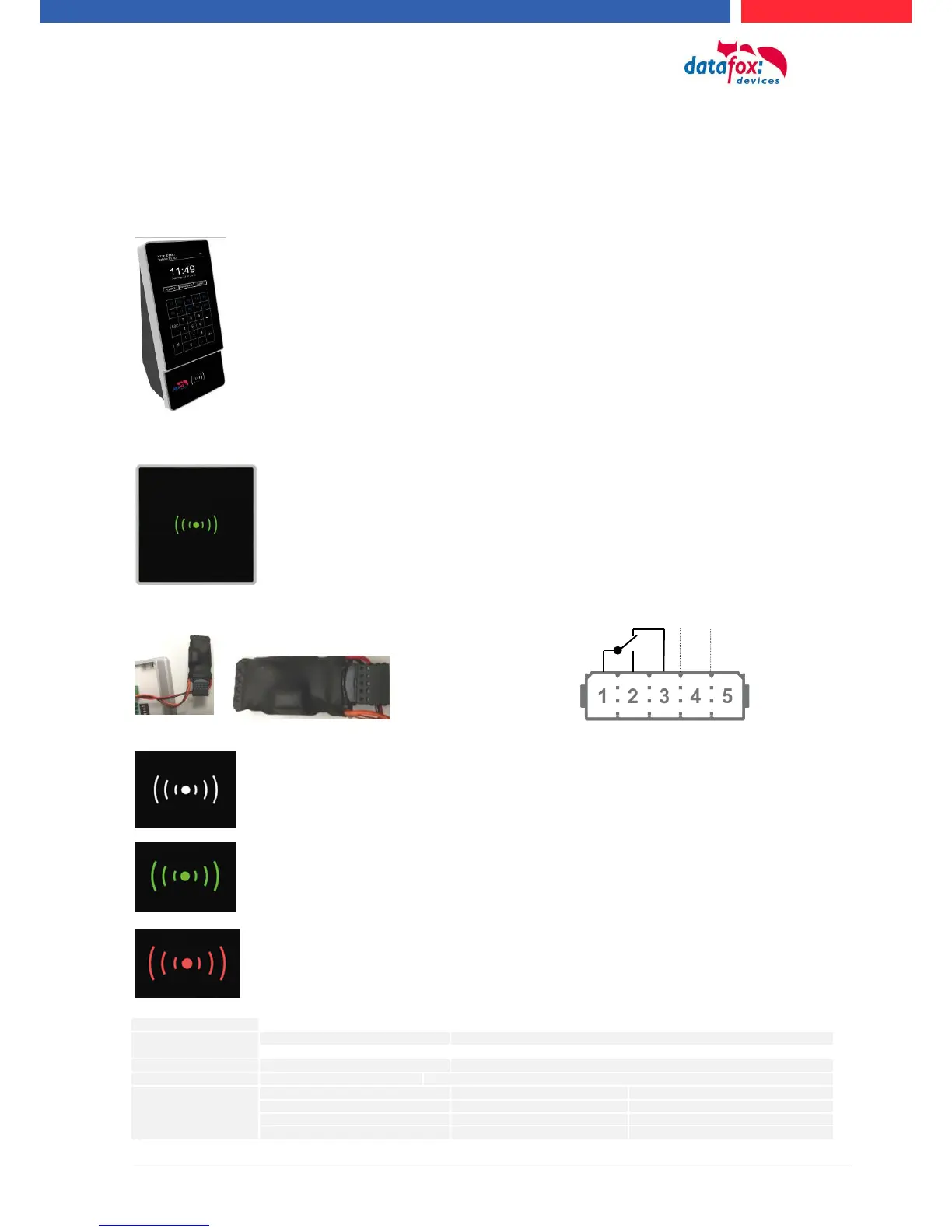

Manual Datafox Evo 4.3 Page 78 Date: 27.12.2017 V 04.03.09.XX
If the device MasterIV is used for access control, door
supervision or remote monitoring, one device can su-
pervise up to 8 doors and control 12 doors at most.
diensions: 81 x 81 x 19 mm (BxHxT)
The EVO acceess reader can be used with 125 kHz, Legic or Mifare.
It is available for in-wall or on-wall mounting with or without key-
board. Each reader has a sabotage recognition, three lamps for vis-
ualizing the state and a buzzer for the acoustic signaling.
Signals from the backlight:
white permanent = Reader found an ready
white flashing = reader not found and not connection to the master
Signals from the backlight:
green = access accept
Signals from the backlight:
red = access denied or the master configured the read-
er currently.
5.7.4. Access control wiht EVO-access modules
The following hardware is available to set up an access control with EVO-modules. The devices can
be combined in different ways according to their hardware requirements.
EVO 4.3
EVO-access-reader
IO-modul for EVO-Access reader
Backlit transponder symbol
3-coloured white, green, red
Individual printable front glass with backlight 56 x 37mm
Colour always like transponder symbol
Ambient temperature, Protection
