Manual Datafox Evo 4.3 Page 77 Date: 27.12.2017 V 04.03.09.XX
If a defective reader is replaced by a new reader that has not been used yet, it is recognized by the
firmware automatically at the start and the encryption is set up. The reader can also be replaced
during operation, the firmware automatically integrates it.
Contrary to GIS readers, PHG readers always have 2 digital inputs and a sabotage contact. The
firmware regards input 1 and input 2 as normal inputs with the number 1 and 2 and the sabotage
contact as number 3. The sabotage contact is integrated in the reader. The PHG reader has no ana-
log-switch-input for door monitoring.
Additionally, the PHG reader can be extended by an IO box. The IO box has two digital inputs and
two relay outputs. The IO box is accessed via the same address like the reader. The two digital in-
puts have port number 4 and 5, the digital outputs port number 1 and 2. In case of discontinuity or
sabotage, port no. 6 is used.
PHG modules and firmware:
All configurations like tables etc. are to be configured in the same way as for the access readers of
the TS series.
Only exception:
The IO box is not specified in the reader table. Thus, information regarding the modules which are
connected via the I
2
C bus, is omitted.
Corresponding reader table:
ID
ZM
TM
RefLocation
RefAction
PinGeneral
Description
1
320
1
0
1
0
Master device
2
010
1
1
1
0
Reader at RS485
(PHG)
3
011
1
1
1
0
IO-Box at I
2
C-Bus
4
020
1
2
2
0
Reader at RS485
(LTM)
5
021
1
2
2
0
IO-Box at I
2
C-Bus

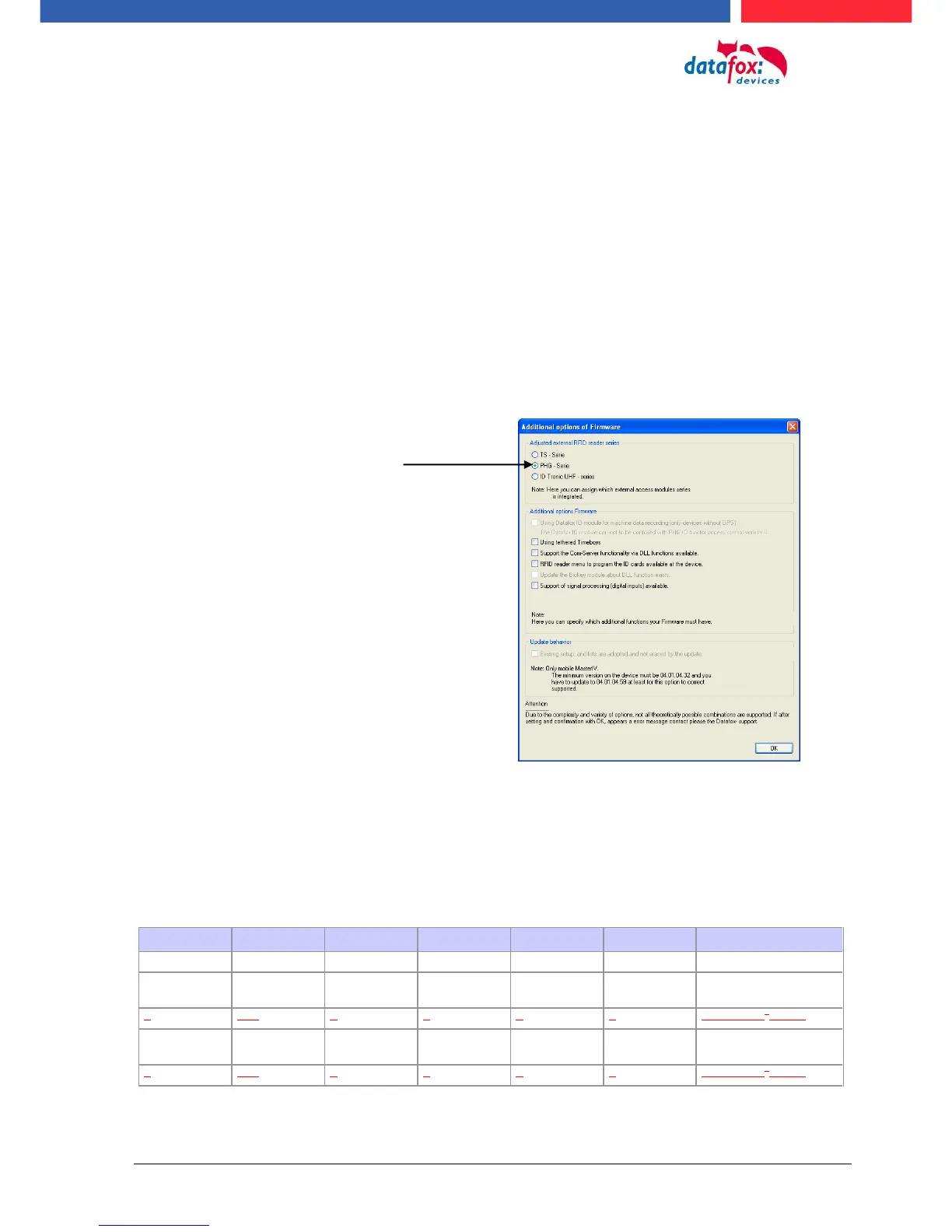

If you want to use the PHG
modules, you have to set it in
the Additional Options.
After changing over to the ac-
cess readers of the PHG series,
the firmware must be trans-
ferred again.
The device then selects the re-
spective firmware from the
DFZ-file.
