Manual Datafox Evo 4.3 Page 69 Date: 27.12.2017 V 04.03.09.XX
If the device MasterIV is used for access control, door
supervision or remote monitoring, one device can su-
pervise up to 8 doors and control 12 doors at most.
Flush-mounted: 81 x 81 x 11 mm (WxHxD)
Surface-mounted: 81 x 81 x 40 mm (WxHxD)
The VOXIO can be used with Legic or Mifare. It is available for in-wall or on-
wall mounting with or without keyboard. Each reader has a sabotage recog-
nition, three lamps for visualizing the state and a buzzer for the acoustic sig-
naling.

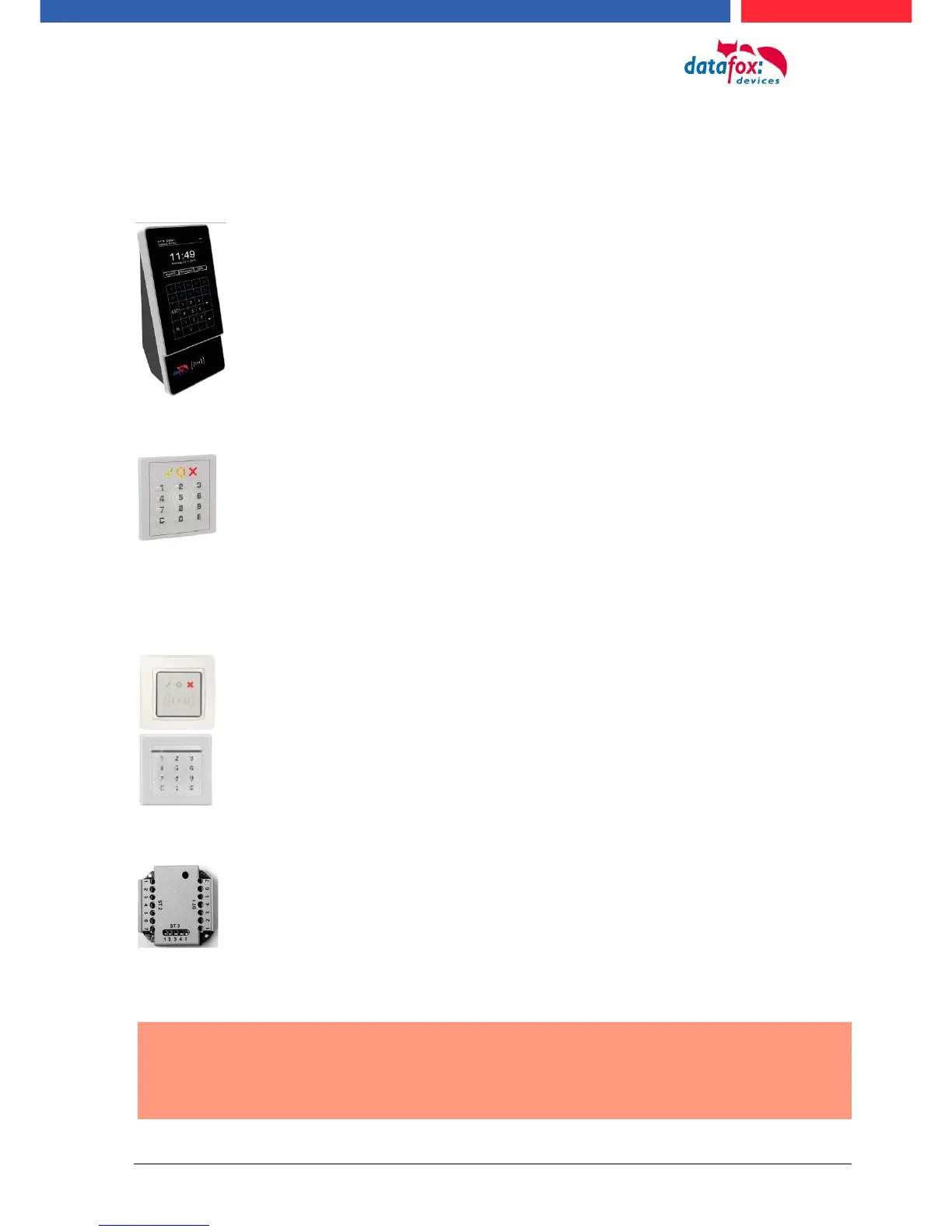

The following hardware is available to set up an access control with PHG modules. The devices can
be combined in different ways according to their hardware requirements.
EVO 4.3
VOXIO
Relino
Relino B
IO-Box
From firmware version of the access reader 69806D of the PHG readers the autologin function for
Mifare is supported. Here for 5 of the max. 6 keys can be used in the setup.
!
Attention:
Technical data for the PHG access modules can be found on the Datafox DVD or in
our download area. Please note the power consumption of the modules and the voltage
drop at long cable lengths.
The responsibility for calculating the maximum cable lengths lies with the installer.
50 x 50 x 43 mm (WxHxD)
The RELINO reader can be used with Legic or Mifare. It is available for in-
wall mounting. Each reader has three lamps for visualizing the state and a
buzzer for acoustic signaling.
51 x 48 x 22 mm (WxHxD)
The I/O box as equipment for the RFID wall reader or RELINO reader has
two digital inputs and two digital outputs. The I2C bus is used as interface.
