Door opener
 –
+ GND A B
further reader
supply
12V 3A/DC
I
2
C max. 5m
ISTY 2x2x0,8
 / ~
– / ~
I
2
C max. 5m
ISTY 2x2x0,8
 / ~
– / ~
I
2
C max. 5m
ISTY 2x2x0,8
 / ~
– / ~
Door opener
Door opener

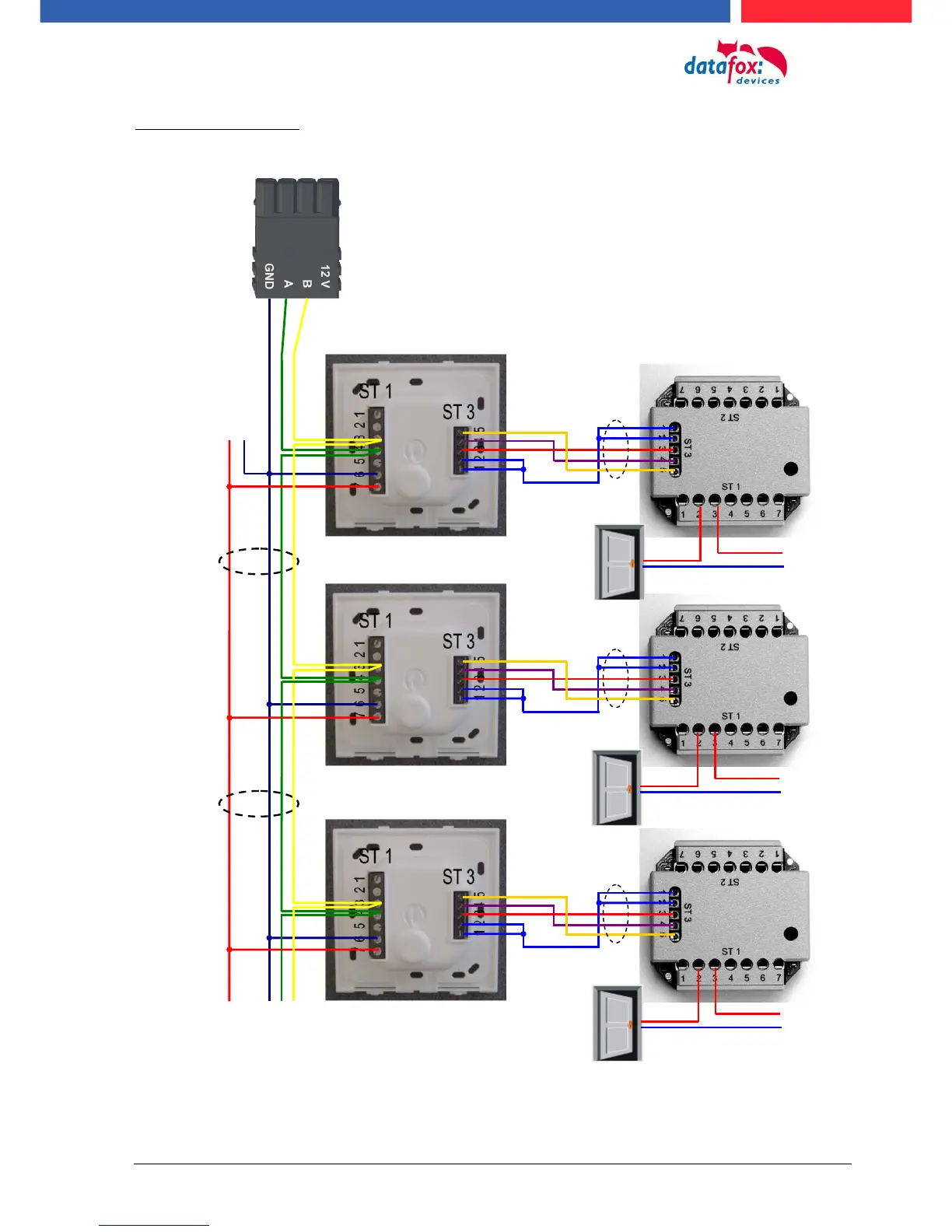

Wire plan PHG-reader:
In any case, a protection circuit should be integrated when connecting the door-opener.
A fly back diode for DC and an RC element for AC.
Bitte verwenden Sie
eine J-Y(ST)Y 0,8
oder CAD Leitung.
