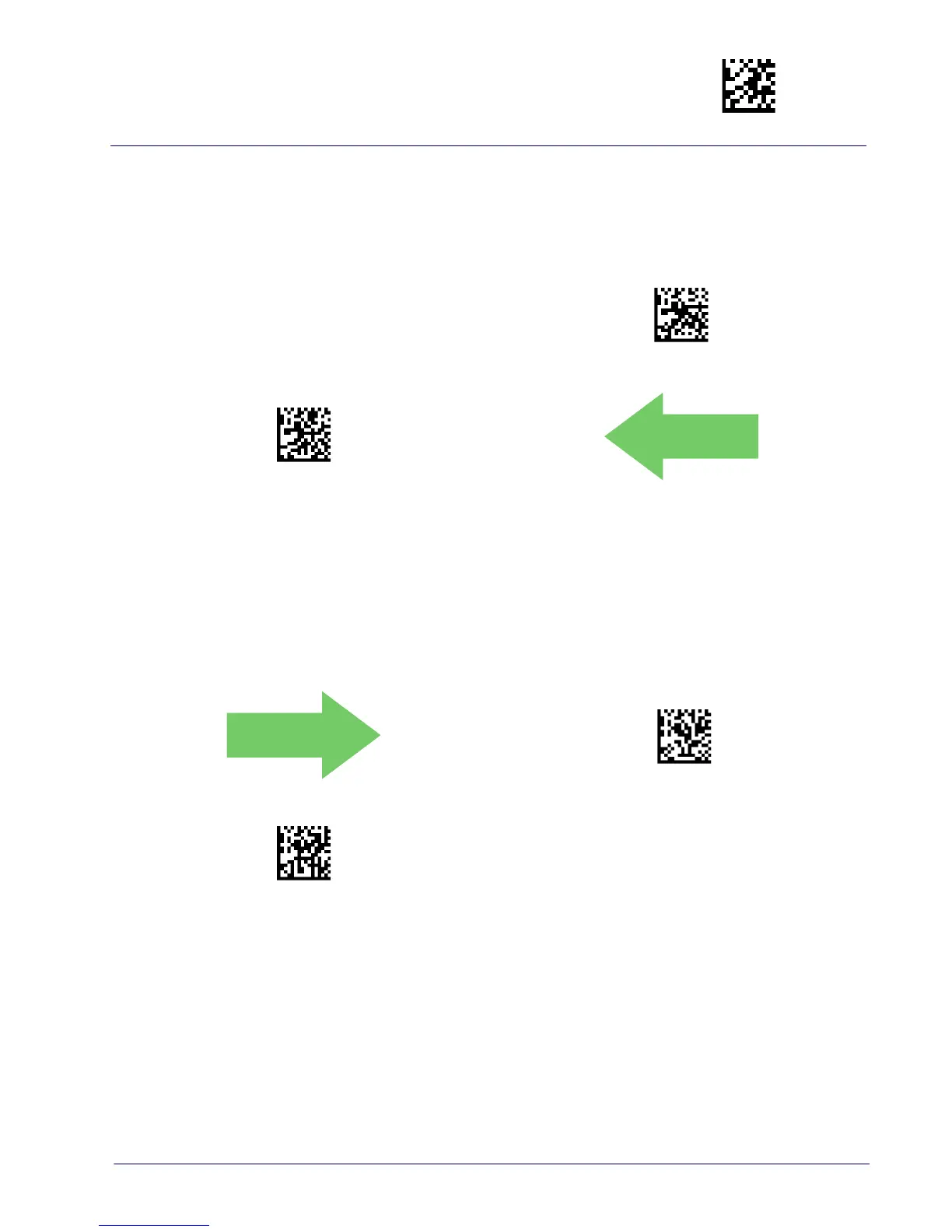

Symbologies Enter/Exit Programming Mode

Product Reference Guide

103

EAN-13 Flag 1 Character

Enables/disables transmission of an EAN/JAN13 Flag1 character. The Flag 1 character is the

first character of the label.

$C3BF100(CR)

EAN-13 Flag 1 Char= Don’t transmit

$C3BF101(CR)

EAN-13 Flag 1 Char= Transmit

DEFAULT

EAN-13 ISBN Conversion

This option enables/disables conversion of EAN 13/JAN 13 Bookland labels starting with 978

to ISBN labels.

DEFAULT

$C3BIS00(CR)

EAN-13 ISBN Conversion = Disable

$C3BIS01(CR)

EAN-13 ISBN Conversion = Convert to ISBN

Default Chapter1
