Datalogic Gryphon I GFS4400 - Chapter 4 Software Configuration Strings

To Next Page

To Previous Page

2D Symbologies Enter/Exit Programming Mode

Product Reference Guide

215

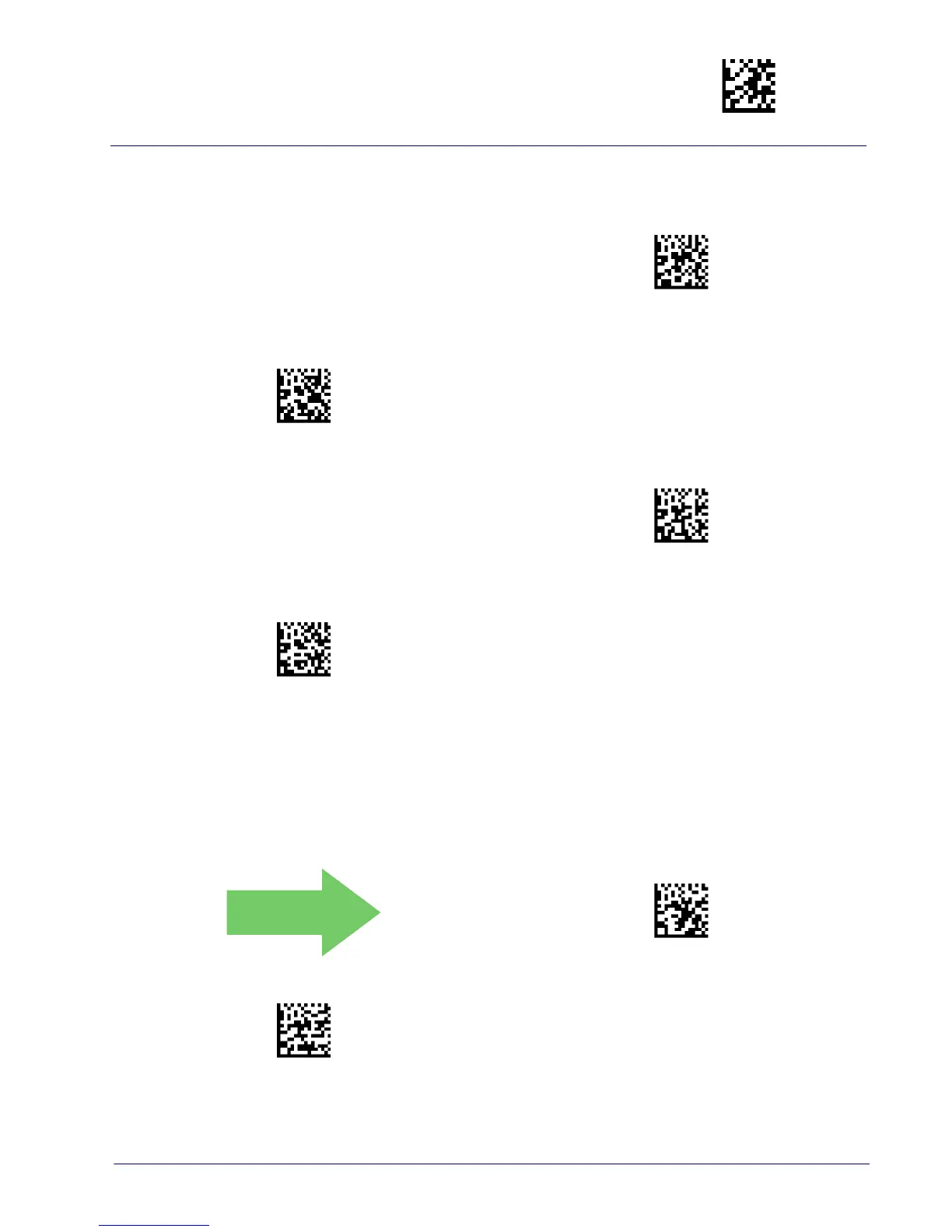

Postal Code Selection — cont.

$CPOEN06(CR)

Postal Code Selection = Enable Japan Post

$CPOEN07(CR)

Postal Code Selection = Enable IMB

$CPOEN08(CR)

Postal Code Selection = Enable Sweden Post

$CPOEN09(CR)

Postal Code Selection = Enable Portugal Post

Postnet BB Control

Controls the ability of the scanner to decode B and B' fields of Postnet labels.

DEFAULT

$CPOBB00(CR)

Postnet BB Control = Disable

$CPOBB01(CR)

Postnet BB Control = Enable
