Symbologies Enter/Exit Programming Mode

Product Reference Guide

133

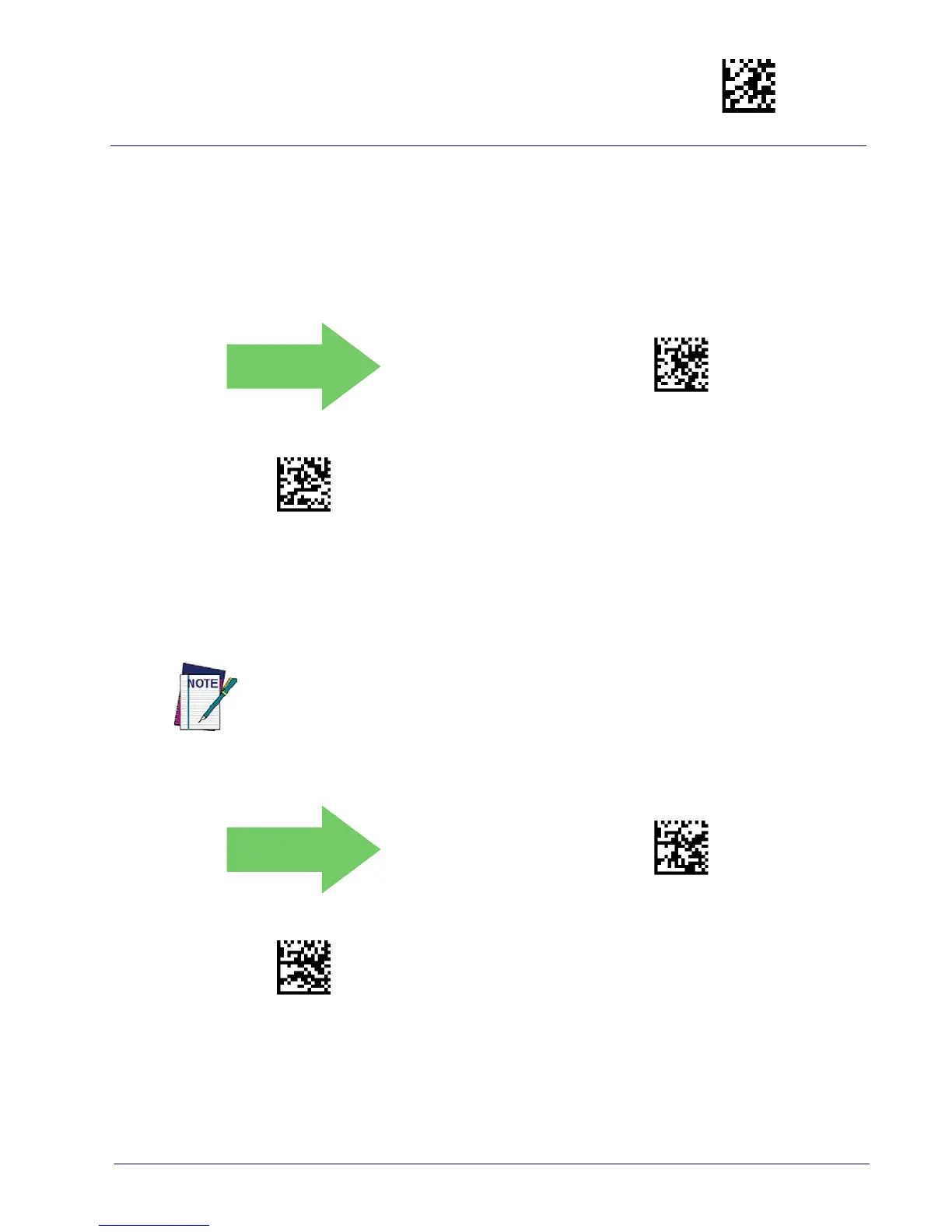

CODE ISBT 128

The following options apply to the ISBT 128 symbology.

ISBT 128 Concatenation

Use this option to enable/disable ISBT128 concatenation of 2 labels.

DEFAULT

$CI8CE00(CR)

ISBN 128 Concatenation = Disable

$CI8CE01(CR)

ISBN 128 Concatenation = Enable

ISBT 128 Force Concatenation

When enabled, this feature forces concatenation for ISBT.

DEFAULT

$CI8FC00(CR)

ISBT 128 Force Concatenation = Disable

$CI8FC01(CR)

ISBT 128 Force Concatenation = Enable

This option is only valid when

ISBT 128 Concatenation

is enabled.
