Setup Attaching Reader to Host

Gryphon™ I GFS4400

Attaching Reader to Host

RS-232 Serial Connection

Turn off power to the terminal/PC and connect the reader to the terminal/PC serial port via the

RS-232 cable as shown in

Figure 1

. If the terminal will not support POT (Power Off the

Terminal) to supply reader power, use the approved power supply

(AC Adapter). Plug the AC

Adapter barrel connector into the socket on the RS-232 cable connector and the AC Adapter

plug into a standard power outlet.

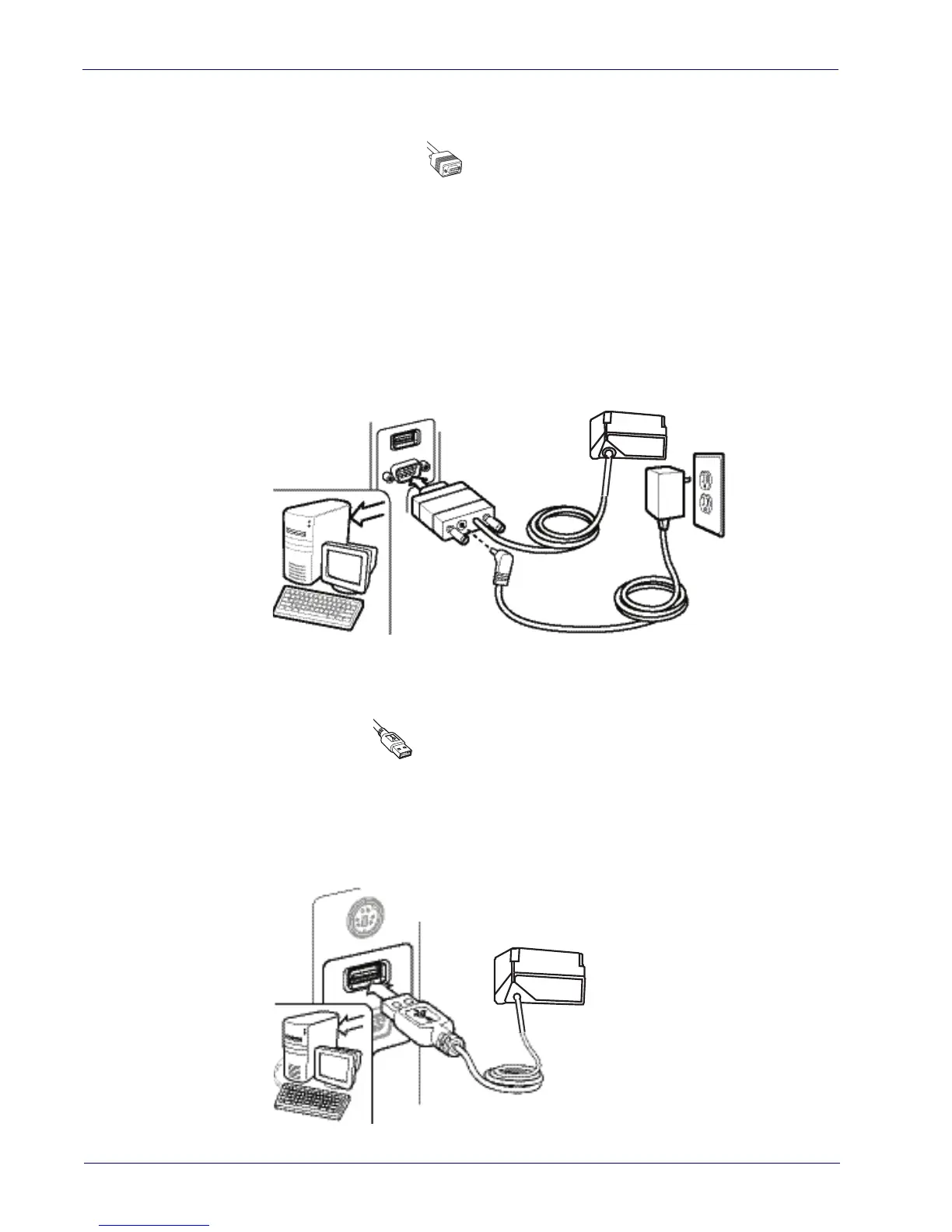

Figure 1. RS-232 Connection

USB Connection

Connect the reader to a USB port on the terminal/PC. Reference

Figure 2

Figure 2. USB connection

Default Chapter1
- Product Reference Guide1
- Table of Contents3
