Datamax H Class User Manual

32

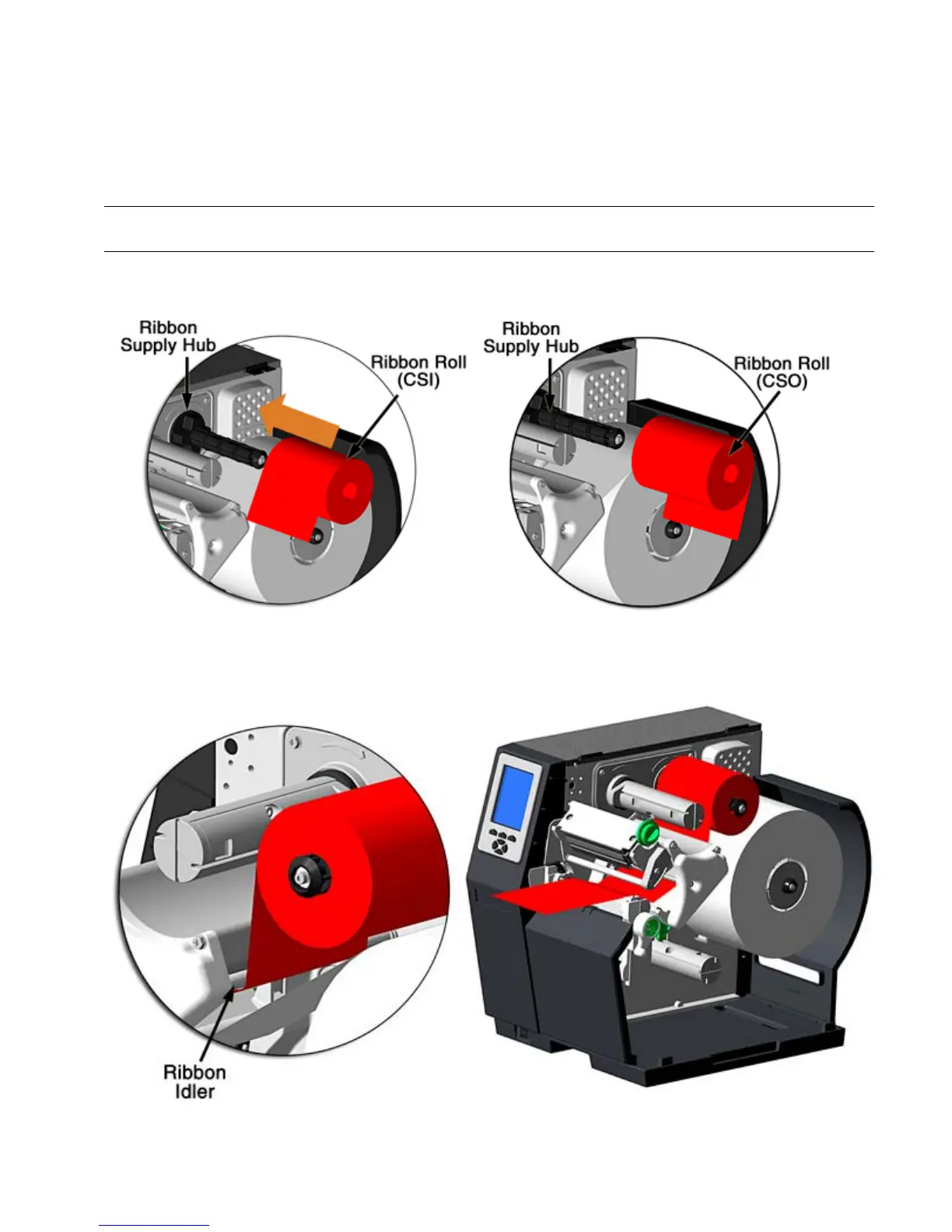

2. In the appropriate direction for the ribbon type (CSI or CSO), slide a Roll of Ribbon
onto the Ribbon Supply Hub until it rests against the hub’s flange. (Directional arrows
near the Ribbon Supply Hub also indicate the correct ribbon route.)
Note:
The coated side "inked" side of the ribbon should always lay against the face of the
media.
CSI (Coated Side In) CSO (Coated Side Out)
3. Route the ribbon under the Ribbon Idler then out the front of the printer.

Datamax H Class Specifications

General

Print Method	Thermal Transfer/Direct Thermal
Interface	Ethernet, Wireless
Media Sensor	Reflective
Media Types	Labels, Tags
Resolution	203 dpi
Media Thickness	0.002 to 0.01 inches (0.05 to 0.25 mm)
