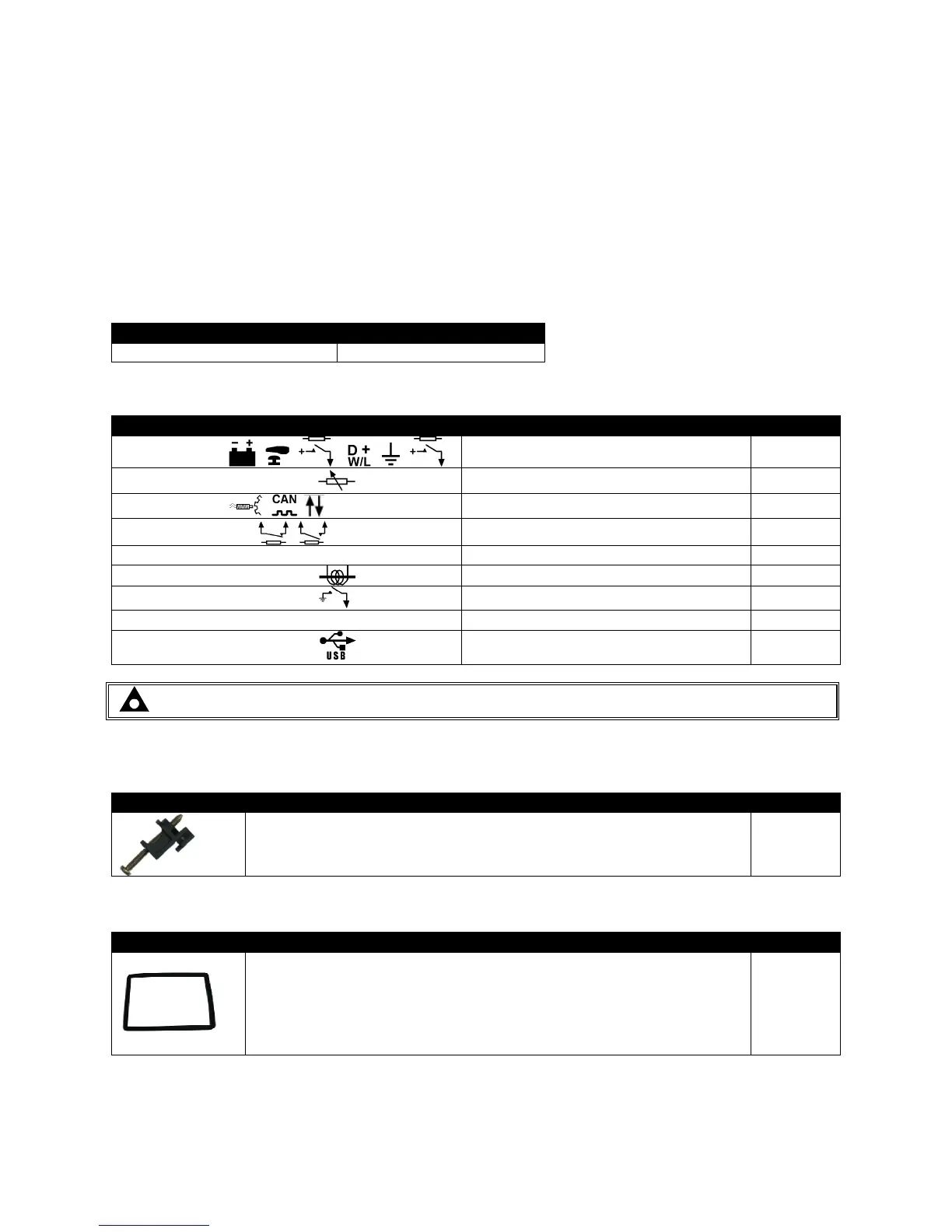

13 MAINTENANCE, SPARES, REPAIR AND SERVICING
The controller is Fit and Forget. As such, there are no user serviceable parts within the controller.
In the case of malfunction, you should contact your original equipment manufacturer (OEM).
13.1 PURCHASING ADDITIONAL CONNECTOR PLUGS FROM DSE
If you require additional plugs from DSE, please contact our Sales department using the part numbers below.
13.1.1 PACK OF PLUGS
Module type Plug Pack Part Number
DSE8800 100-400-88
13.1.2 INDIVIDUAL PLUGS
Module Terminal Designation Plug Description Part No.
1-15
13 way 5.08mm 007-102
15-19
5 way 5.08mm 007-445
22-38
MSC
17 way 5.08mm 007-452
39-46
V1 8 way 7.62mm 007-454
47-50
V2
4 way 7.62mm 007-171
51-57
7 way 5.08mm 007-447
59-70
12 way 5.08mm 007-109
RS485
Port1 Port2
6 way 5.08mm 007-446
PC Configuration interface lead
(USB type A – USB type B)
016-125
NOTE:- Terminals 20, 21 and 58 are not fitted to the controller.
13.2 PURCHASING ADDITIONAL FIXING CLIPS FROM DSE
Item Description Part No.
Module fixing clips (packet of 4) 020-294
13.3 PURCHASING ADDITIONAL SEALING GASKET FROM DSE
Item Description Part No.
DSE88xx Moulded silicon sealing gasket 020-508
