Deep Sea Electronics Plc DSE8810 User Manual

Specification
26

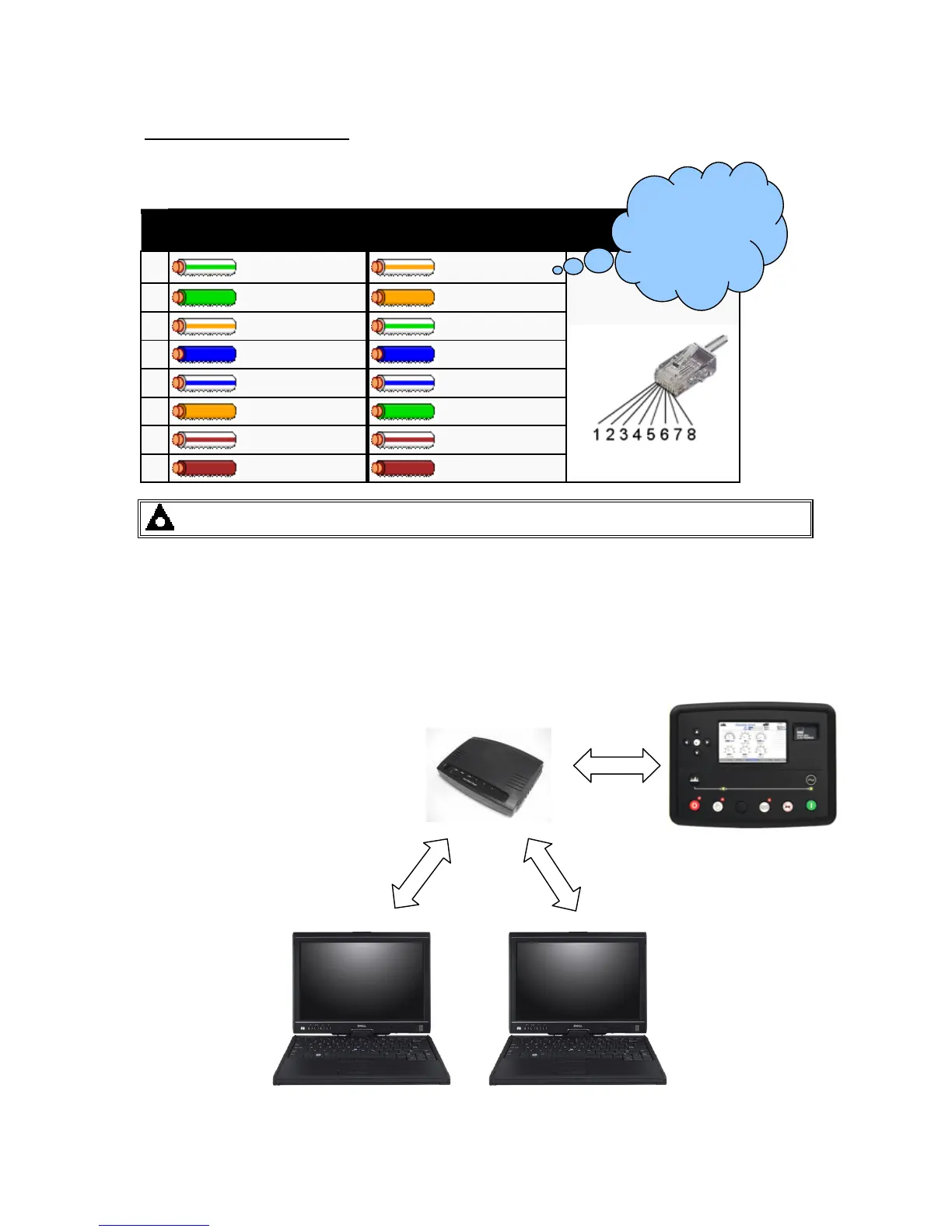

Crossover cable wiring detail
Two pairs crossed, two pairs uncrossed
10baseT/100baseTX crossover
Pi
n
Connection 1 (T568A) Connection 2 (T568B)
1
white/green stripe white/orange stripe
2
green solid orange solid
3
white/orange stripe white/green stripe
4
blue solid blue solid
5
white/blue stripe white/blue stripe
6
orange solid green solid
7
white/brown stripe
white/brown stripe
8
brown solid brown solid
NOTE:- This cable can be purchased from any good PC or IT store.
3.9.6.2 CONNECTION TO BASIC ETHERNET
Requirements
• DSE8800 series module
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• PC with Ethernet port
For the advanced
Engineer, a crossover
cable is a CAT5 cable
with one end
terminated as T568A
and the other end
terminated as T568B.
Ethernet router
or ADSL router
Ethernet cable
