5.3.7 GENERATOR
Contains electrical values of the generator (alternator), measured or derived from the module’s voltage and
current inputs.

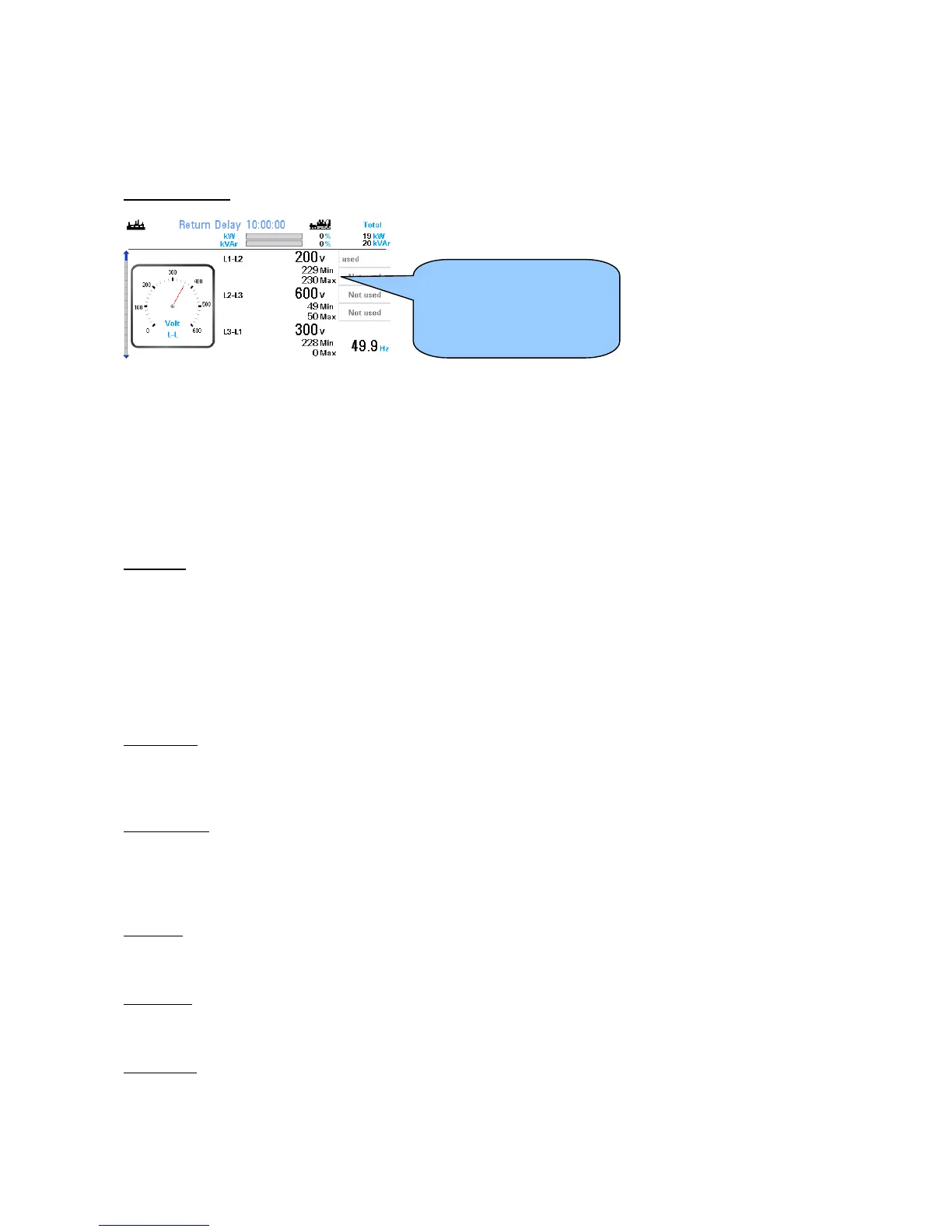

Example image:
• Generator Voltage (ph-ph)
• Generator Voltage (ph-N)
• Generator Frequency
• Generator Current
• Generator Earth Current
• Generator Load (kW)
• Generator Load (kV A)
• Generator Load (kV Ar)
• Generator Power Factor
Averages
• Average Voltage (pn-N),
• Average Voltage (ph-ph)
• Average Current
• Average Load (kW)
• Average Load (kV A)
• Average Load (kV Ar)
• Average Power Factor
AC System
• Generator Configuration (AC System diagram)
• Generator Configuration (Nominals)
Accumulated
• kW h
• kV A h
• kV Ar h
Total kW
• Generator Load (L1 %, L2 %, L3 %, Total %)
Total kV A
• Generator Load (L1, L2, L3, Total)
Total kV Ar
• Generator Load (L1 %, L2 %, L3 %, Total %)
Minimum and Maximum
hold for the selected
instrument.
This can be reset in the
