Deep Sea Electronics Plc DSE8810 User Manual

Specification
28

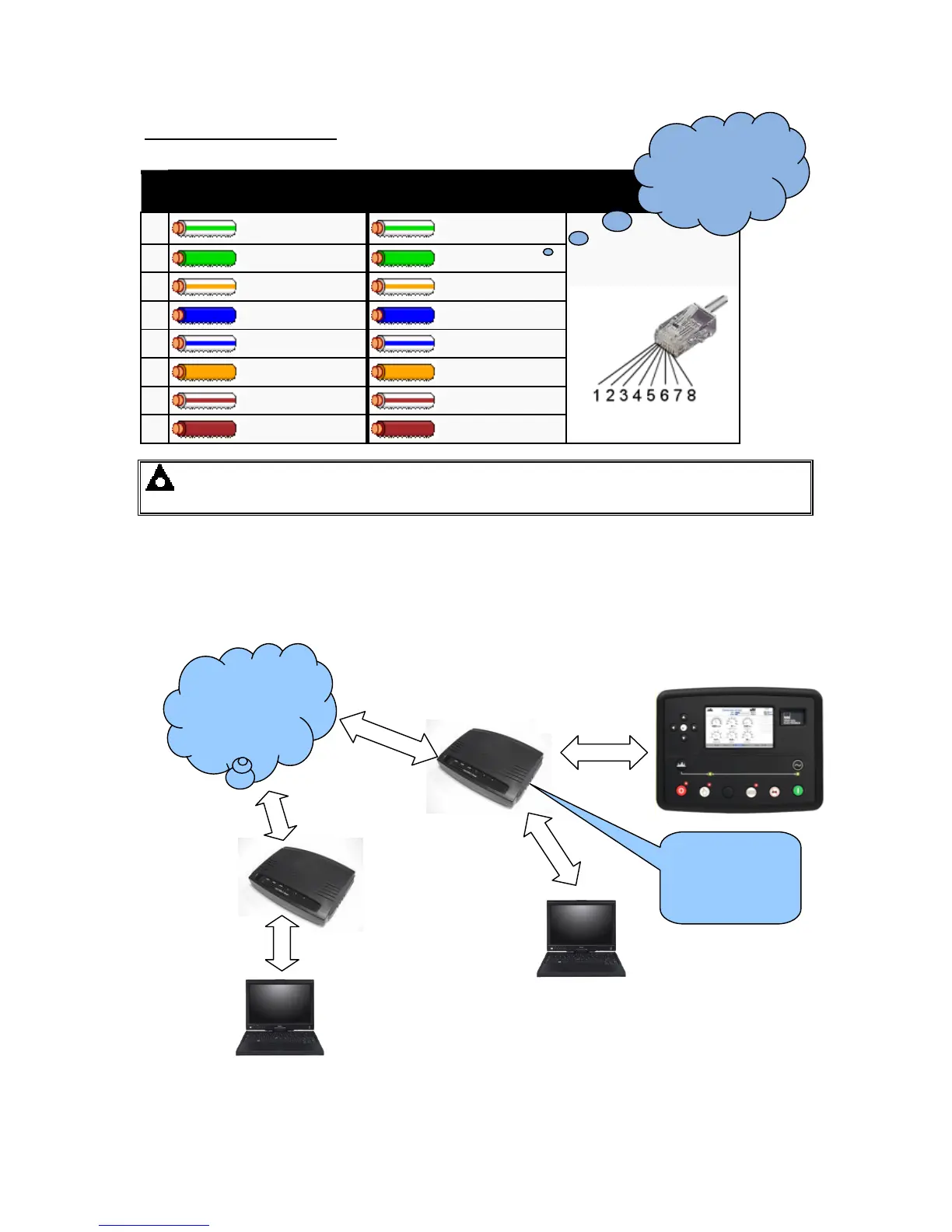

Ethernet cable wiring detail
10baseT/100baseT
Pi
n
Connection 1 (T568A) Connection 2 (T568A)
1
white/green stripe white/green stripe
2
green solid green solid
3
white/orange stripe white/orange stripe
4
blue solid blue solid
5
white/blue stripe white/blue stripe
6
orange solid orange solid
7
white/brown stripe
white/brown stripe
8
brown solid brown solid
NOTE:- DSE Stock a 2m (2yds) Ethernet Cable – Part number 016-137. Alternatively they
can be purchased from any good PC or IT store.
3.9.6.4 CONNECTION TO THE INTERNET
Requirements
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• Working Internet connection (ADSL or DSL recommended)
For the advanced
Engineer, this cable
has both ends
terminated as T568A
(as shown below) or
T568B.
DSL or ADSL
router
Optional ‘Local’
site PC
INTERNET
DSL or ADSL
router
PC remote
from generator
site
The DSL/ADSL
router will route
external network
traffic.
Ethernet cable
