Specification
33
3.13 DIMENSIONS AND MOUNTING
3.13.1 DIMENSIONS
245 mm x 184 mm x 50 mm (9.6” x 7.2” x 2.0”)
3.13.2 PANEL CUTOUT
220mm x 160mm (8.7” x 6.3”)
3.13.3 WEIGHT
0.7kg (1.4lb)
3.13.4 FIXING CLIPS
The module is held into the panel fascia using the supplied fixing clips.
• Withdraw the fixing clip screw (turn anticlockwise) until only the pointed end is protruding
from the clip.
• Insert the three ‘prongs’ of the fixing clip into the slots in the side of the module case.
• Pull the fixing clip backwards (towards the back of the module) ensuring all three prongs of
the clip are inside their allotted slots.
• Turn the fixing clip screws clockwise until they make contact with the panel fascia.
• Turn the screws a little more to secure the module into the panel fascia. Care should be taken
not to over tighten the fixing clip screws.
NOTE:- In conditions of excessive vibration, mount the module on suitable anti-vibration
mountings.

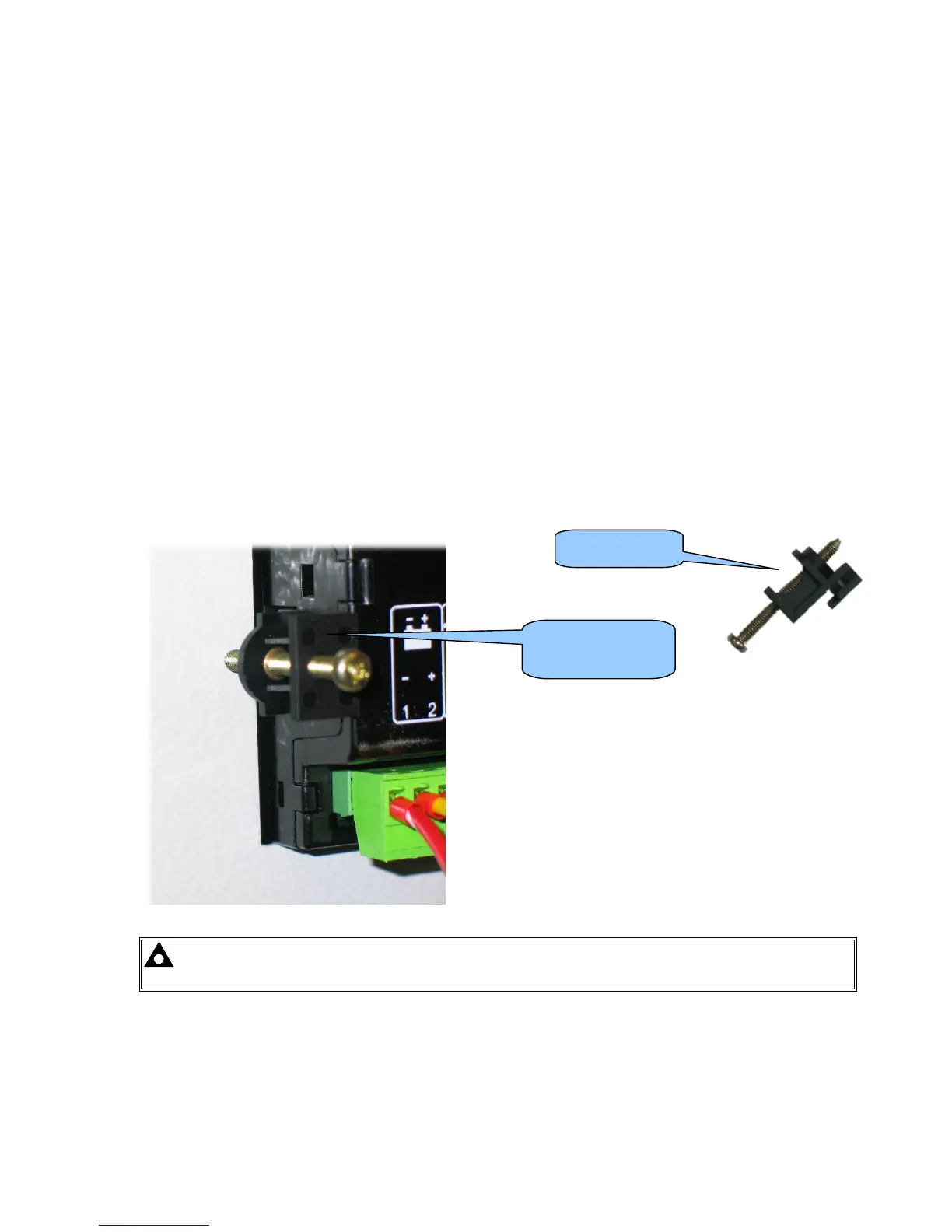

Fixing clip fitted to
module
Fixing clip
