Deep Sea Electronics Plc DSE8810 User Manual

Specification
27

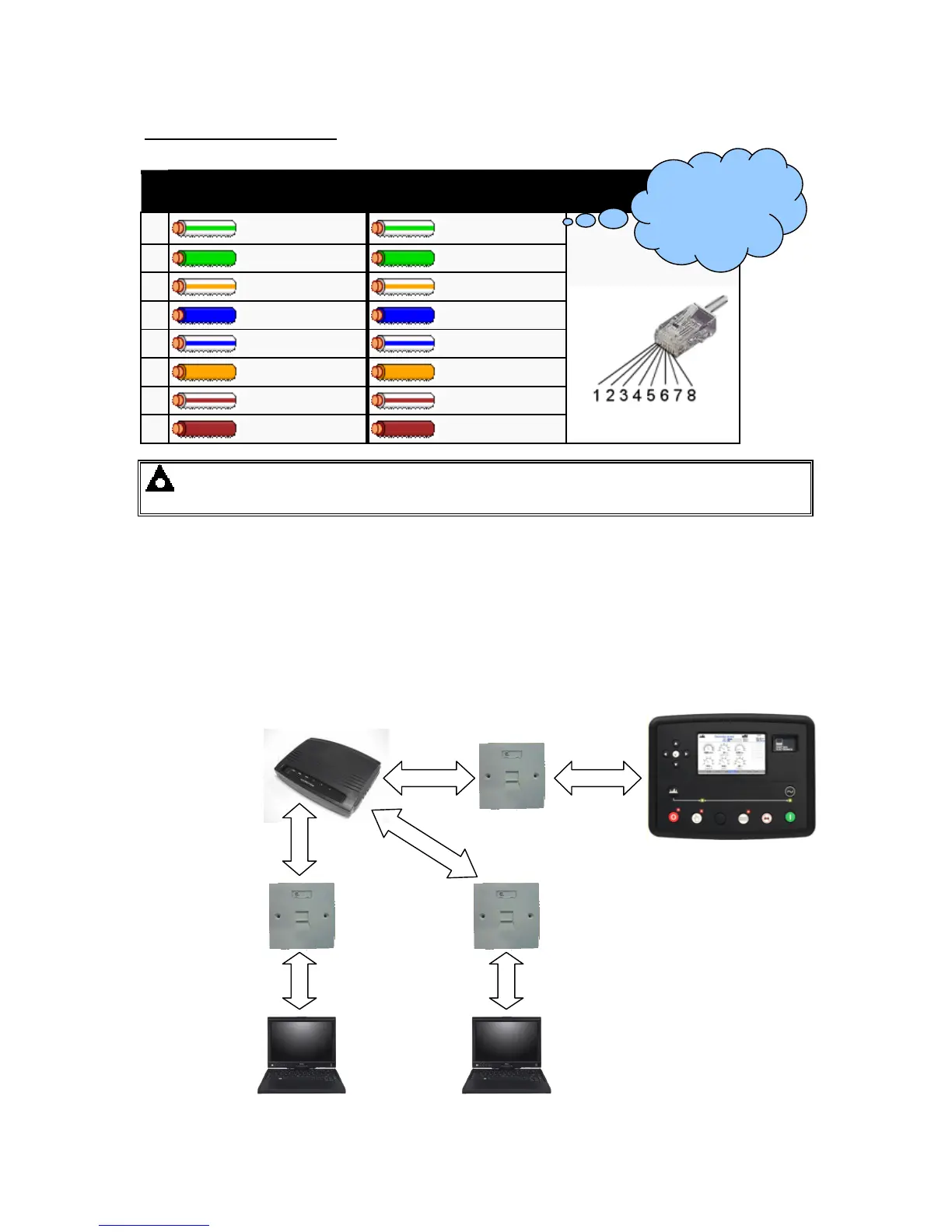

Ethernet cable wiring detail
.
10baseT/100baseT
Pi
n
Connection 1 (T568A) Connection 2 (T568A)
1
white/green stripe white/green stripe
2
green solid green solid
3
white/orange stripe white/orange stripe
4
blue solid blue solid
5
white/blue stripe white/blue stripe
6
orange solid orange solid
7 white/brown stripe
white/brown stripe
8
brown solid brown solid
NOTE:- DSE Stock a 2m (2yds) Ethernet Cable – Part number 016-137. Alternatively they
can be purchased from any good PC or IT store.
3.9.6.3 CONNECTION TO COMPANY INFRASTRUCTURE ETHERNET
Requirements
• DSE8800 series module
• Ethernet cable (see below)
• Working Ethernet (company or home network)
• PC with Ethernet port
For the advanced
Engineer, this cable
has both ends
terminated as T568A
(as shown below) or
T568B.
Ethernet cable
PC Network
wall connection
sockets
Ethernet router
or ADSL router
