Description Of Controls
57

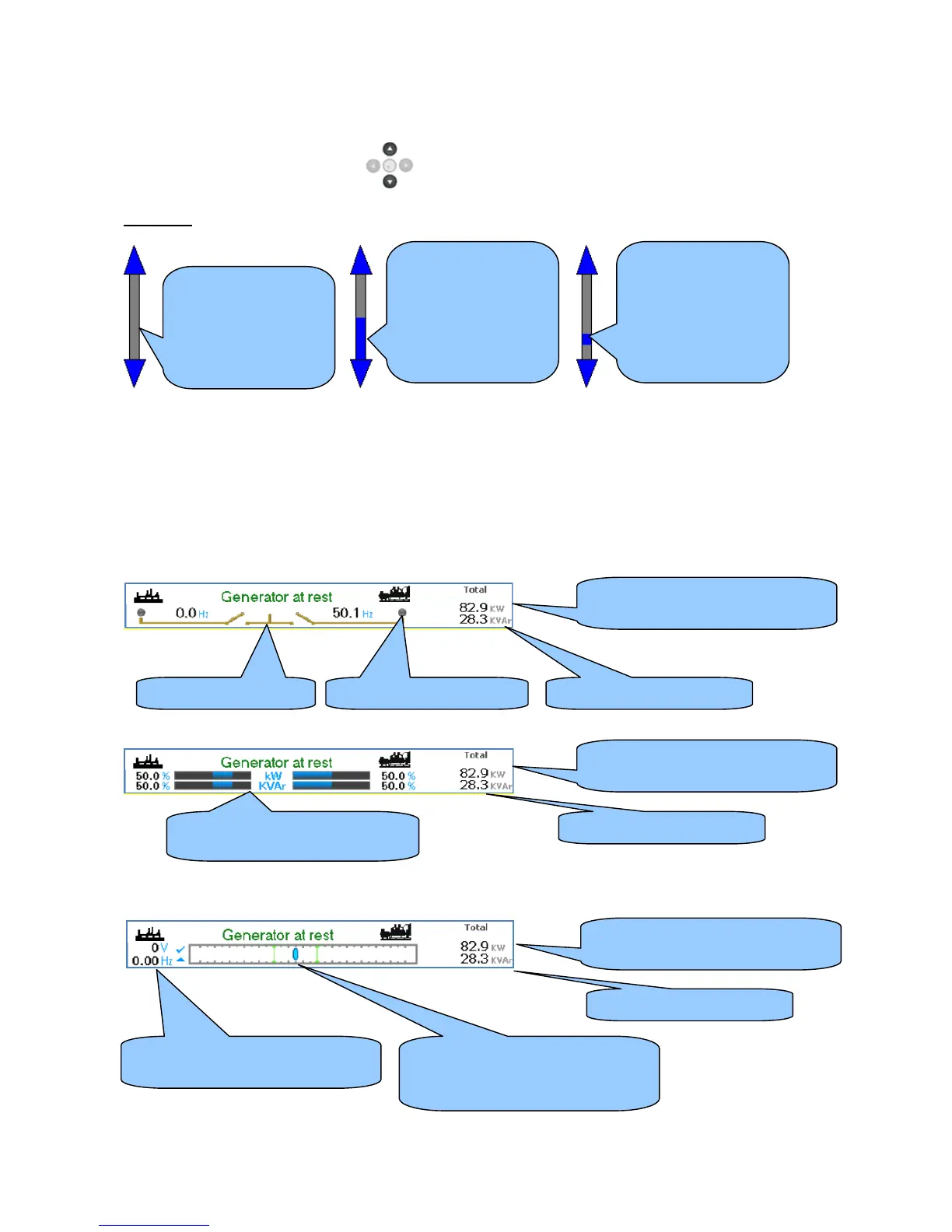

5.3.3 SIDE SCROLL BAR
While a page is being viewed, the scroll bar at the side of the display represents how ‘far down’ the page you are
currently viewing. Pressing the scroll buttons moves up and down the currently selected page.
Examples
The complete order and contents of each information page are given in the following sections
Once selected the page will remain on the LCD display until the user selects a different page, or after an extended
period of inactivity (configurable page timer), the module will revert to the status display.
5.3.4 SUMMARY AREA
An all grey vertical
bar shows there is no
further information to
display, the whole
page is currently
being displayed.
The blue section
indicates that you
are currently viewing
the ‘bottom’ half of a
page. Press scroll
up/down to move
through the page
The blue section
indicates that you
are currently viewing
a small part of a
page. Press scroll
up/down to move
through the page
Summary Area When Configured
to Show Load Switches
Summary Area When Configured
to Show Bar Graph Information
Summary Area During
Synchronising
Actual Generator Loading
Actual Generator Loading
Generator Loading as a
Percentage of Full Load
Voltage Difference Between the
Generator and the Bus
Phase of the Two Supplies. The
‘Barred’ Section is the
Configurable Phase Window.
To Next Page
