5.3.6 ENGINE
In addition to the common display area, the following instruments are displayed on the home page.

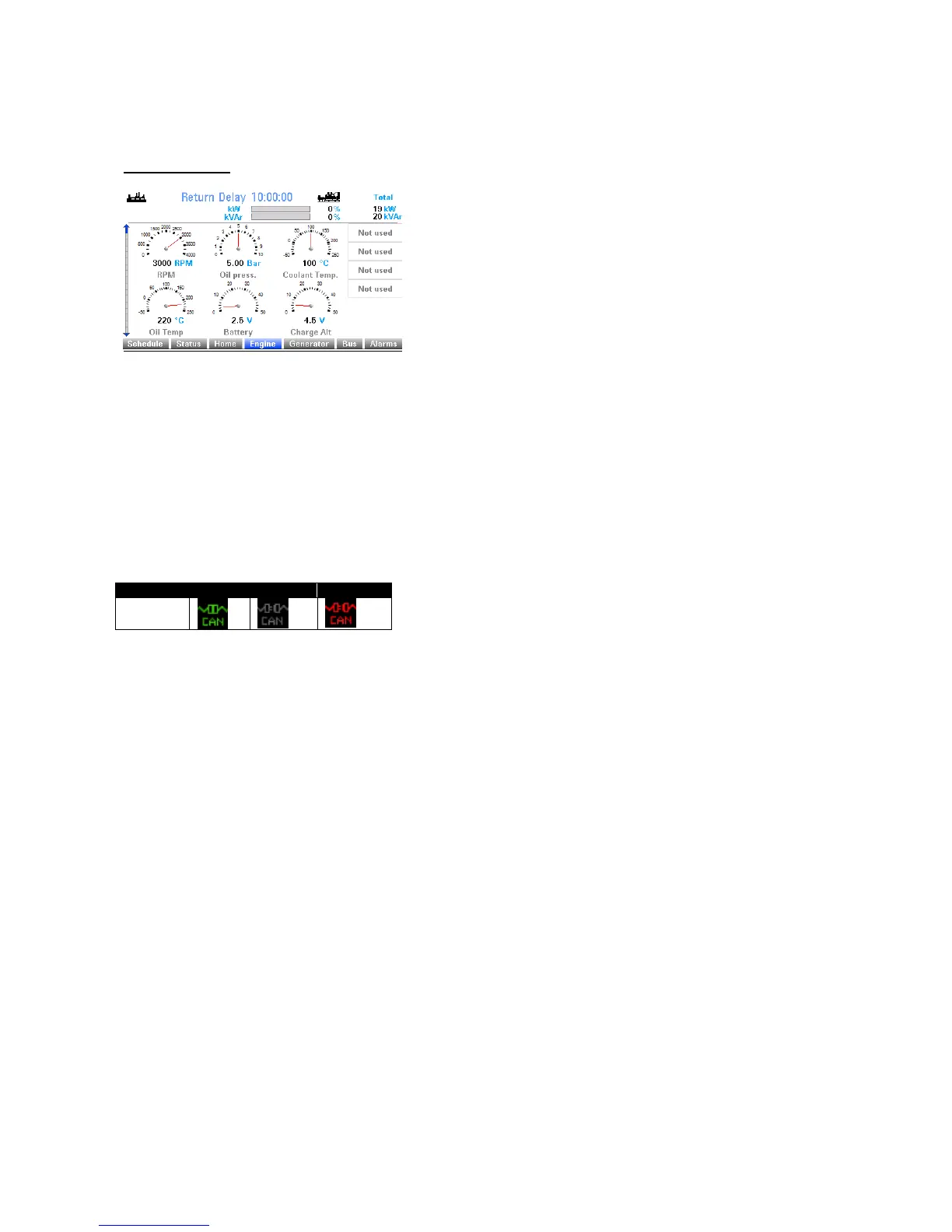

Example image:
• Engine Speed (RPM)
• Oil Pressure
• Coolant Temperature
• Engine Battery Volts
• Charge Alternator Volts
• Engine Hours
• Engine Starts
• Est. Fuel Remaining
• Instrumentation from CAN ECU.*
• Tier 4 “DM1 Lamps” will also be available if used with a Tier 4 suitable engine / ECU.*
• CAN Link Status is also shown* :
Link OK ECU OFF Link LOST
Link Status
*When connected to suitably configured and compatible engine ECU. For details of supported engines see
‘Electronic Engines and DSE wiring’ (DSE Part number 057-004).
To Next Page
