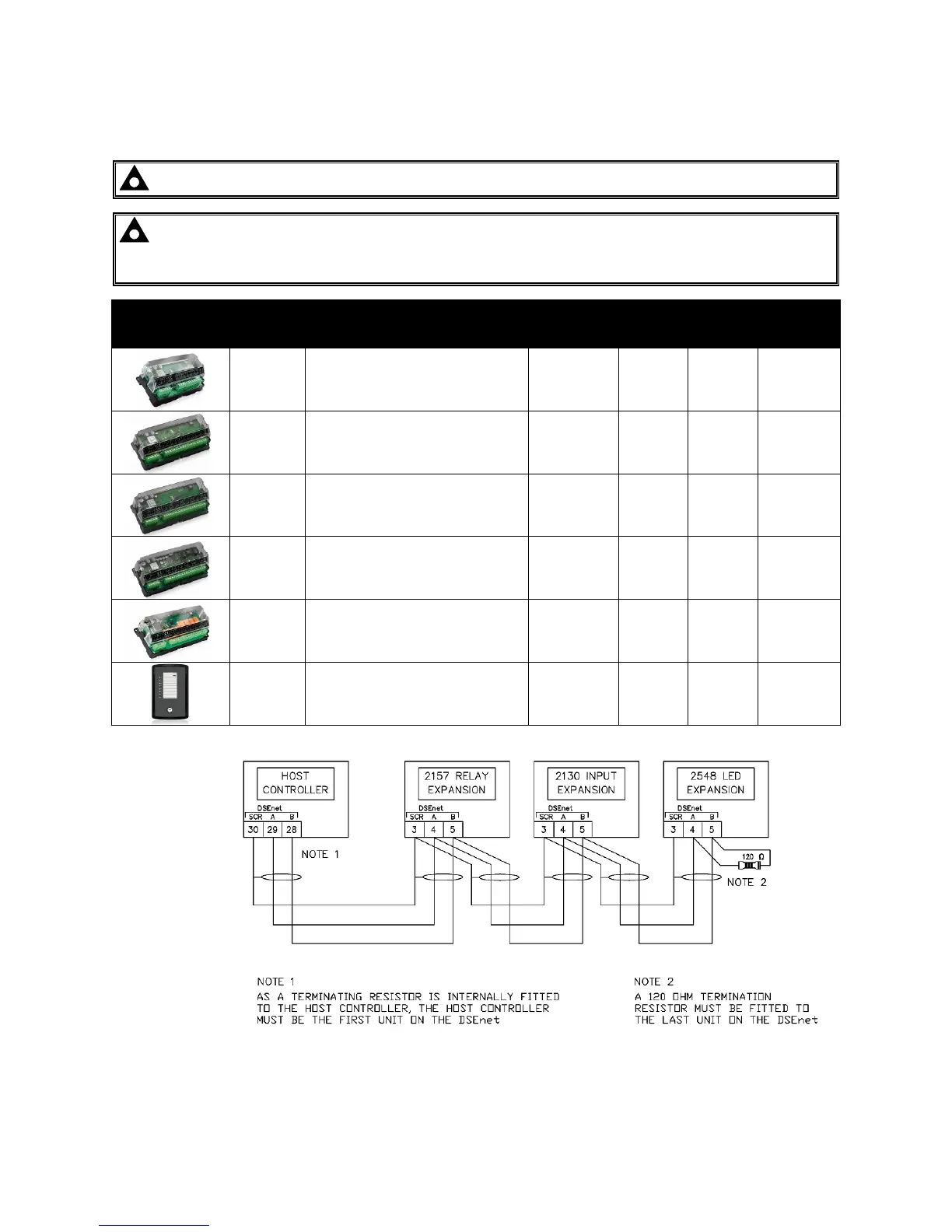

13.4 DSENET EXPANSION MODULES
NOTE:- A maximum of twenty (20) expansion modules can be connected to the DSENet®.
NOTE:- DSENet® utilises an RS485 connection. Using Belden 9841 (or equivalent) cable allows
for the expansion cable to be extended to a maximum of 1.2km.
DSE Stock and supply Belden 9841 cable. DSE Part Number 016-030.
Item Description
DSE Part Numbers
Max No.
supported
Model order
number
Sales
literature
Operator
manual
Installation
Instructions
4
Model DSE2130 input module provides
additional analogue and digital inputs for use
with the controller.
2130-001-00 055-060 057-082 053-033
4
Model DSE2131 Ratio-metric input expansion
module provides additional restive, digital, 0-
10V and 4-20ma inputs for use with the
controller.
2131-001-00 055-115 057-139 053-125
4
Model DSE2133 RTD/Thermocouple input
expansion module provides additional RTD
and thermocouple inputs for use with the
controller.
2133-001-00 055-114 057-140 053-126
4
Model DSE2152 Ratio-metric output
expansion module provides additional 0-10V
and 4-20ma outputs for use with the
controller.
2152-001-00 055-112 057-141 053-134
10
Model DSE2157 expansion relay module
provides eight additional voltage free relays
for use with the controller
2157-001-00 055-061 057-083 053-034
10
Model DSE2548 expansion LED module
provides additional LED indications, internal
sounder and remote lamp test/alarm mute for
use with the controller.
2548-001-00 055-062 057-084 053-032
