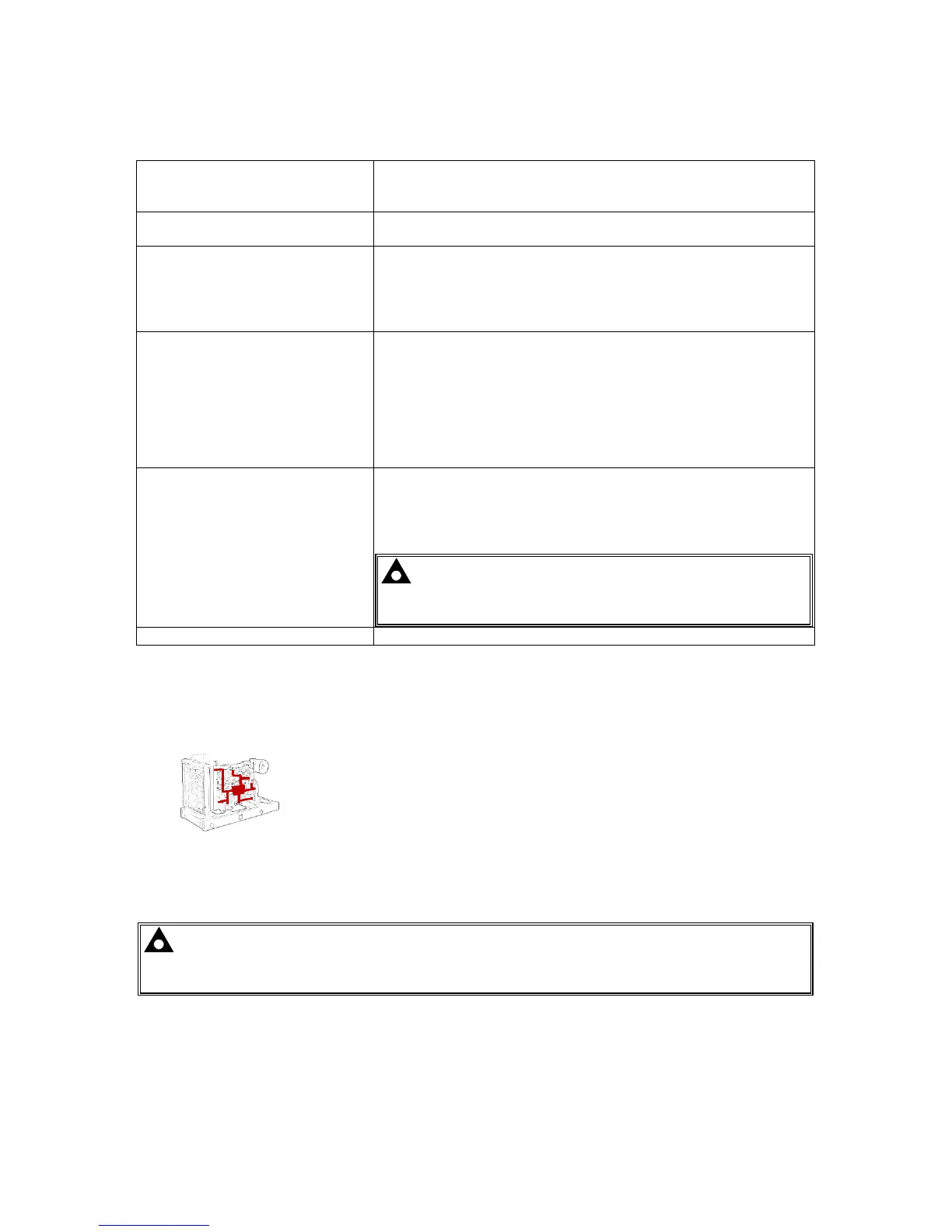

Specification
20
3.8 COMMUNICATION PORTS
USB Port USB2.0 Device for connection to PC running DSE configuration
suite only
Max distance 6m (yards)
Serial Communication A single RS232 and two RS485 ports are both fitted and provide
independent operation
RS232 Serial port
Non – Isolated port
Max Baud rate 115K baud subject to S/W
TX, RX, RTS, CTS, DSR, DTR, DCD
Male 9 way D type connector
Max distance 15m (50 feet)
2 x RS485 Serial ports
Isolated
Data connection 2 wire + common
Half Duplex
Data direction control for Transmit (by s/w protocol)
Max Baud Rate 19200
External termination required (120)
Max common mode offset 70V (on board protection transorb)
Max distance 1.2km (¾ mile)
CAN Port Engine CAN Port
Standard implementation of ‘Slow mode’, up to 250K bits/s
Non-Isolated.
Internal Termination provided (120)
Max distance 40m (133 feet)
NOTE:- For additional length, the DSE124 CAN Extender
is available. Please refer to DSE Publication: 057-116
DSE124 Operator Manual for more information.
Ethernet Auto detecting 10/100 Ethernet port.
3.9 COMMUNICATION PORT USAGE
3.9.1 CAN INTERFACE
Modules are fitted with the CAN interface as standard and are capable of
receiving engine data from engine CAN controllers compliant with the
CAN standard.
CAN enabled engine controllers monitor the engine’s operating
parameters such as engine speed, oil pressure, engine temperature
(among others) in order to closely monitor and control the engine. The industry standard
communications interface (CAN) transports data gathered by the engine controller interface. This
allows generator controllers to access these engine parameters with no physical connection to the
sensor device.
NOTE:- For further details for connections to CAN enabled engines and the functions
available with each engine type, refer to the manual Electronic Engines and DSE Wiring.
Part No. 057-004
