Protections
81
7.2 INDICATIONS
Indications are non-critical and often status conditions. They do not appear on the LCD of the module
as a text message. However, an output or LCD indicator can be configured to draw the operator’s
attention to the event.

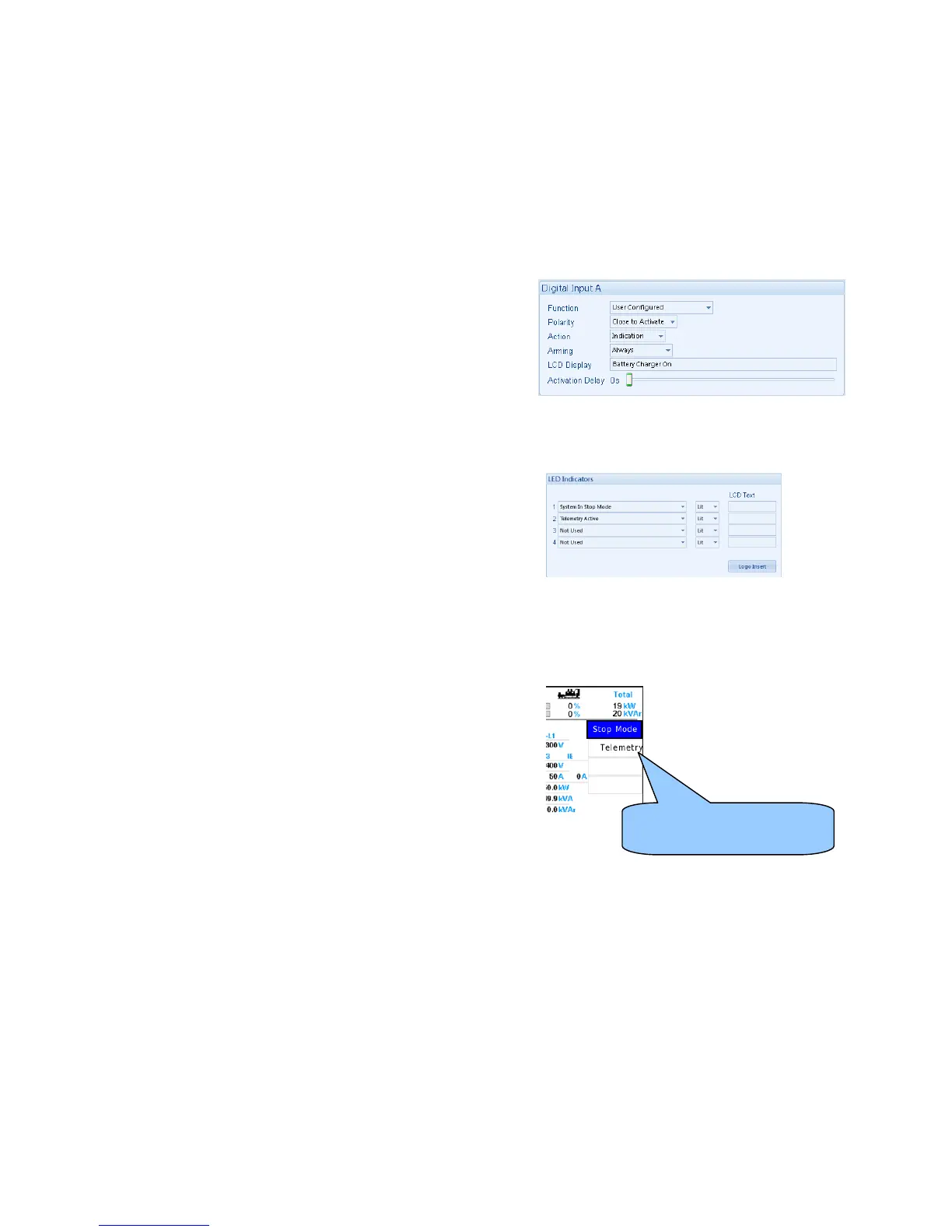

Example
• Input configured for indication.
• The LCD text will not appear on the module display
but can be added in the configuration to remind the
system designer what the input is used for.
• As the input is configured to Indication there is no
alarm generated.
• LCD Indicator to make LCD1 illuminate when the
module is in Stop Mode.
• The Insert Card Text allows the system designer to
print an insert card detailing the LCD function.
• Sample showing operation of the LCD indicators.
