3.9.2 USB CONNECTION
The USB port is provided to give a simple means of connection between a PC and the controller.
Using the DSE Configuration Suite Software, the operator is then able to control the module, starting
or stopping the generator, selecting operating modes, etc.
Additionally, the various operating parameters (such as output volts, oil pressure, etc.) of the remote
generator are available to be viewed or changed.

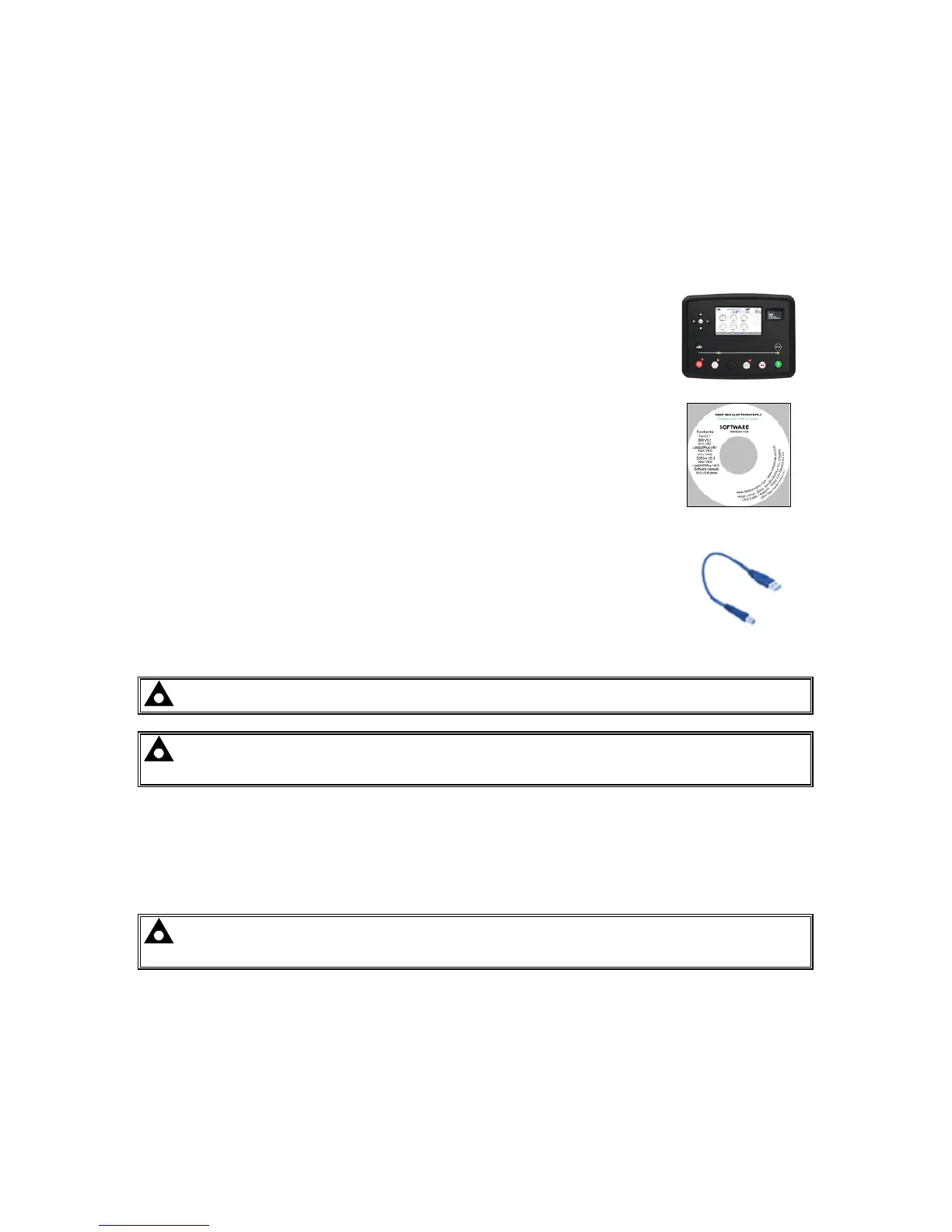

To connect a module to a PC by USB, the following items are required:
• DSE8800 series module
• DSE Configuration Suite PC Software
(Supplied on configuration suite software CD or available from
www.deepseaplc.com).
• USB cable Type A to Type B.
(This is the same cable as often used between a PC and a USB
printer)
DSE can supply this cable if required :
PC Configuration interface lead (USB type A – type B) DSE Part No
016-125
NOTE:- The DC supply must be connected to the module for configuration by PC.
NOTE:- Refer to DSE8800 Series Configuration Suite Manual (DSE part 057-164) for further
details on configuring, monitoring and control.
3.9.3 USB HOST-MASTER (USB DRIVE CONNECTION)
USB Type A connection for USB Host facility for USB storage device for data recording.
Maximum size of externally storage device is 16Gb.(see viewing the instrument pages)
NOTE:- Refer to DSE8800 Series Configuration Suite Manual (DSE part 057-164) for further
details on configuring, monitoring and control.
