Deep Sea Electronics Plc DSE8810 - Dse8810 3 Phase, 4 Wire with Restricted Earth Fault Protection

Installation
50

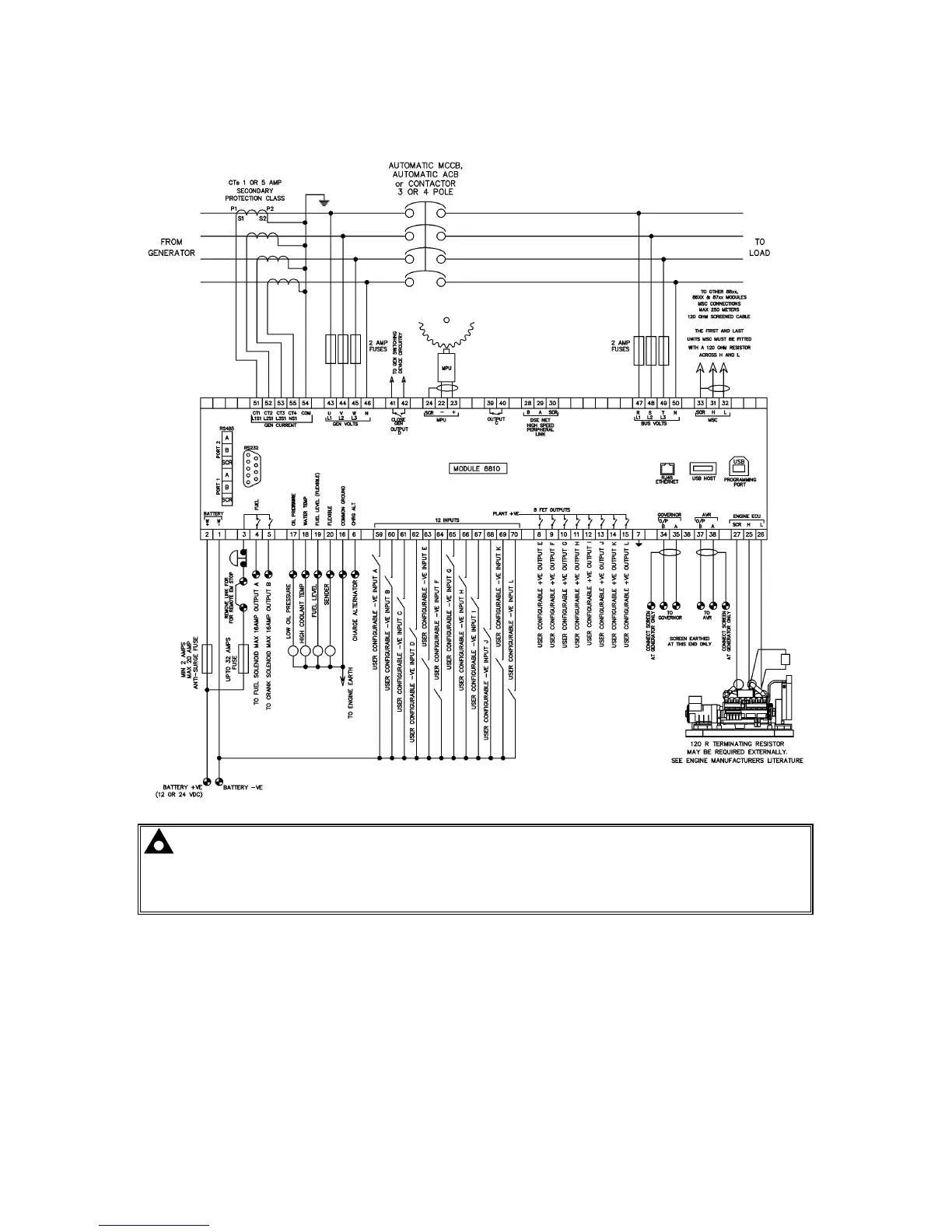

4.2.1 DSE8810 3 PHASE, 4 WIRE WITH RESTRICTED EARTH FAULT PROTECTION
NOTE:- Earthing the neutral conductor ‘before’ the neutral CT allows the module to read
earth faults ‘after’ the CT only (Restricted to load / downstream of the CT)
Earthing the neutral conductor ‘after’ the neutral CT allows the module to read earth faults
‘before’ the CT only (Restricted to generator / upstream of the CT)
