Specification
25
3.9.6 ETHERNET
The module is fitted with ETHERNET socket for connection to LAN (local area networks)
Description
1
TX+
2
TX-
3
RX+
4
Do not connect
5
Do not connect
6
RX-
7
Do not connect
8
Do not connect

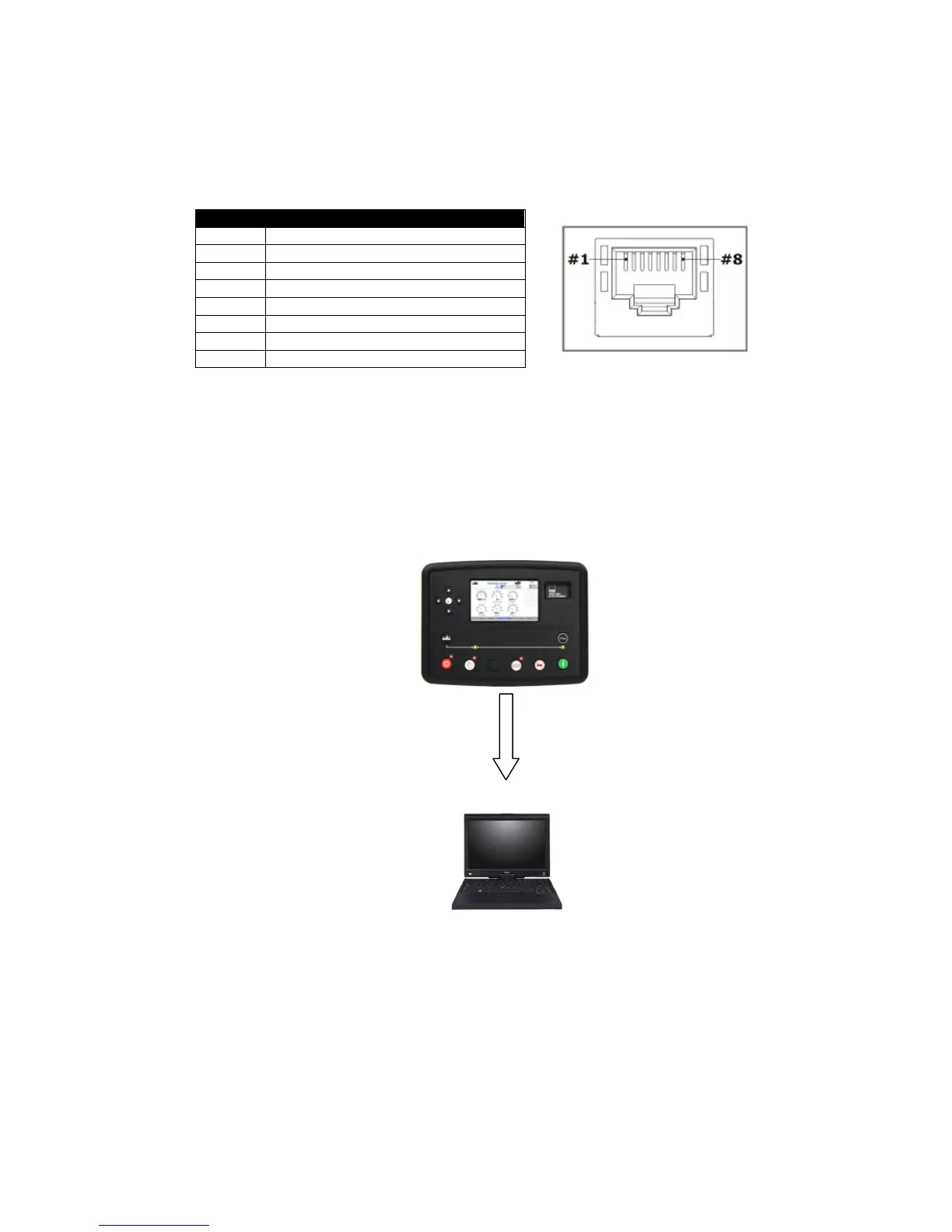

3.9.6.1 DIRECT PC CONNECTION
Requirements
• DSE8800 series module
• Crossover Ethernet cable (see Below)
• PC with Ethernet port
Crossover
network cable
