Installation

CT CONNECTIONS

p1,

or K is the primary of the CT that ‘points’ towards the GENERATOR

p2,

or L is the primary of the CT that ‘points’ towards the LOAD

s1 is the secondary of the CT that connects to the DSE Module’s input for the CT measuring

(I1,I2,I3)

s2 is the secondary of the CT that should be commoned with the s2 connections of all the other CTs

and connected to the CT common terminal of the module.

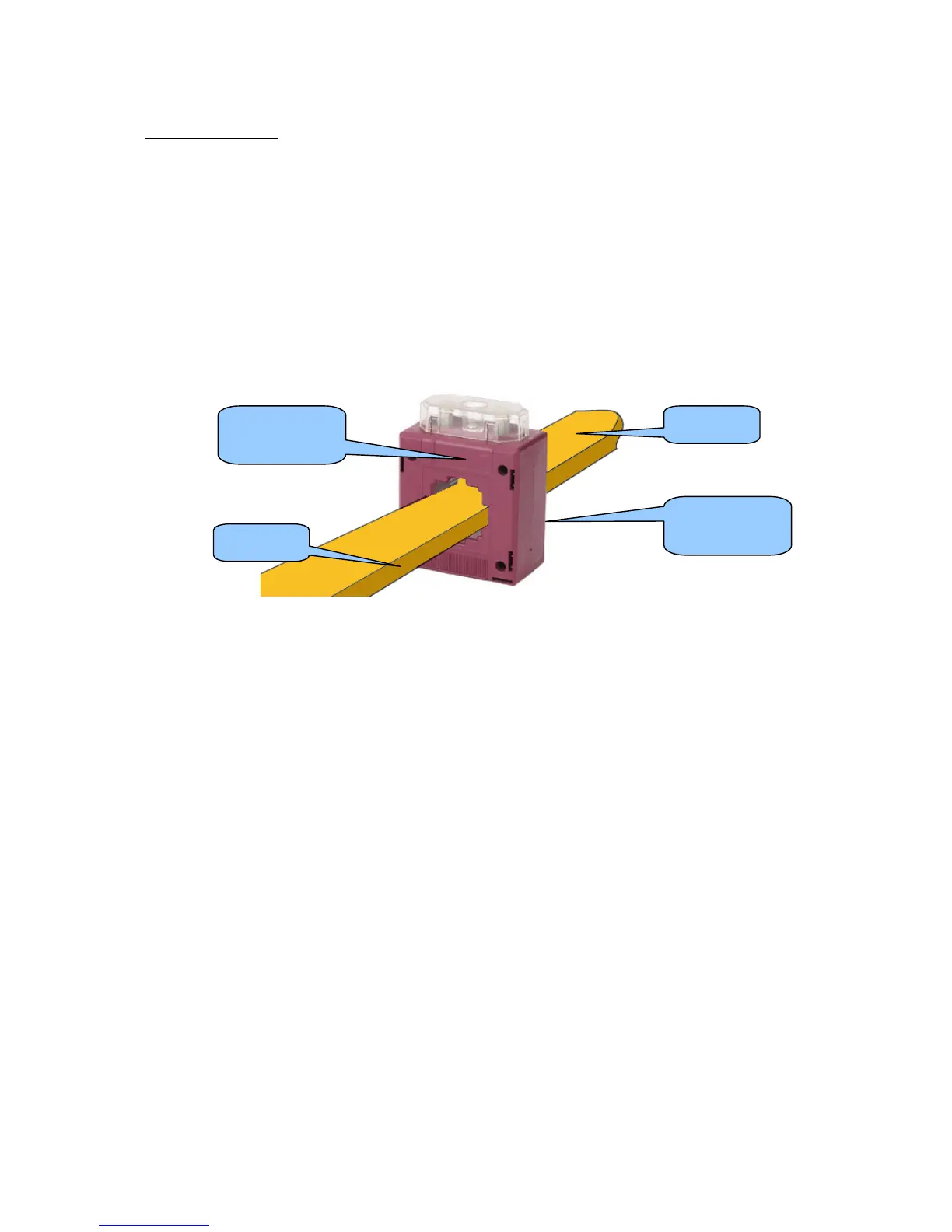

CT labelled as

p1,

or K

CT labelled as

p2,

or L

To Supply

To Load
