Manual DEHLER 39
16 - 72
2.2 Transport measurements

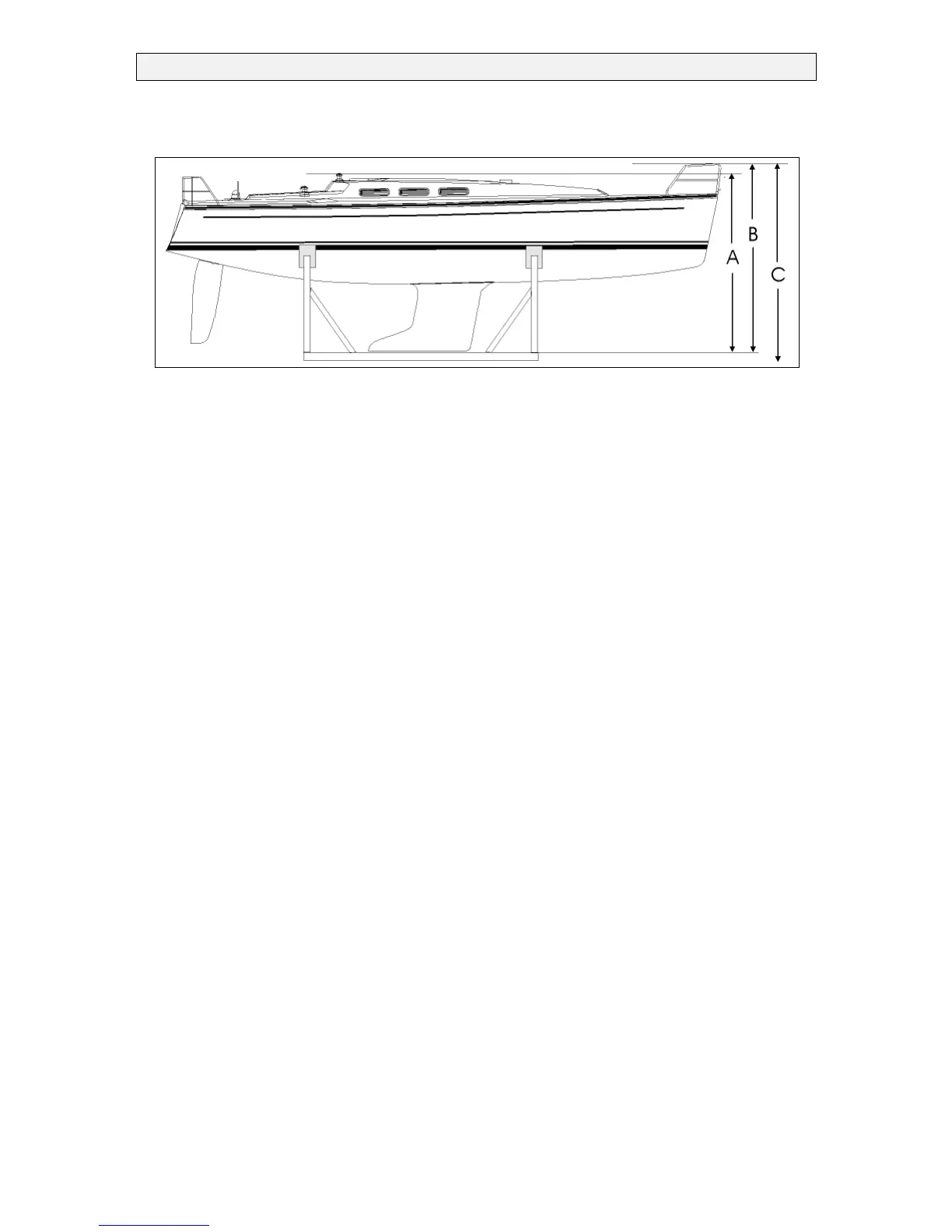

FIGURE.: TRANSPORT MEASUREMENTS
Standard keel:
A = Transport height without bow basket and helm 3.81m
B = Transport height with bow basket 4.02 m C = Transport height with support 4.18 m
Regatta keel:
A = Transport height with bow basket and helm 4.18 m
B = Transport height with 4.39 m C = Transport height with support 4,50 m
Transport width, see main data
2.3 Dimensions of sails
Mainsail 44.0 m²
Frontsail from 34,7 till 115 m²
2.4 Weights
Weight without load- Standard keel Gempty 7 800 kg
Weight without load Regatta keel Gempty 7 150 kg
Max. weight with standard keel
V
max
approx. 9 800 kg
Max. weight With Regatta keel
V
max
approx. 9 150 kg
Keel weight standard keel Gs 2,945 kg
Keel weight regatta keel Gs 2,295 kg
2.5 Engine system
Manufacturer YANMAR, Type 3GM30 FC 27 hp
Optional 3JH3CE 40 hp
2.6 Electrical system
2.6.1 230 V Alternating current
The Dehler 39 is equipped with a shore connection system to charge the batteries and to
ensure that the hot water supply works even when mooring at a port. Additional 230 V plugs
complete the system.
