Dehler 39 - Figure.: Fuel Pipe

Manual DEHLER 39
30 - 72
Components
1. Ventilation
2. Filling cap
3. Fuel tank
4. Tank transmitter
cylinder
5. Return pipe
6. Pump heating
7. Filter
Water condenser
8. Suction pipe
9. Diesel pipe
Heating
10. On-board diesel
engine
11. Fast shut-off valve

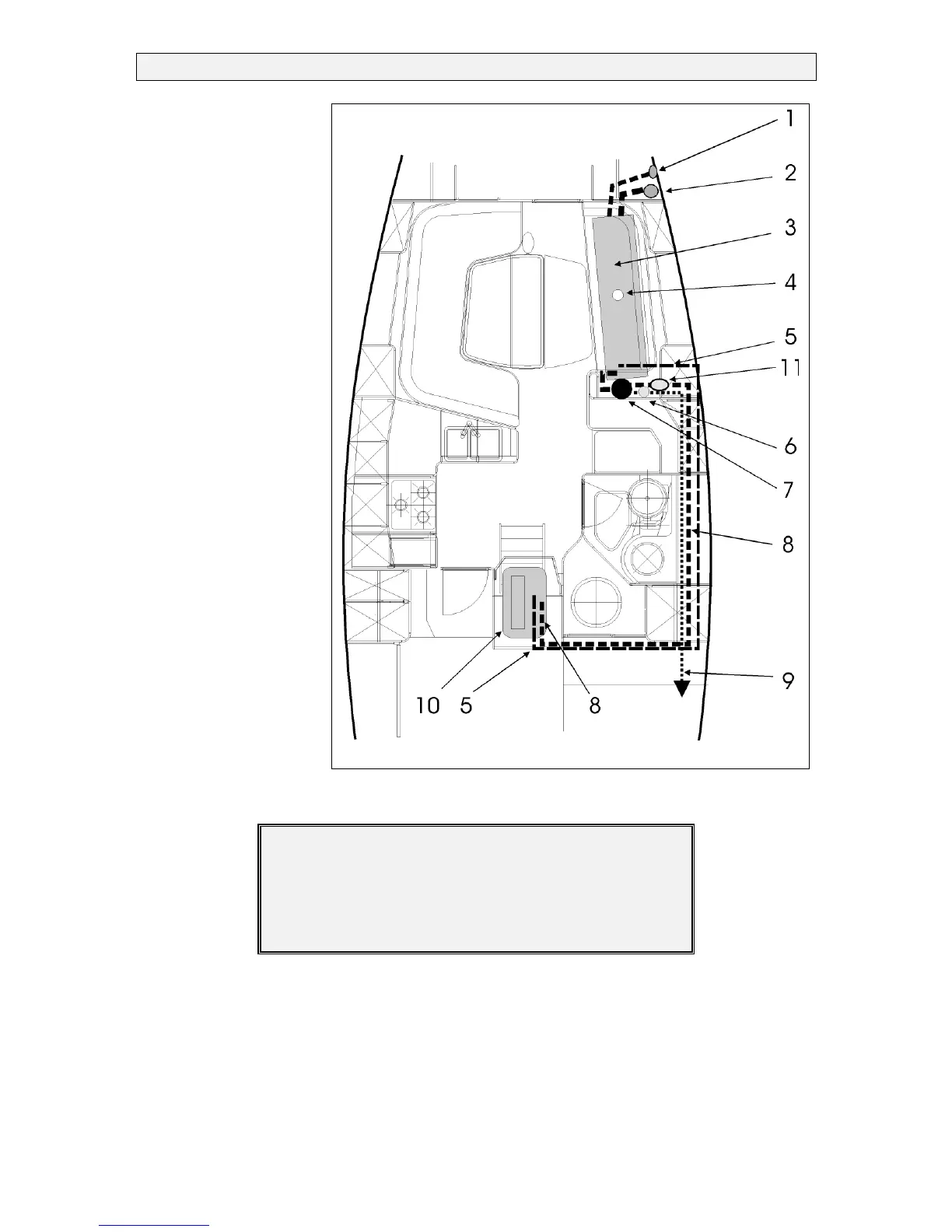

FIGURE.: FUEL PIPE SYSTEM
LOOK OUT
A perfect running of the engine is only possible with a
clean fuel. Therefore it is absolutely necessary to
regularly check and clean the filter and water condenser.
