Manual DEHLER 39
34 - 72
4.2 Fresh water, hot
A SIGMAR heat exchanger with a
20 l capacity is installed for the
production of hot water. You’ll
find it in the starboard rear storage
space.

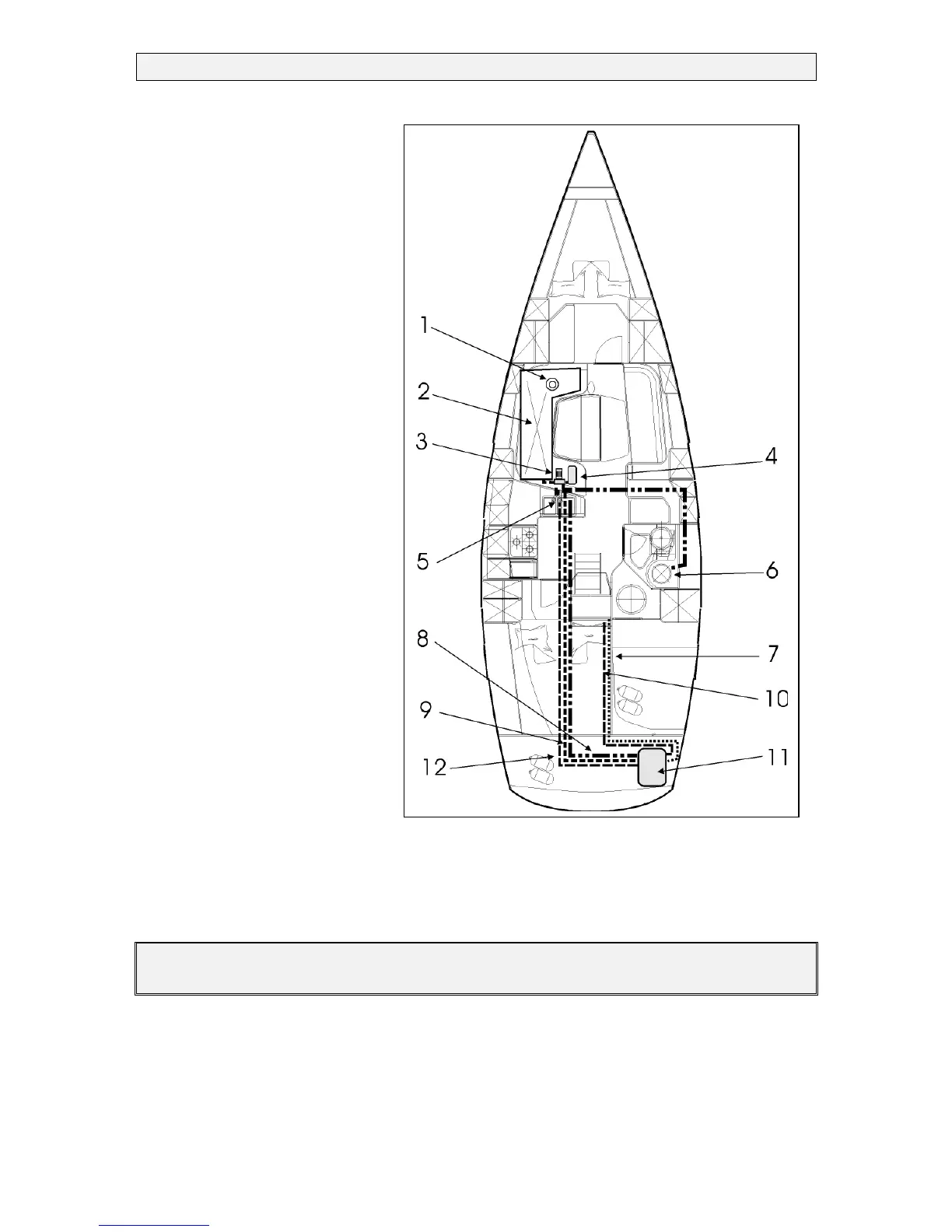

Components
1 Checking cover with
tramsmitter cylinder for tank
indicator
2 Polyurethane water tank
3 Pressure water pump
4 Pressure balancing deposit
5 Sink tap
6 Wash-basin tap
7 Hot water supply
Engine supply
8 Hot water pipe
(black)
9 Cold water supply tank
10 Hot water supply
Engine return
11 Heat exchanger
FIGURE.: HOT WATER
12 Drainage pipe heat exchanger
From time to time, you should replace the water in the tank. In addition you can add
commercial water treatment products, for example Micropur, to the water.
The engine two-circuit cooling gets used once as heat source. Since the engine is only
foreseen to be used in calm weather and for manoeuvring in harbours, the hot water storage
heater/heat exchanger is also equipped with a 1200 Watt electric heating cartridge, which in
harbours can be used with 230 V alternating current via the shore connection. You will find
the switch in the space under the navigation table.
