Manual DEHLER 39
45 - 72
4.6.9 Fuse bars/Switch bars
On the foldable wiring diagram you will equally find the fuse and switch bars with the same
numbers. In this chapter we want to show you the setup of fuse and switch bars and how to
find them on your boat.
1. Switch bar closet room
The switch bar Nº 1 is only
found on the 3-Cab. boat
2. Switch bar closet room
starboard
After removing the upper ABS
cover, you get access to the
switch bar Nº 2
3. Switch bar closet room port side
After removing the upper ABS
cover, you get access to the
switch bar Nº 3
4. Switch bar back railing
starboard
We installed switch bar Nº 4 at
the board wall before the
construction iron support below.
5. Switch bar settee
Switch bar No 5 is installed
under the quilting at the rear end
of the tank.
6. Switch bar closet room
After dismounting the cover
shelf above the closet, you get
access to the switch bar No 6.
7. Fuse bar navigation room
Behind the screwed navigation
plate you’ll find the fuse bar Nº
7.
8. Switch bar above the engine
room
We installed switch bar no 8 in
the big fuse room behind the
companion way
9. Switch bar in stern storage
space
We installed switch bar No 9 above the heating on the board wall.

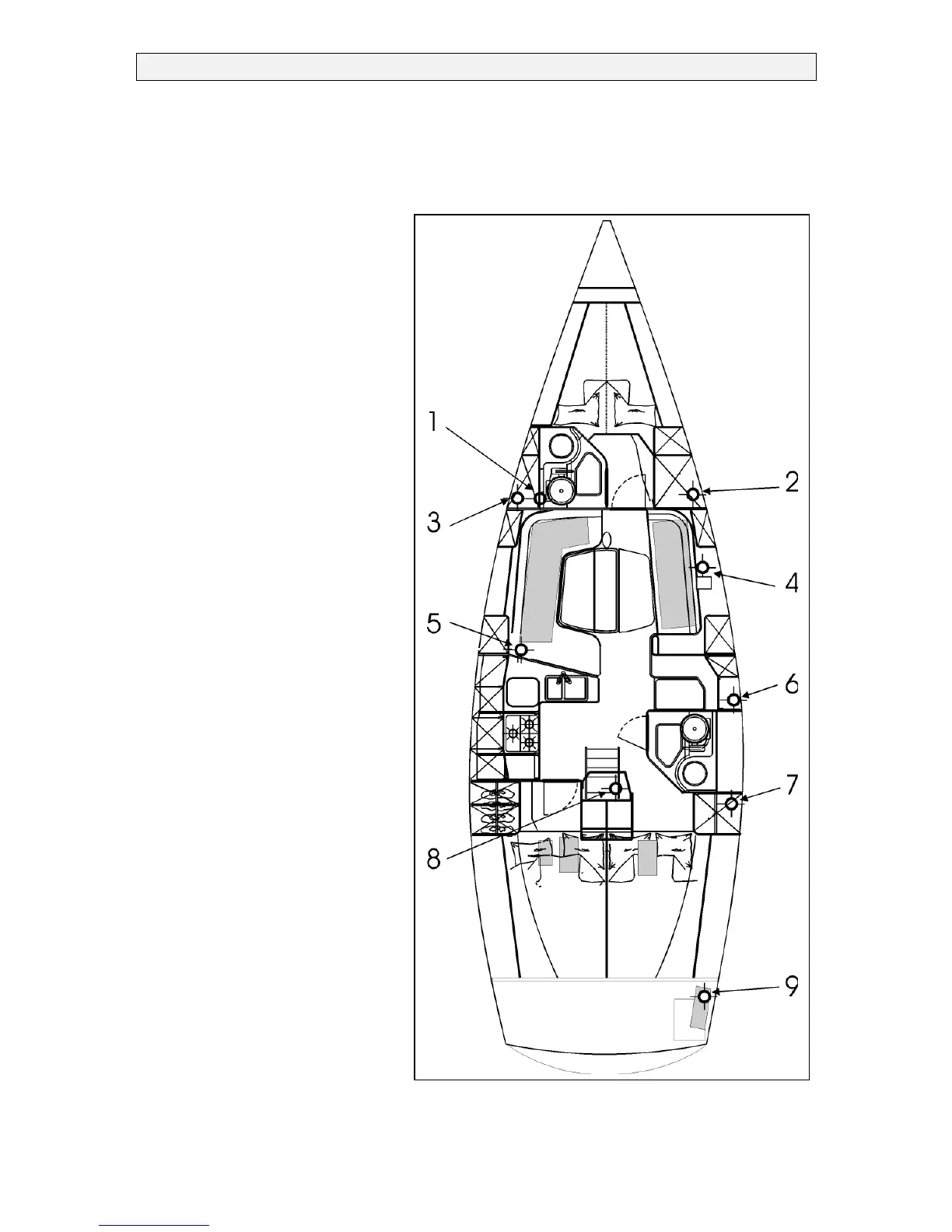

FIGURE.: FUSE BARS
