4.7 Bilge systems
4.7.1 Anchor locker
The anchor locker is watertight and placed off-board in front of the boat through an
opening.
4.7.2 Cockpit
The cockpit gets drained through the bilge outlet in the helm hollow and through the rear
openings on the mirror edge of the cockpit. See also Page 60/61.
Components
1. Electrical bilge pump
2. Suction snout mechanical
pump
3. Return check valve
4. Bilge pipe E – Bilge pump
5. Bilge pipe mechanical pump
6. Mechaniical pump
7. Outlet mechanical pump
8. Outlet electric pump
4.7.3 Hand bilge pump
The suction filter is installed under
the cabin table in the bilge (1). A
return check valve avoids the
return of the sucked bilge water.
Through a flexible hose it gets to
the Whale hand bilge pump with a
capacity of 90 l/min, mounted on
the bulkhead wall of the port side
locker. The outlet is placed on the
port side cockpit wall.
The handling lever, fixed in the
port side locker, is easily
accessible.

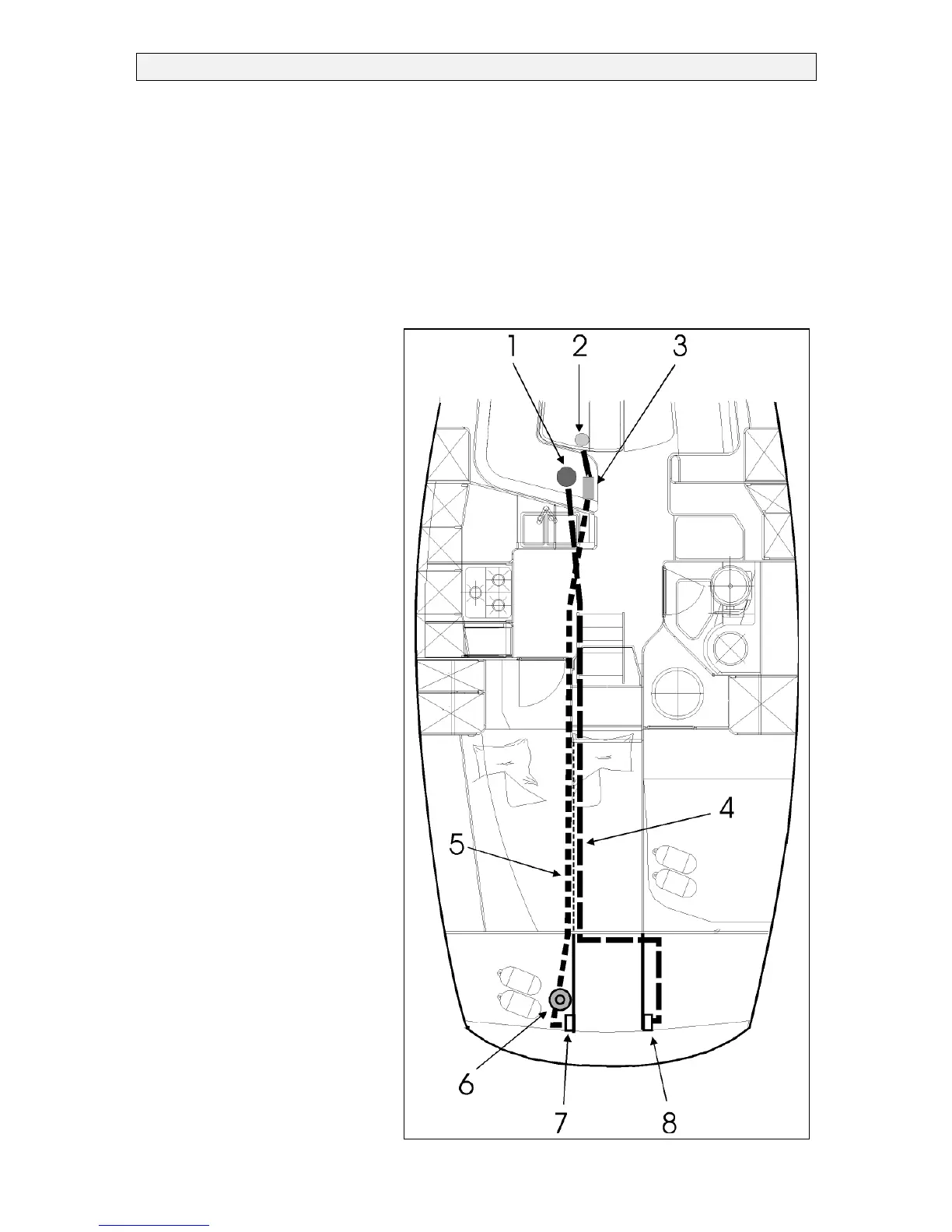

FIGURE.: BILGE SYSTEMS
