7 . Board outlets, sea valves
7.1 >2 Cab. and 3 Cab.-Version
Holes under the waterline are possible weak points, therefore we paid a lot of attention to
them.
Because of the different cabin setups and the second shower room on the bow, the number of
board outlets increases.
The board outlets are made of a GL tested brass alloy and where necessary equipped with a
fast shut-off ball valve. This basic setup is completed by a fitting hose connection support on
the hose side of each valve. Each hose pipe is tightened by two braces.
List of board outlets
2-Cab.- and 3-Cab. distribution
⇐ ⇒
1. Board outlet 2“ for log
2. Board outlet 2“ for echosounder
3. Board outlet ¾“
with ball valve
Discharge wash-basin
4. Board outlet ¾", with ball valve,
Supply toilet
5. Board outlet 1 ¼ with ball valve
discharge holding tank or direct
toilet
6. Board outlet ¾" with ball valve
Discharge shower
7. Board outlet 1¼“ with ball valve
Discharge sink
8. Valve for cooling water intake
at the saildrive head
9. Board outlet ¾", discharge
helm hollow
10. Exhaust outlet 2 "
11. Board outlet ¼",discharge
for mechanical bilge pump
12. Board outlet 1 ¼", discharge
electrical bilge pump

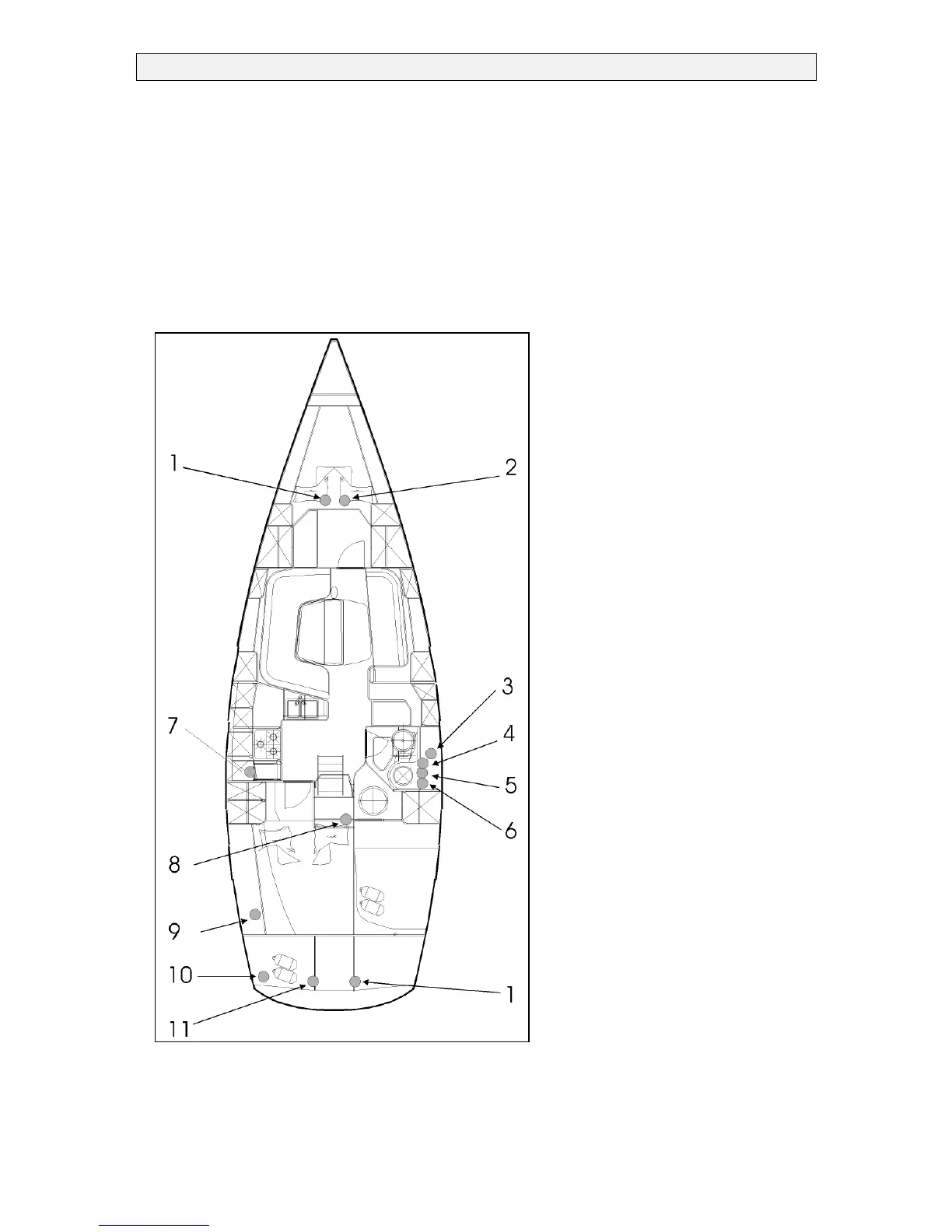

FIGURE.: BOARD OUTLETS 2-
CAB.
