Manual DEHLER 39
21 - 72

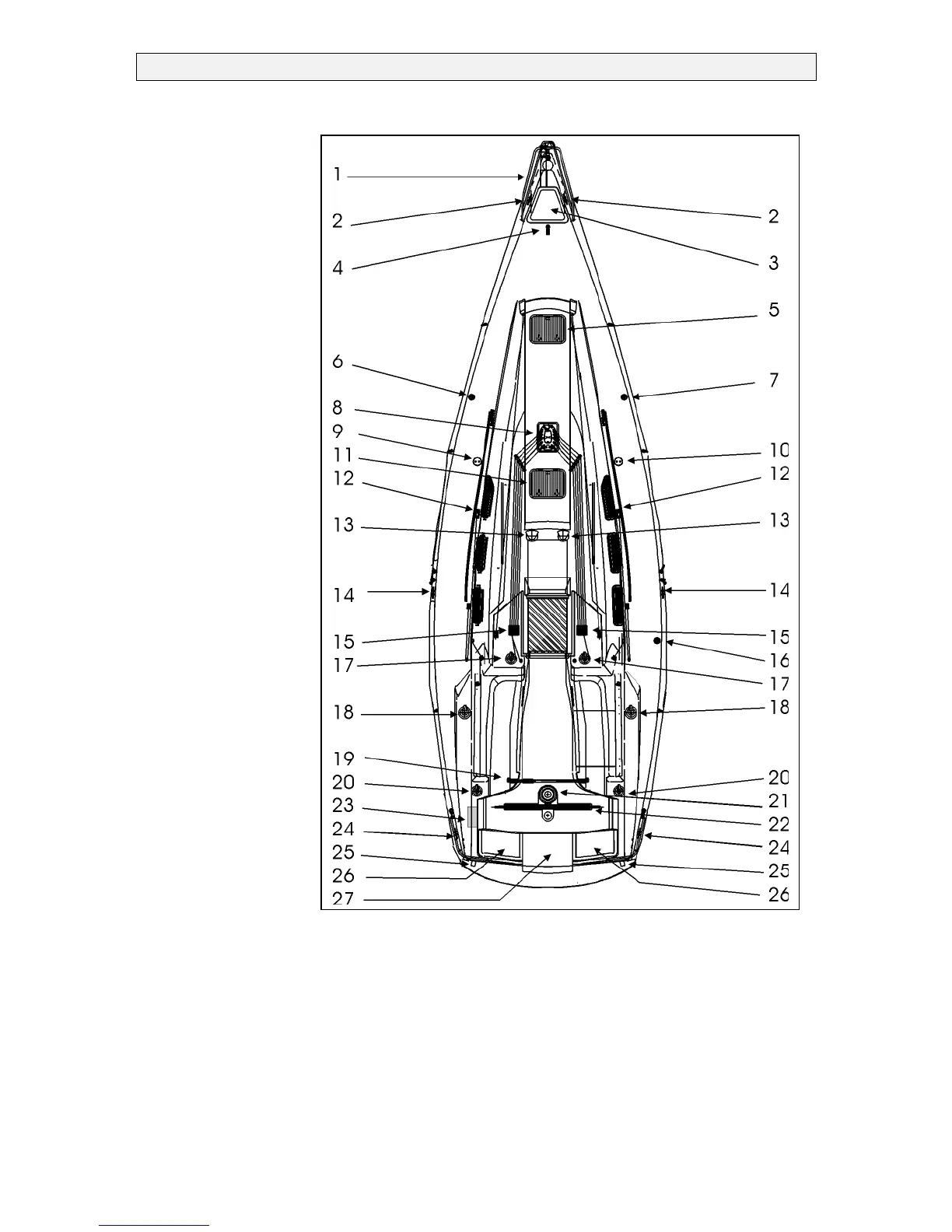

3.3 Deck drawing
Components
1. Bow basket
2. Bow notches
3. Anchor entrance
cover
4. Kicking strap
turnaround
5. Front hatch
( Escape hatch )
6. Filling snout
Water
7. Filling cap
Diesel
8. Mast rudder-hole
9. .Shroud chainplate
port
10. Shroud chainplate
stern
11. Cabin hatch
12. Genua slide
13. Deck ventilator
14. Spring notches
15. Lever clamps
16. Waste water tank-
Suction cap
17. Halyard winches
18. Genua winches
19. Traveller
20. Spinnaker winches
or main sheet
21. Steering column
22. Helm FIGURE.: DECK DRAWING
23. Gas tank
24. Rear notches
25. Backstay chainplates
26. Storage space cover
27. Foldable helmsman’s seat with space for the lifeboat under the seat
