6 Heating (optional):
To enable you to get more independent of the weather conditions and so extend the sailing
season and to create a good inner climate in the Dehler 39, you can install a Webasto Air Top
5000D diesel heating. The heating is installed at the starboard side in the stern storage space
and accessible through the starboard stern flap door. See the manufacturer’s Instructions for
Use
Combustion air
The angle chimney for combustion air
got installed on the starboard mirror.
Hot air
Over the suction intake of the heating
the air in the boat gets sucked into and
heated in the heat exchanger. Then the
air is guided throug a pipe system
towards four outlets in the cabin, bow,
rear cabin and shower room: The
quantity of air can be adjusted on all hot
air outlets, except in the cabin.
6.1 Temperature control
The control element got installed on the
navigation panel. The heating can be
adjusted without phases. The thermostat
is installed on the navigation bulkhead
on the upper left part.

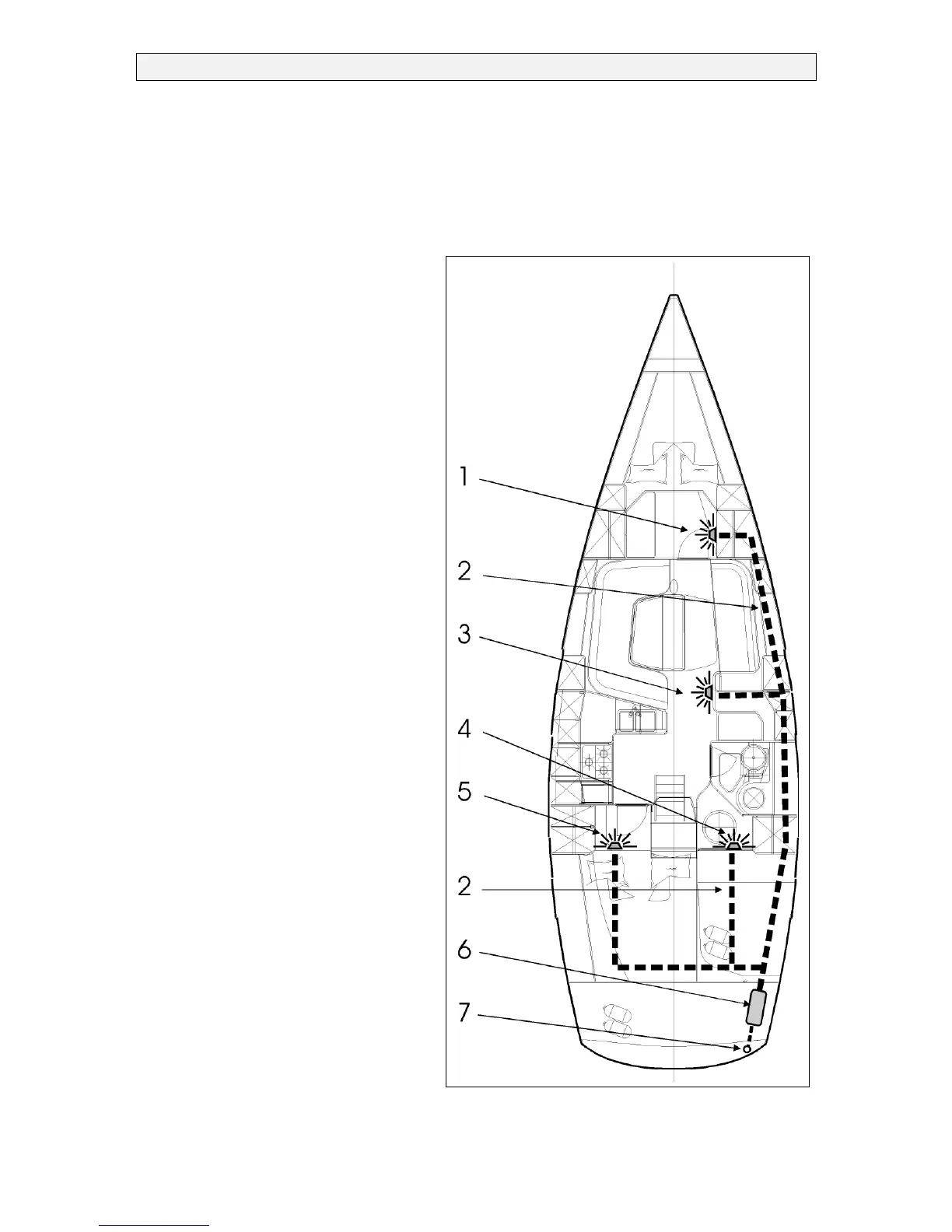

Air distribution of the diesel heating
1 Hot air outlet bow
2 Hot air pipes
3 Hot air outlet cabin
4 Hot air outlet shower room
5 Hot air outlet rear cabin
6 Diesel heating
7 Combustion air outlet
6.3 Dosage pump/Filter
The dosage pump and the fuel filter are
installed behind the diesel tank and are
accessible through the rear cover under
the starboard cabin quilting.
Technical data:
All other data can be found in the
extensive information submitted by the
company Webasto. You should be
correctly informed about the start-up
phase and possible causes of technical
faults.
FIGURE.: ON-BOARD HEATING
