4.6.3 Main data switch board
• Manufacturer.CALIRA Switch board 428
•
Power circuits with thermic safety switches
• Ammeter
• Button switch
• Combined Indicator Voltmeter
for tank indicator Water/Diesel + waste water tank (optional)
• 12 Volt plug
HINT
The lights on the switch board are no functional lights but only control lights to
see if a switch circuit is switched on. You should regularly check the navigation
lights!
Direct current consumers
The main circuits are the following:
Navigation lights Refrigeration unit for cool-box
Water pumps Engine instruments/Tank indicator
FM –Radio/ Car radio Electronic navigation instruments
Comfort consumers Bilge pumps Shower/Bilge
Anchor winch Automatic pilot system

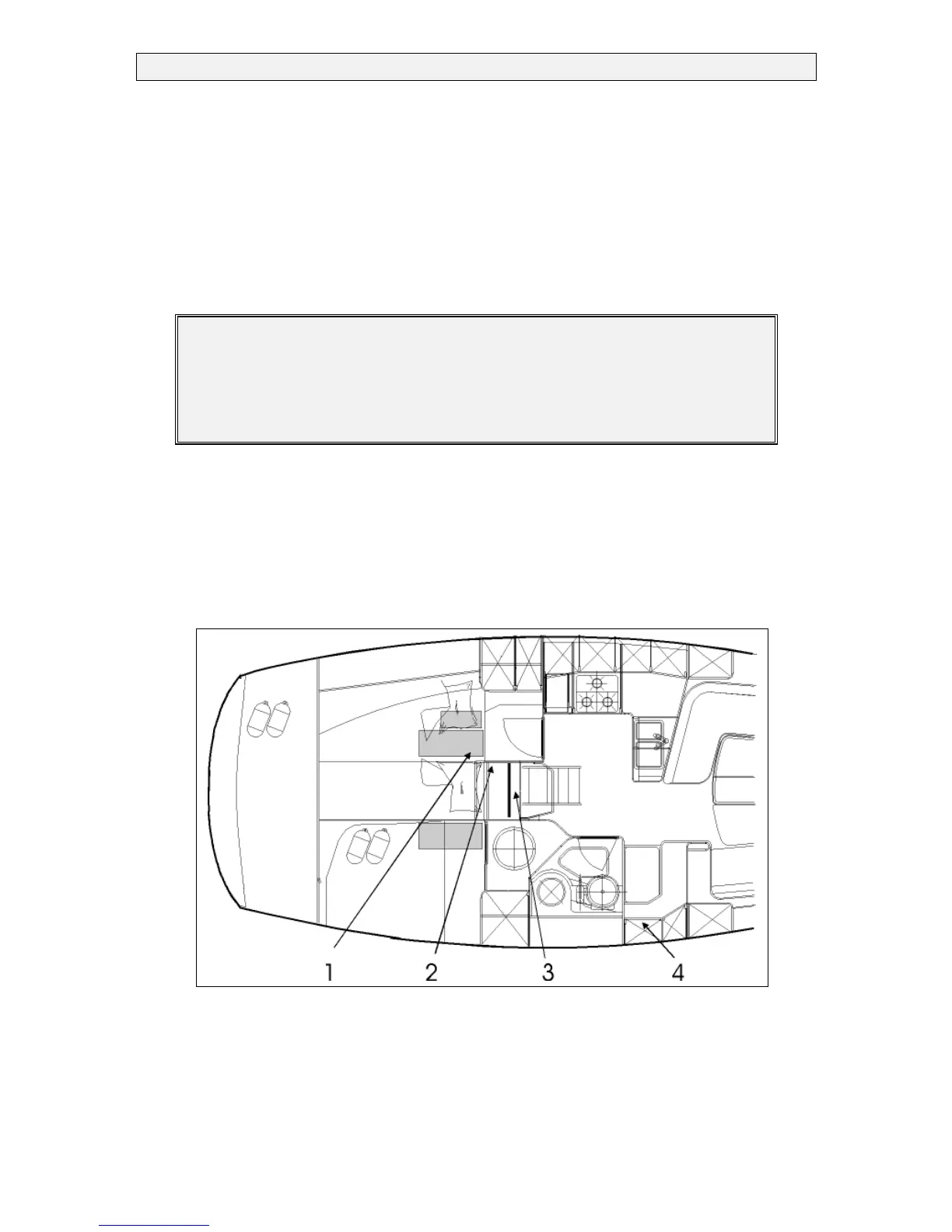

FIGURE: FUSE LOCATIONS
Fuse locations
1 = Flying fuses in steering cable 2 = Ventilator fuse in engine room
3 = Main fuses 4 = Thermofuses switch board
